IC MTR DRV BIPOLR 4.5-36V 20SOIC
L293DD is a push-pull four channel driver with diodes. This article mainly introduces pinout, datasheet, features and other details about L293DD.
L293DD Channel Driver: Pinout, Datasheet and Features
IC MTR DRV BIPOLR 4.5-36V 20SOIC L293DD is a push-pull four channel driver with diodes.
121
Jul 22, 2021
Janice Daniell
L293DD
10In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.57462 | $7.57 |
| 10+ | $7.14587 | $71.46 |
| 100+ | $6.74139 | $674.14 |
| 500+ | $6.3598 | $3179.9 |
| 1000+ | $5.99981 | $5999.81 |
Unit Price:$7.57462
Subtotal: $7.57
Quick Links
L293DD Pinout
L293DD Description
The L293DD is a monolithic integrated high voltage, high current four channel driver designed toaccept standard DTL or TTL logic levels and driveinductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.
This device is suitable for use in switching applications at frequencies up to 5 kHz. The L293D is assembled in a 16 lead plastic packaage which has 4 center pins connected to gether and used for heatsinking The L293DD is assembled in a 20 lead surface mount which has 8 center pins connected to gether and used for heatsinking.
L293DD CAD Model
Symbol
Footprint
3D Model
Specifications
STMicroelectronics L293DD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L293DD.
L293DD Tech Specifications
L293DD Tech Specifications
STMicroelectronics L293DD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L293DD.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 10 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-SOIC (0.295, 7.50mm Width) | |
| Number of Pins | 20Pins | |
| Voltage Rated | 50V | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| Tolerance | 1% | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 20Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 15kOhm | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Applications | General Purpose | |
| Power Rating | 100mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 4.5V~36V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 250 | |
| Supply Voltage | 5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | L293 | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Case Code (Metric) | 1608 | |
| Case Code (Imperial) | 0603 | |
| Max Output Current | 1.2A | |
| Operating Supply Voltage | 24V | |
| Number of Channels | 4Channels | |
| Interface | Parallel | |
| Nominal Supply Current | 2mA | |
| Output Configuration | Half Bridge (4) | |
| Output Characteristics | 3-STATE | |
| Output Current per Channel | 600mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Collector Emitter Voltage (VCEO) | 36V | |
| Max Collector Current | 1.2A | |
| Output Polarity | TRUE | |
| Input Characteristics | STANDARD | |
| Voltage - Load | 4.5V~36V | |
| Output Peak Current Limit-Nom | 1.2A | |
| Supply Voltage1-Nom | 24V | |
| Built-in Protections | THERMAL | |
| Motor Type | Brushed | |
| Output Current Flow Direction | SOURCE SINK | |
| Motor Type - AC, DC | Brushed DC | |
| Motor Type - Stepper | Bipolar | |
| Height | 450μm | |
| Length | 1.6mm | |
| Width | 800μm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
L293DD Features
-
600mA OUTPUT CURRENT CAPABILITY
-
PER CHANNEL
-
1.2A PEAK OUTPUT CURRENT (non repetitive) PER CHANNEL
-
ENABLE FACILITY
-
OVERTEMPERATURE PROTECTION
-
LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V
-
(HIGH NOISE IMMUNITY)
-
INTERNAL CLAMP DIODES
L293DD Circuit Diagram
L293DD Applications
-
DC motor drivers.
-
Relay drivers.
-
Stepper motor drivers.
-
Two phase motor driver, block diagram of L 293D application for two phase motor is given in the figure shown below.

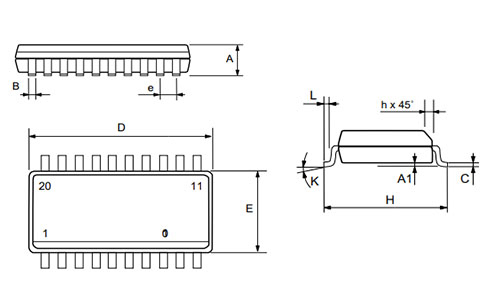

L293DD Dimension Outline
L293DD Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics L293DD.
L293DD Documents
L293DD Documents
Download datasheets and manufacturer documentation for L293DD
Frequently Asked Questions
What is l293d?
The L293D is a popular 16-Pin Motor Driver IC. As the name suggests it is mainly used to drive motors. A single L293D IC is capable of running two DC motors at the same time; also the direction of these two motors can be controlled independently.
How does a L293D work?
L293D IC is a typical Motor Driver IC which allows the DC motor to drive on any direction. This IC consists of 16-pins which are used to control a set of two DC motors instantaneously in any direction. It means, by using a L293D IC we can control two DC motors. As well, this IC can drive small and quiet big motors.
How do I program a L293D?
Place the L293D in the center of the breadboard, with half of the pins on either side of the breadboard. Connect 5V to Enable 1 , Vss , and Vs on the L293D. Connect digital output pins (we're using 6 and 7) to input 1 and input 2 on the L293D.
What is the use of L293D motor driver?
The L293D is a 16-pin Motor Driver IC which can control a set of two DC motors simultaneously in any direction. The L293D is designed to provide bidirectional drive currents of up to 600 mA (per channel) at voltages from 4.5 V to 36 V (at pin 8!). You can use it to control small dc motors - toy motors.
Which is better L293D vs L298N?
The key differences between the L293D and the L298 are these: the L298 supports higher currents (up to 4 A with proper heat sink), the L293D is limited to 600 mA. the L298 has a higher operating voltage (up to 46 V), the L293D is limited to 36 V.
FAQ
What is l293d?
The L293D is a popular 16-Pin Motor Driver IC. As the name suggests it is mainly used to drive motors. A single L293D IC is capable of running two DC motors at the same time; also the direction of these two motors can be controlled independently.
How does a L293D work?
L293D IC is a typical Motor Driver IC which allows the DC motor to drive on any direction. This IC consists of 16-pins which are used to control a set of two DC motors instantaneously in any direction. It means, by using a L293D IC we can control two DC motors. As well, this IC can drive small and quiet big motors.
How do I program a L293D?
Place the L293D in the center of the breadboard, with half of the pins on either side of the breadboard. Connect 5V to Enable 1 , Vss , and Vs on the L293D. Connect digital output pins (we're using 6 and 7) to input 1 and input 2 on the L293D.
What is the use of L293D motor driver?
The L293D is a 16-pin Motor Driver IC which can control a set of two DC motors simultaneously in any direction. The L293D is designed to provide bidirectional drive currents of up to 600 mA (per channel) at voltages from 4.5 V to 36 V (at pin 8!). You can use it to control small dc motors - toy motors.
Which is better L293D vs L298N?
The key differences between the L293D and the L298 are these: the L298 supports higher currents (up to 4 A with proper heat sink), the L293D is limited to 600 mA. the L298 has a higher operating voltage (up to 46 V), the L293D is limited to 36 V.
