STMICROELECTRONICS L6235D DC MOTOR DRIVER THREE-PHASE, SMD The L6235 device is a DMOS fully integrated 3-phase motor driver. This post will cover its datasheet, pinout and more detailed information about L6235. Furthermore, there is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
405
Sep 26, 2021
Fanny Sande
STMICROELECTRONICS L6235D DC MOTOR DRIVER THREE-PHASE, SMD
The L6235 device is a DMOS fully integrated 3-phase motor driver. This post will cover its datasheet, pinout and more detailed information about L6235. Furthermore, there is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
L6235D
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $18.68643 | $18.69 |
| 10+ | $17.62871 | $176.29 |
| 100+ | $16.63086 | $1663.09 |
| 500+ | $15.68949 | $7844.75 |
| 1000+ | $14.80141 | $14801.41 |

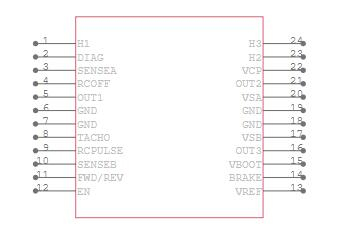

L6235 Symbol
L6235 Footprint
L6235 3D Model
The L6235 device is a DMOS fully integrated 3-phase motor driver with overcurrent protection. Realized in BCDtechnology, the device combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip.
The device includes all the circuitry needed to drive a 3-phase BLDC motor including a 3-phase DMOS bridge, a constant off-time PWM current controller and the decoding logic for single-ended hall sensors that generate the required sequence for the power stage.
STMicroelectronics L6235D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L6235D.
STMicroelectronics L6235D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L6235D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-SOIC (0.295, 7.50mm Width) | |
| Number of Pins | 24Pins | |
| Operating Temperature | -25°C~125°C TJ | |
| Packaging | Tube | |
| Series | STSPIN L62 | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 24Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Applications | General Purpose |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 12V~52V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 250 | |
| Supply Voltage | 48V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | L6235 | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Number of Outputs | 3Outputs | |
| Output Voltage | 52V | |
| Operating Supply Voltage | 42V | |
| Supply Voltage-Min (Vsup) | 8V | |
| Interface | Parallel | |
| Analog IC - Other Type | BRUSHLESS DC MOTOR CONTROLLER | |
| Nominal Supply Current | 6mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Configuration | Half Bridge (3) | |
| Output Current-Max | 5.6A | |
| Supply Current-Max (Isup) | 10mA | |
| Collector Emitter Voltage (VCEO) | 52V | |
| Max Collector Current | 2.8A | |
| Voltage - Load | 12V~52V | |
| Motor Type | Brushless DC (BLDC) | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Height | 2.35mm | |
| Length | 15.6mm | |
| Width | 7.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Operating supply voltage from 8 to 52 V
5.6 A output peak current (2.8 A DC)
RDS(ON) 0.3 Ω typ. value at Tj = 25 °C
Operating frequency up to 100 KHz
non-dissipative overcurrent detection and protection
Diagnostic output
Constant tOFF PWM current controller
Slow decay synchr. rectification
60° and 120° hall effect decoding logic
Brake function
Tachometer output for speed loop
Cross conduction protection
Thermal shutdown
Undervoltage lockout
Integrated fast freewheeling diodes
L6235 Block Diagram
The L6235 is a three-phase embedded DMOS motor driver with built-in over-current protection. The device, which uses BCD technology, combines the advantages of isolated DMOS power transistors with CMOS and bipolar circuits in a single device.
L6235 Application Circuit
The typical application circuit for L6235 is shown above which appears to be relatively simple in terms of implementation processes.
Simply connect the illustrated pieces and use the design to control any BLDC motor with sensors ranging from 8 to 50 volts at 3 amps.
STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivalled silicon and system expertise, strong manufacturing strength, IP portfolio, and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products have a positive effect in realizing today's convergence trends.
Note: More details can be found at the L6235 BLDC Motor Controller datasheet shown below.
Download datasheets and manufacturer documentation for STMicroelectronics L6235D.
Download datasheets and manufacturer documentation for L6235D
