STMICROELECTRONICS - L7806CV - Linear Voltage Regulator, 7806, Fixed, Positive, 11V To 35V In, 6V And 1.5A Out, TO-220-3
359
Aug 13, 2021
Gavin Clarissa
How to make a Pocket Power bank Using the L7805 Voltage regulator
STMICROELECTRONICS - L7806CV - Linear Voltage Regulator, 7806, Fixed, Positive, 11V To 35V In, 6V And 1.5A Out, TO-220-3
The L7806CV is a three-terminal positive Voltage Regulator available in the TO-220 package. It has a fixed output voltage, making it useful in a wide range of applications.
L7806CV
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.51504 | $0.52 |
| 10+ | $0.48589 | $4.86 |
| 100+ | $0.45839 | $45.84 |
| 500+ | $0.43244 | $216.22 |
| 1000+ | $0.40796 | $407.96 |
The L7806CV is a three-terminal positive voltage regulator available in the TO-220 package. It has a fixed output voltage, making it useful in a wide range of applications. The L7806CV can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. It embeds internal current limiting, thermal shut-down, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, the L7806CV can deliver over 1A output current. Although designed primarily as a fixed voltage regulator, the L7806CV can also be used with external components to obtain adjustable voltage and currents.
Symbol
Footprint
3D Model
Output current up to 1.5 A
Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
Thermal overload protection
Short circuit protection
Output transition SOA protection
2 % output voltage tolerance (A version)
Guaranteed in the extended temperature range (A version)
STMicroelectronics L7806CV technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L7806CV.
STMicroelectronics L7806CV technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L7806CV.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 24 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 2.299997g | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Tube | |
| Tolerance | 5% | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | SINGLE | |
| Number of Functions | 1Function | |
| Base Part Number | L7806 | |
| Pin Count | 3 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 35V | |
| Output Voltage | 6V | |
| Output Type | Fixed | |
| Max Output Current | 1.5A | |
| Output Configuration | Positive | |
| Quiescent Current | 8mA | |
| Output Voltage 1 | 6V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 8V | |
| Protection Features | Over Temperature, Short Circuit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Dropout (Max) | 2V @ 1A Typ | |
| PSRR | 59dB (120Hz) | |
| Dropout Voltage | 2V | |
| Dropout Voltage1-Nom | 2V | |
| Min Output Voltage | 6V | |
| Power Supply Rejection Ratio (PSRR) | 59dB | |
| Nominal Output Voltage | 6V | |
| Height | 9.15mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

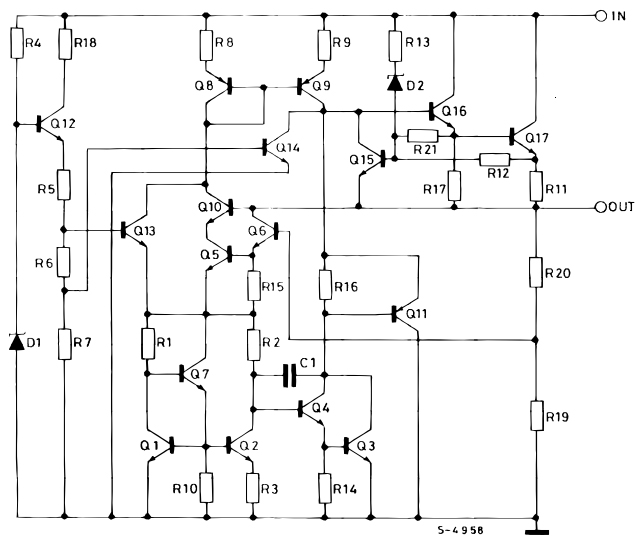

L7806CV DC Parameter
L7806CV Load Regulation
L7806CV Ripple Rejection
Power Management
Constant +6V output regulator to power microcontrollers and sensors in most of the projects
Adjustable Output Regulator
Current Limiter for certain applications
Regulated Dual Supply
Output Polarity-Reversal-Protection Circuit
L7806CV Fixed Output Regulator
Note: 1. Although no output capacitor is needed for stability, it does improve transient response.
2. Required if the regulator is located at an appreciable distance from the power supply filter.
L7806CV Current Regulator
L7806CV Circuit for Increasing Output Voltage
L7806CV High Current Voltage Regulator

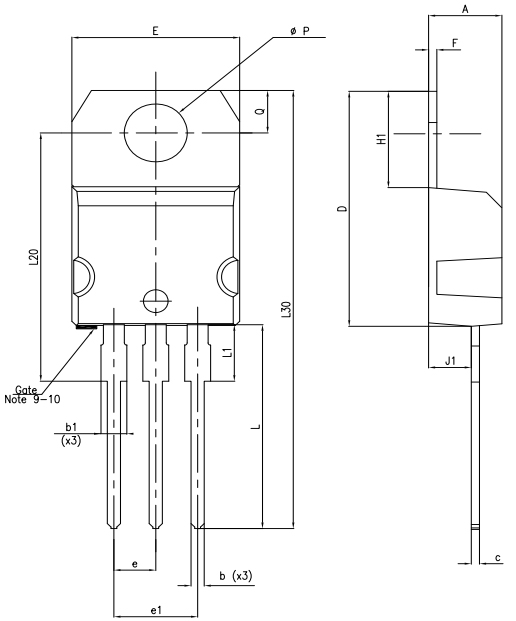

L7806CV Package Outline
L7806CV Mechanical Data
L7806CV Tube
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics L7806CV.
Download datasheets and manufacturer documentation for L7806CV
