STMICROELECTRONICS - L7809CV - IC, V REG +9.0V, 7809, TO-220-3 The L78 series of three-terminal positive regulators are available in package types of TO-220, to-220FP, D2PAK and DPAK.
501
Jan 28, 2022
Winston Ann
What is IC Regulator | Advantages of Voltage Regulator | Electronic Devices & Circuits
STMICROELECTRONICS - L7809CV - IC, V REG 9.0V, 7809, TO-220-3
The L78 series of three-terminal positive regulators are available in package types of TO-220, to-220FP, D²PAK and DPAK. The fixed output voltage enables it to be widely used. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
L7809CV
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.28817 | $1.29 |
| 10+ | $1.21525 | $12.15 |
| 100+ | $1.14646 | $114.65 |
| 500+ | $1.08157 | $540.79 |
| 1000+ | $1.02035 | $1020.35 |
The following figure is the diagram of L7809CV pinout.
Pinout
The followings are L7809CV Symbol, Footprint, and 3D Model.
PCB Symbol
PCB Footprint
3D Model
The L78 series of three-terminal positive regulators are available in package types of TO-220, to-220FP, D²PAK and DPAK. The fixed output voltage enables it to be widely used. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
This article provides you with a basic overview of the L7809CV Positive Voltage Regulator ICs, including its pin descriptions, features and specifications, etc., to help you quickly understand what L7809CV is.
● Output current up to 1.5 A
● Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
● Thermal overload protection
● Short circuit protection
● Output transition SOA protection
● 2% output voltage tolerance (A version)
● Guaranteed in extended temperature range (A version)
STMicroelectronics L7809CV technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L7809CV.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 24 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Tube | |
| Tolerance | 5% | |
| JESD-609 Code | e3 | |
| Part Status | ACTIVE (Last Updated: 6 months ago) | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | SINGLE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Base Part Number | L7809 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 35V | |
| Output Type | Fixed | |
| Current - Output (Max) | 1.5A | |
| Output Configuration | Positive | |
| Quiescent Current | 8mA | |
| Accuracy | 2 % | |
| Voltage - Output | 9V | |
| Output Voltage 1 | 9V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 11V | |
| Protection Features | Over Temperature, Short Circuit | |
| Voltage Dropout (Max) | 2V @ 1A Typ |
| Product Attribute | Attribute Value | |
|---|---|---|
| PSRR | 55dB (120Hz) | |
| Dropout Voltage | 2V | |
| Dropout Voltage1-Nom | 2V | |
| Min Output Voltage | 9V | |
| Power Supply Rejection Ratio (PSRR) | 55dB | |
| Nominal Output Voltage | 9V | |
| Height | 14.9mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Block Diagram of L7809CV.
Block diagram
The following is the Schematic Diagram of L7809CV.
Schematic diagram
The following diagrams show the L7809CV package.

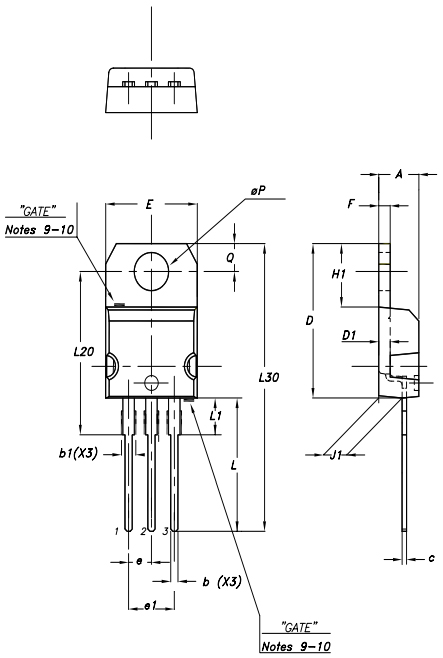

TO-220 (single gauge) package outline

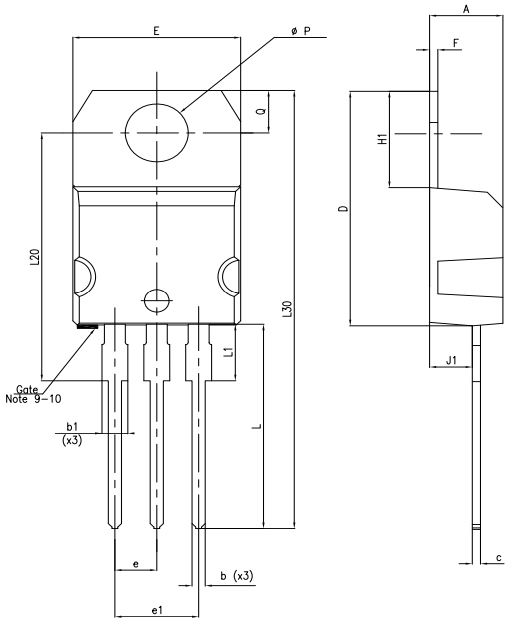

TO-220 (dual gauge) package outline
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for L7809CV
