L7812CV Voltage Regulator: Pinout, Datasheet, and Schematic Diagram

STMICROELECTRONICS L7812CVLinear Voltage Regulator, Fixed, Positive, 19V To 35V In, 12V And 1.5A Out, TO-220-3

5601

Jun 25, 2021

Myra Landon

L7812CV



STMICROELECTRONICS L7812CVLinear Voltage Regulator, Fixed, Positive, 19V To 35V In, 12V And 1.5A Out, TO-220-3

The L7812CV is a three-terminal positive voltage regulator that provides local on-card regulation and eliminates the distribution problems associated with single point regulation.

L7812CV

81150In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.0482$1.05
10+ $0.98887$9.89
100+ $0.9329$93.29
500+ $0.88009$440.05
1000+ $0.83027$830.27
3000+ $0.78328$2349.84
Unit Price:$1.0482
Subtotal: $1.05
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

L7812CV Description

The L7812CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The L7812CV embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1 A output current. Although designed primarily as a fixed voltage regulator, the L7812CV can be used with external components to obtain adjustable voltage and currents.

L7812CV Pinout

L7812CV CAD Model

Symbol



Footprint



3D Model

L7812CV Features

  • Output current up to 1.5 A

  • Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

  • Thermal overload protection

  • Short circuit protection

  • Output transition SOA protection

  • 2 % output voltage tolerance (A version)

  • Guaranteed in extended temperature range (A version)

Specifications

STMicroelectronics L7812CV technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L7812CV.

L7812CV Tech Specifications

STMicroelectronics L7812CV technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L7812CV.

Product Attribute Attribute Value
Factory Lead Time24 Weeks
Contact PlatingTin
MountThrough Hole
Mounting TypeThrough Hole
Package / CaseTO-220-3
Number of Pins3Pins
Weight2.299997g
Operating Temperature0°C~125°C
PackagingTube
Tolerance5%
JESD-609 Codee3
Part StatusACTIVE (Last Updated: 7 months ago)
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations3Terminations
Product Attribute Attribute Value
Terminal PositionSINGLE
Number of Functions1Function
Base Part NumberL7812
Voltage - Input (Max)35V
Output TypeFixed
Current - Output (Max)1.5A
Output ConfigurationPositive
Quiescent Current8mA
Voltage - Output12V
Output Voltage 112V
Number of Regulators1Regulator
Min Input Voltage14V
Protection FeaturesOver Temperature, Short Circuit
Voltage Dropout (Max)2V @ 1A Typ
Product Attribute Attribute Value
PSRR55dB (120Hz)
Dropout Voltage2V
Dropout Voltage1-Nom2V
Min Output Voltage12V
Power Supply Rejection Ratio (PSRR)55dB
Nominal Output Voltage12V
Height9.15mm
Length10.4mm
Width4.6mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

L7812CV Functional Block Diagram

L7812CV Schematic Diagram

L7812CV Test Circuits

DC Parameter





Load Regulation





Ripple Rejection





L7812CV Functional Alternatives

L7812CV Applications

  • Constant +12V output regulator to power microcontrollers and sensors in most of the projects

  • Adjustable Output Regulator

  • Current Limiter for certain applications

  • Regulated Dual Supply

  • Output Polarity-Reversal-Protection Circuit



L7812CV Application Circuit

Fixed Output Regulator

L7812CV Package

Package Outline

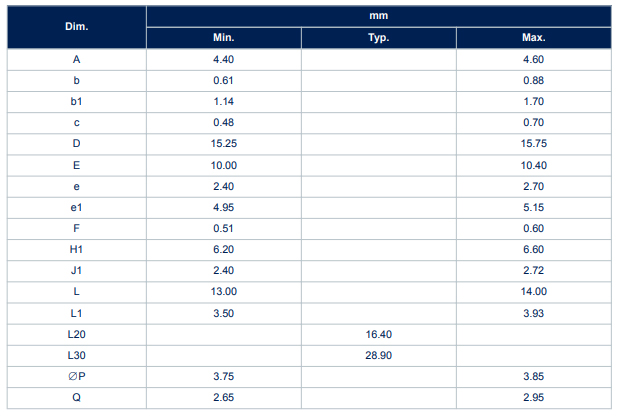

Package Mechanical Data





L7812CV Manufacturer

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.



Datasheet PDF

Download datasheets and manufacturer documentation for STMicroelectronics L7812CV.

L7812CV Documents

Download datasheets and manufacturer documentation for L7812CV

Frequently Asked Questions

1.What is L7812CV?
The L7812CV is a three-terminal positive voltage regulator. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.
2.What is the difference between fixed voltage regulator and adjustable regulator?
Adjustable Voltage regulators require a very few external components to achieve its operation. Fixed voltage regulators require almost no external components (may be a couple of bypass capacitors). At low cost you have a wide range of voltage and current selection.
3.Will a L78S12CV be cooler than a L7812CV when handling the same load?
The performance characteristics, such as Output voltage vs. junction temperature, is identical for both. The operating (junction) temperature is different, 7812 is 0-125°C; 78S12 is 0-150°C. In both cases, in a TO-220 package, the thermal resistance is the same: 5°C/W for junction-case, and 50°C/W for junction-ambient. Based on this information, I would not expect the 78S12 to run cooler given the same load and heatsink. But it can handle higher operating temperatures, which may be a reason to favor it.
4.How to wire the L7812CV regulator IC?
If it is packaged as TO-220, the identification method is to face the side with the words to yourself, and the pins downwards. Count 123 from left to right. Pin 1 is input, pin 2 is ground, and pin 3 is output. 78 Series of voltage regulator chips must be DC input, if the input and output are reversed, the chip will be burnt. In addition, the input DC voltage should not be too high.
FAQ
1.What is L7812CV?
The L7812CV is a three-terminal positive voltage regulator. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.
2.What is the difference between fixed voltage regulator and adjustable regulator?
Adjustable Voltage regulators require a very few external components to achieve its operation. Fixed voltage regulators require almost no external components (may be a couple of bypass capacitors). At low cost you have a wide range of voltage and current selection.
3.Will a L78S12CV be cooler than a L7812CV when handling the same load?
The performance characteristics, such as Output voltage vs. junction temperature, is identical for both. The operating (junction) temperature is different, 7812 is 0-125°C; 78S12 is 0-150°C. In both cases, in a TO-220 package, the thermal resistance is the same: 5°C/W for junction-case, and 50°C/W for junction-ambient. Based on this information, I would not expect the 78S12 to run cooler given the same load and heatsink. But it can handle higher operating temperatures, which may be a reason to favor it.
4.How to wire the L7812CV regulator IC?
If it is packaged as TO-220, the identification method is to face the side with the words to yourself, and the pins downwards. Count 123 from left to right. Pin 1 is input, pin 2 is ground, and pin 3 is output. 78 Series of voltage regulator chips must be DC input, if the input and output are reversed, the chip will be burnt. In addition, the input DC voltage should not be too high.
