L78S05CV: 35V, Heatsink, Pinout and Datasheet

The L78S05CV  is available in the TO-220  package and has several fixed output voltages, making it useful in a wide range of applications. The L78S05CV  can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Each type embeds internal current limiting, thermal shut-down, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 2  A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

L78S05CV Symbol

L78S05CV Footprint

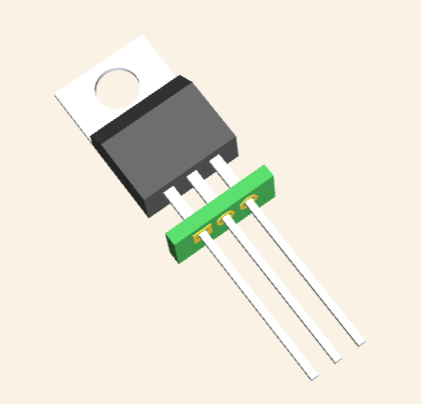

L78S05CV 3D Model

L78S05CV Application circuits

• Output current up to 2 A

• Output voltages of 5; 7.5; 9; 10; 12; 15; 18; 24 V

• Thermal protection

• Short circuit protection

• Output transition SOA protection

In order to meet environmental requirements, ST  offers these devices in different grades of ECOPACK  ® packages, depending on their level of environmental compliance.
