L7912CV Voltage Regulators: Features, Pinout, and Datasheet

PMIC - Voltage Regulators - Linear TO-220-3 0°C~125°C L7912 Over Temperature, Short Circuit 60dB (120Hz) 3mA STMICROELECTRONICS L7912CVFixed LDO Voltage Regulator, -19V to -35V, 1.1V Dropout, -12Vout, 1.5Aout, TO-220-3

346

Oct 21, 2021

Olga Chaplin

Negative voltage regulator//7905 ic.7912 ic.7915 ic. Regulator ic//#electronicsverma



PMIC - Voltage Regulators - Linear TO-220-3 0°C~125°C L7912 Over Temperature, Short Circuit 60dB (120Hz) 3mA STMICROELECTRONICS L7912CVFixed LDO Voltage Regulator, -19V to -35V, 1.1V Dropout, -12Vout, 1.5Aout, TO-220-3

The three-terminal negative regulator L7912CV is available in TO-220, TO-220FP, and D²PAK packages. This article mainly introduces features, pinout, datasheet and other information about STMicroelectronics L7912CV.

L7912CV

30000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.32828$1.33
10+ $1.25309$12.53
100+ $1.18216$118.22
500+ $1.11525$557.63
1000+ $1.05212$1052.12
Unit Price:$1.32828
Subtotal: $1.33
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

L7912CV Description

The three-terminal negative regulator L7912CV is available in TO-220, TO-220FP, and D²PAK packages, as well as a variety of fixed output voltages, making it suitable for a wide range of applications. These regulators can provide local on-card regulation, which eliminates the distribution issues that single-point regulation causes.

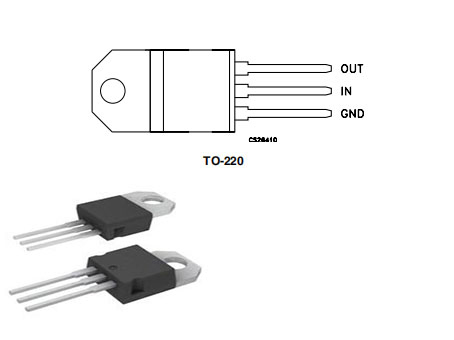

L7912CV Pinout

L7912CV CAD Model

Symbol

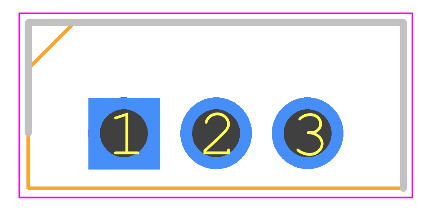

Footprint

3D Model

L7912CV Features

• Output current up to 1.5 A

• Output voltages of - 5; - 8; - 12; - 15 V

• Thermal overload protection

• Short circuit protection

• Output transition SOA protection



Specifications

L7912CV Tech Specifications

STMicroelectronics L7912CV technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics L7912CV.

Product Attribute Attribute Value
Factory Lead Time24 Weeks
Contact PlatingTin
MountThrough Hole
Mounting TypeThrough Hole
Package / CaseTO-220-3
Number of Pins3Pins
Weight6.000006g
Operating Temperature0°C~125°C
PackagingTube
Tolerance4%
JESD-609 Codee4
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations3Terminations
ECCN CodeEAR99
Product Attribute Attribute Value
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Terminal PositionSINGLE
Number of Functions1Function
Terminal Pitch2.54mm
Base Part NumberL7912
Pin Count3
Number of Outputs1Output
Voltage - Input (Max)-35V
Output Voltage-12V
Output TypeFixed
Max Output Current1.5A
Output ConfigurationNegative
Quiescent Current3mA
Output Voltage 112V
Number of Regulators1Regulator
Product Attribute Attribute Value
Min Input Voltage-14.5V
Protection FeaturesOver Temperature, Short Circuit
Voltage Dropout (Max)1.1V @ 1A Typ
PSRR60dB (120Hz)
Dropout Voltage1.1V
Dropout Voltage1-Nom1.1V
Power Supply Rejection Ratio (PSRR)60dB
Nominal Output Voltage-12V
Height9.15mm
Length10.4mm
Width4.6mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

L7912CV Schematic Diagram

Schematic Diagram

L7912CV Test Circuit

Test Circuit

L7912CV Application Information

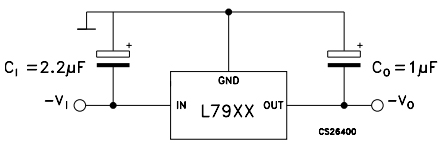

Fixed Output Regulator



1. Substitute voltage value for "XX" to select an output voltage.

2. It is necessary for stability. A solid tantalum capacitor must be used for the stated value. If aluminum electrolytes are utilized, a value of at least 10 times should be chosen. If the regulator is positioned at a significant distance from the power supply filter, C1 is necessary.

3. Enhance transient responsiveness A high current diode from input to output (1N4001 or similar) should be used if big capacitors are utilized to safeguard the device from a momentary input short circuit.



Split power supply (± 15 V - 1 A)





Circuit for increasing output voltage





High current negative regulator (- 5 V / 4 A with 5 A current limiting)

L7912CV Alternatives

Part Number Description Manufacturer
M38510/11501BXXPOWER CIRCUITS IC VREG 5 V FIXED NEGATIVE REGULATOR, MBCY3, Fixed Negative Single Output Standard Regulator Defense Supply Center Columbus
5962-8874701UAPOWER CIRCUITS Fixed Negative Standard Regulator, 12V, BIPolar, TO-257, 3 PIN Microsemi Corporation
5962-8874801YXPOWER CIRCUITS Fixed Negative Standard Regulator, 15V, MBFM2, METAL, TO-3, 2 PIN Omnirel Corp
LM120H-12/883BPOWER CIRCUITS 12V FIXED NEGATIVE REGULATOR, MBCY3 Texas Instruments
5962-8874801NXPOWER CIRCUITS IC VREG 15 V FIXED NEGATIVE REGULATOR, CBCC3, HERMETIC SEALED, SMT-3, Fixed Negative Single Output Standard Regulator Defense Supply Center Columbus
IP7912AGPOWER CIRCUITS 12V FIXED NEGATIVE REGULATOR, PSFM3, TO-257, 3 PIN TT Electronics Power and Hybrid / Semelab Limited
IP1R19K-12-BSS2POWER CIRCUITS 12V FIXED NEGATIVE REGULATOR, MBFM2, TO-3, 3 PIN TT Electronics Power and Hybrid / Semelab Limited
IP120AIG-05R1POWER CIRCUITS Fixed Negative Standard Regulator, 5V, PSFM3, ISOLATED, TO-257, 3 PIN TT Electronics Resistors
IP120G-12-883BR1POWER CIRCUITS Fixed Negative Standard Regulator, 12V, MSFM3, TO-257, 3 PIN TT Electronics Resistors
LM120H-05-883BPOWER CIRCUITS Fixed Negative Standard Regulator, 5V, MBCY3, TO-39, 3 PIN TT Electronics Resistors

L7912CV Package

Package

L7912CV Manufacturer

STMicroelectronics is a global electronics and semiconductors company headquartered in Plan-les-Oates, Switzerland, near Geneva.

STMicroelectronics technology can be found in places where microelectronics has a positive impact on people's lives. ST chips with the latest advancements are found in a wide range of devices, including automobiles and key fobs, large factory machinery and data center power supplies, washing machines and hard drives, cellphones, and toothbrushes.



Datasheet PDF

L7912CV Documents

Download datasheets and manufacturer documentation for L7912CV

Frequently Asked Questions

1.Is the input voltage of the three-terminal regulator L7912CV positive or negative? What is the approximate input voltage required to output -12v more stably?
The input requirement of the 79 series three-terminal regulator is a negative voltage. In order to ensure stable output voltage, the minimum input voltage is required to be greater than 2V of the output voltage of the regulator. For 7912, it is 14V. The maximum input voltage is the output voltage plus the resistance of the three terminals. The maximum input voltage of the 7912 can reach 52V.
2.What is the difference between L7812CV, L7912CV and LM7812 LM7912?
L7812CV and LM7812 are only different from the manufacturer, other electrical indexes are exactly the same, both output +12V, 1A. L7912CV and LM7912 are also the same, but it outputs a negative voltage, namely -12V.
3.How to judge the pins of L7812CV and L7912CV with a multimeter?
The word 7812 faces itself, the pin is down, from left to right are input, ground, and output; the word 7912 faces itself, the pin is down, and from left to right are ground, input, and output.
FAQ
1.Is the input voltage of the three-terminal regulator L7912CV positive or negative? What is the approximate input voltage required to output -12v more stably?
The input requirement of the 79 series three-terminal regulator is a negative voltage. In order to ensure stable output voltage, the minimum input voltage is required to be greater than 2V of the output voltage of the regulator. For 7912, it is 14V. The maximum input voltage is the output voltage plus the resistance of the three terminals. The maximum input voltage of the 7912 can reach 52V.
2.What is the difference between L7812CV, L7912CV and LM7812 LM7912?
L7812CV and LM7812 are only different from the manufacturer, other electrical indexes are exactly the same, both output +12V, 1A. L7912CV and LM7912 are also the same, but it outputs a negative voltage, namely -12V.
3.How to judge the pins of L7812CV and L7912CV with a multimeter?
The word 7812 faces itself, the pin is down, from left to right are input, ground, and output; the word 7912 faces itself, the pin is down, and from left to right are ground, input, and output.
