LA4440 is a two-channel audio power amplifier IC with inbuilt in dual channels that enable it for stereo and bridge amplifier applications. This article mainly covers pinout, features, datasheet pdf, circuit, and other details about the LA4440 amplifier.
LA4440J-E
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.02835 | $5.03 |
| 10+ | $4.74373 | $47.44 |
| 100+ | $4.47521 | $447.52 |
| 500+ | $4.2219 | $2110.95 |
| 1000+ | $3.98292 | $3982.92 |
The LA4440 is a two-channel audio power amplifier IC with dual channels built-in, making it suitable for stereo and bridge amplifier applications. It produces 6 W per channel in dual mode and 19 W in bridge mode.

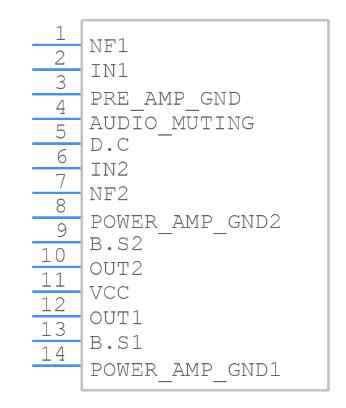

LA4440 Pinout
| Pin No. | PinName |
| 1 | NF1 |
| 2 | IN 1 |
| 3 | Preamp. GND |
| 4 | Audio Muting |
| 5 | DC |
| 6 | IN2 |
| 7 | NF2 |
| 8 | Power AMP GND2 |
| 9 | B.S2 |
| 10 | OUT2 |
| 11 | Vcc |
| 12 | OUT1 |
| 13 | B.S1 |
| 14 | Power AMP GND1 |
LA4440 Symbol
LA4440 Footprint
LA4440 3D Model
ON Semiconductor LA4440J-E technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LA4440J-E.
ON Semiconductor LA4440J-E technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LA4440J-E.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | 14-SIP | |
| Operating Temperature | -20°C~75°C TA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Type | Class AB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 13.2V | |
| Reach Compliance Code | compliant | |
| Output Type | 2-Channel (Stereo) | |
| Max Output Power x Channels @ Load | 6W x 2 @ 4 Ω |

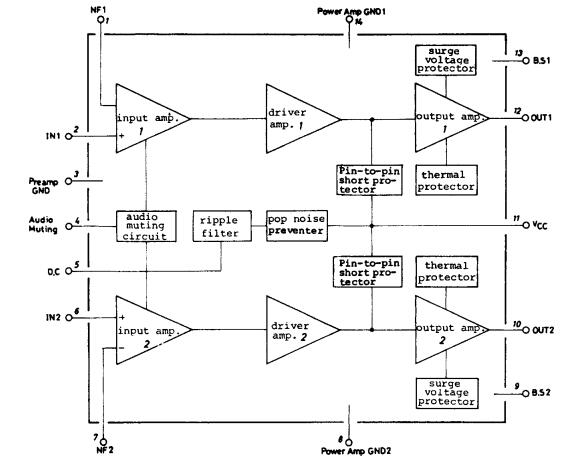

LA4440 Block Diagram
• Built-in 2 channels (dual) enabling use in stereo and bridge amplifier applications.
Dual: 6W×2 (typ.)
Bridge: 19W (typ.)
• Minimum number of external parts required.
• Small pop noise at the time of power supply ON/OFF and good starting balance.
• Good ripple rejection: 46dB (Typ.)
• Good channel separation.
• Small residual noise (Rg=0).
• Low distortion over a wide range from low frequencies to high frequencies.
• Easy to design radiator fin.
• Built-in audio muting function.
• Built-in protectors.
a. Thermal protector
b. Overvoltage, surge voltage protector
c. Pin-to-pin short protector
The LA4440 is used in a wide range of applications including home theatres, car automatic and a variety of other applications, The bass created with this IC is so powerful and gives you a magnificent effect experience.

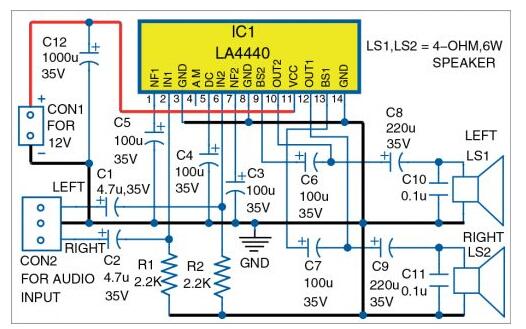

The 6W+6W stereo amplifier's circuit diagram is depicted in Fig. 2. The LA4440 (IC1), two loudspeakers (LS1 and LS2), and a few additional components make up the system.
LA4440 Circuit Diagram
The +12V power supply is connected to pin 11 of IC1. As a filter, the electrolytic capacitor C12 (1000F/35V) is connected between +12V and the ground.
Through electrolytic capacitor C8 (220F/35V), the left speaker (LS1) is linked to pin 10 of IC1. Through electrolytic capacitor C9 (220F/25V), the right speaker (LS2) is connected to pin 12.
The audio input signal is connected via a 3-pin connector (CON2). Capacitor C1 (4.7F/35V) connects the left channel audio input to pin 6 of IC1, while capacitor C2 (4.7F/35V) connects the right channel audio input to pin 2 of IC1.
LA4440 Circuit Diagram

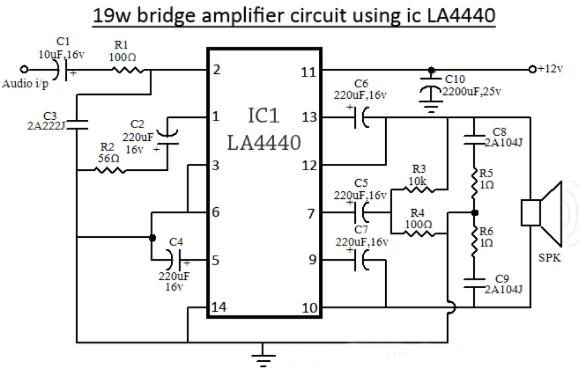

The output power of the IC LA4440 in Bridge mode in the circuit is 19 watts. Use 4–8 speakers in bridge mode. Use two copies of the amplifier circuit below in bridge mode if you want stereo output (19w+19w). R3&R4 are resistors that are used to control the voltage gain and make the input signal for the inverting amplifier.
LA4440 Package Dimensions
