The LD39050 provides a 500 mA maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 200 mV. This article will introduce more details about LD39050PU33R, including Description, Schematic diagram, CAD model, Pin configuration, Features, Typical performance characteristics, Application information, Package information, and so on.
LD39050PU33R
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.33912 | $1.34 |
| 10+ | $1.26332 | $12.63 |
| 100+ | $1.19181 | $119.18 |
| 500+ | $1.12435 | $562.17 |
| 1000+ | $1.06071 | $1060.71 |
The LD39050 provides a 500 mA maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 200 mV. Stability is given by ceramic capacitors. The ultra-low drop voltage, low quiescent current, and low noise features make it suitable for low-power battery-powered applications. Power supply rejection is 65 dB at low frequencies and starts to roll off at 10 kHz. The enable logic control function puts the LD39050 in shutdown mode allowing a total current consumption lower than 1 µA. The device also includes short-circuiting constant current limiting and thermal protection. Typical applications are mobile phones, hard disks, and battery-powered systems.

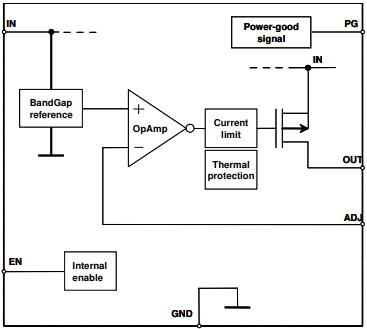

LD39050PU33R Schematic diagram

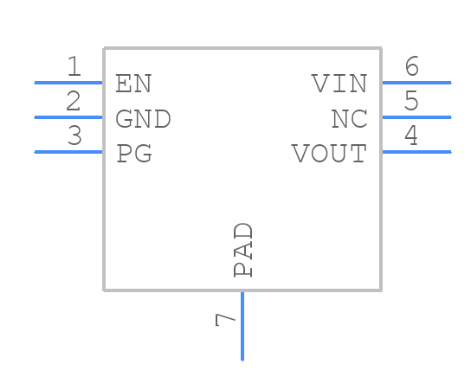

LD39050PU33R Symbol

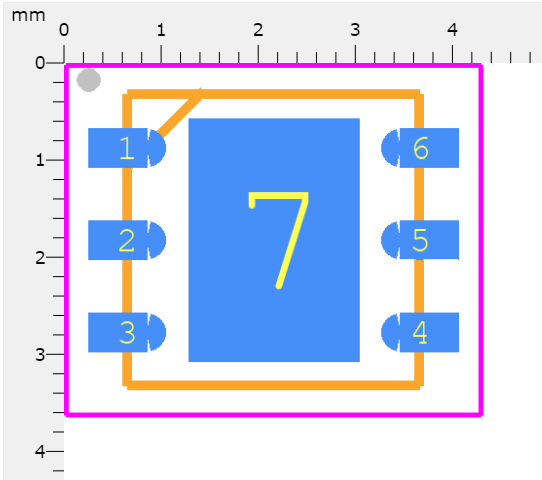

LD39050PU33R Footprint

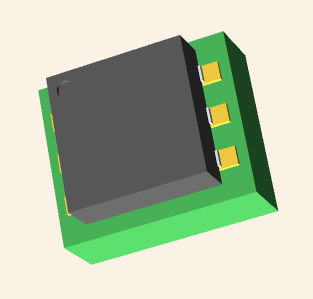

LD39050PU33R 3D Model

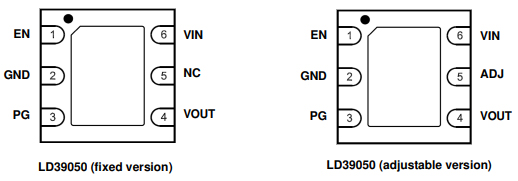

LD39050PU33R Pin configuration
• Input voltage from 1.5 to 5.5 V
• Ultra low-dropout voltage (200 mV typ. at 500
mA load)
• Very low quiescent current (20 µA typ. at no
load, 100 µA typ. at 500 mA load, 1 µA max. in
OFF mode)
• Very low noise without bypass capacitor
• Output voltage tolerance: ± 2.0% @ 25 °C
• 500 mA guaranteed output current
• Wide range of output voltages available on
request: 0.8 V to 4.5 V with 100 mV step and
adjustable from 0.8 V
• Logic-controlled electronic shutdown
• Compatible with ceramic capacitor COUT = 1 µF
• Internal current and thermal limit
• Package DFN6 (3x3 mm) and DFN6 (2x2 mm)
• Temperature range: from -40 °C to 125 °C
STMicroelectronics LD39050PU33R technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LD39050PU33R.
STMicroelectronics LD39050PU33R technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LD39050PU33R.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-VDFN Exposed Pad | |
| Number of Pins | 6Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 | |
| Packing Method | TAPE AND REEL | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Terminal Pitch | 0.95mm | |
| Base Part Number | LD39050 | |
| Pin Count | 6 | |
| Current - Supply (Max) | 200μA | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 5.5V | |
| Output Voltage | 3.3V | |
| Output Type | Fixed | |
| Max Output Current | 500mA | |
| Output Configuration | Positive | |
| Quiescent Current | 50μA | |
| Control Features | Enable, Power Good | |
| Accuracy | 2 % | |
| Output Voltage 1 | 3.3V | |
| Number of Regulators | 1Regulator |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Input Voltage | 1.5V | |
| Protection Features | Over Current, Over Temperature, Short Circuit | |
| Voltage Dropout (Max) | 0.4V @ 500mA | |
| PSRR | 65dB ~ 62dB (1kHz ~ 10kHz) | |
| Dropout Voltage | 400mV | |
| Dropout Voltage1-Nom | 0.2V | |
| Min Output Voltage | 3.3V | |
| Voltage Tolerance-Max | 3% | |
| Input Bias Current | 20μA | |
| Output Voltage Accuracy | 2 % | |
| Length | 3mm | |
| Width | 3mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LD39050PU33R Typical performance characteristics
LD39050PU33R Application information
LD39050PU33R Package information
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for LD39050PU33R
