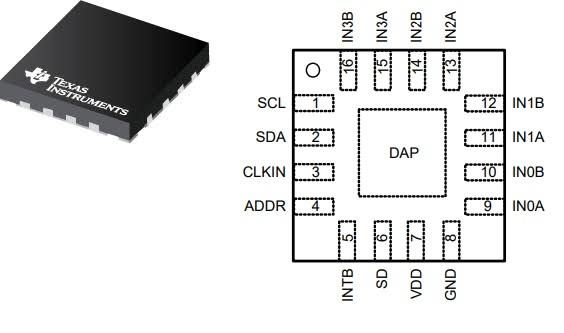

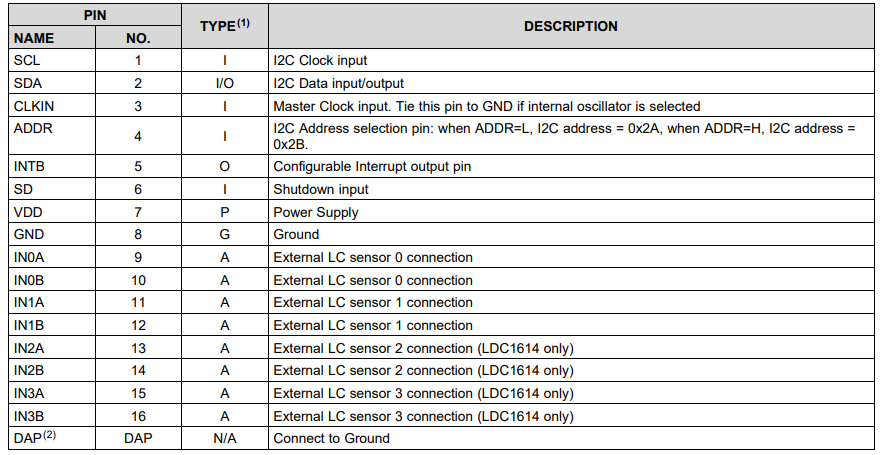

LDC1614RGHT LDC: Pinout, Specification, and Datasheet

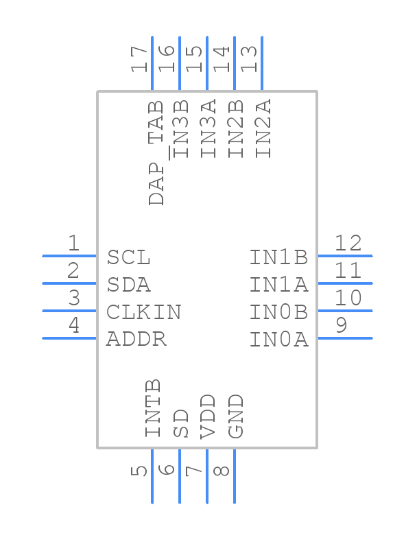

Symbol

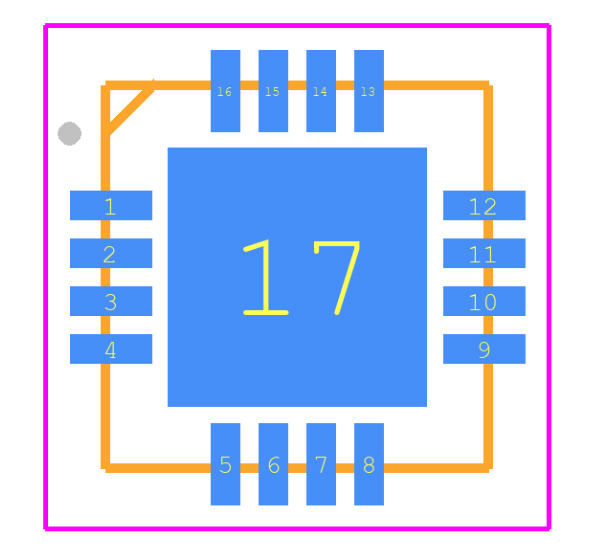

Footprint

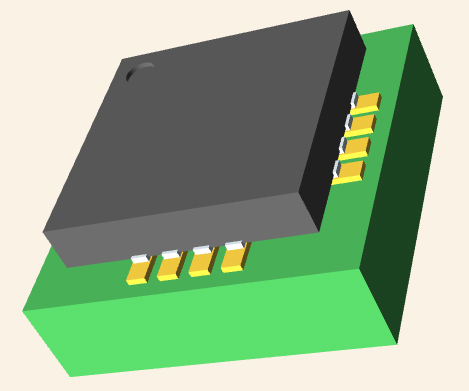

3D Model

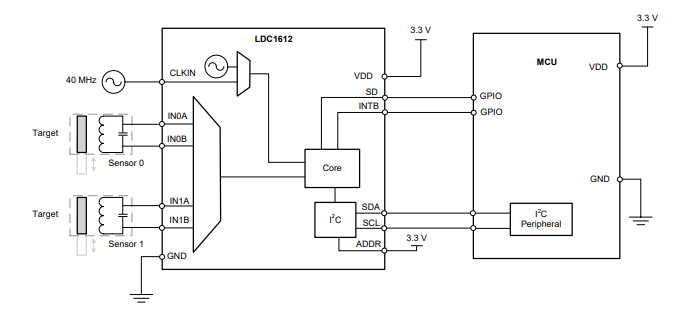

With multiple channels and support for remote sensing, the LDC1614RGHT enables the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. The products are easy to use, only requiring that the sensor frequency is within 1 kHz and 10 MHz to begin sensing. The wide 1 kHz to 10 MHz sensor frequency range also enables the use of very small PCB coils, further reducing sensing solution cost and size.

The high-resolution channels allow for a much larger sensing range, maintaining good performance beyond two coil diameters. Well-matched channels allow for differential and ratiometric measurements, which enable designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity, and aging conditions such as temperature, humidity, and mechanical drift.

Given their ease of use, low power, and low system cost these products enable designers to greatly improve performance, reliability, and flexibility over existing sensing solutions and to introduce brand new sensing capabilities to products in all markets, especially consumer and industrial applications.

These devices are easily configured via an I2C interface. The four-channel LDC1614RGHT is available in a WQFN-16 package.

• Easy-to-use – minimal configuration required

• Measure up to 4 sensors with one IC

• Multiple channels support environmental and aging compensation

• Multi-channel remote sensing provides lowest system cost

• Pin-compatible medium and high-resolution options

– LDC1312/4: 2/4-ch 12-bit LDC

– LDC1612/4: 2/4-ch 28-bit LDC

• Sensing range beyond two coil diameters

• Supports wide sensor frequency range of 1kHz to 10MHz

• Power consumption:

– 35 µA Low Power Sleep Mode

– 200 nA Shutdown Mode

• 3.3V operation

• Support internal or external reference clock

• Immune to DC magnetic fields and magnets

• Knobs in consumer, appliances, and automotive

• Linear and rotational encoders

• Buttons in home electronics, wearables, manufacturing, and automotive

• Keypads in manufacturing and appliances

• Slider buttons in consumer products

• Metal detection in industrial and automotive

• POS and EPOS

• Flow meters in consumer and appliances
