LF353D Operational amplifier: Feature, Specification, and Datasheet

vSTMICROELECTRONICS LF353D Operational Amplifier, Dual, 4 MHz, 2 Amplifier, 16 V/s, 6V to 36V, SOIC, 8 Pins The LF353D is a JFET input operational amplifier with an internally compensated input offset voltage.

111

Jun 14, 2021

Eartha

How to set up a circuit with an op amp (LF353)



STMICROELECTRONICS LF353D Operational Amplifier, Dual, 4 MHz, 2 Amplifier, 16 V/s, 6V to 36V, SOIC, 8 Pins

The LF353D is a JFET input operational amplifier with an internally compensated input offset voltage.

LF353D

50In Stock
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

LF353D CAD Model

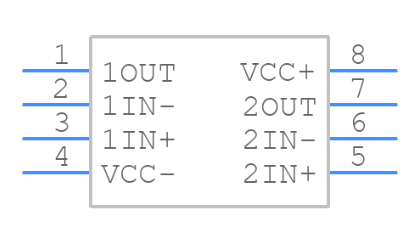

Symbol

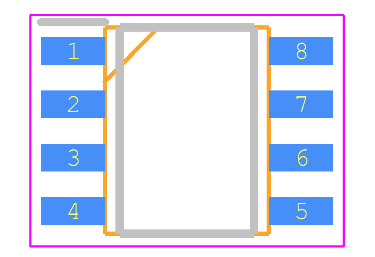

Footprint

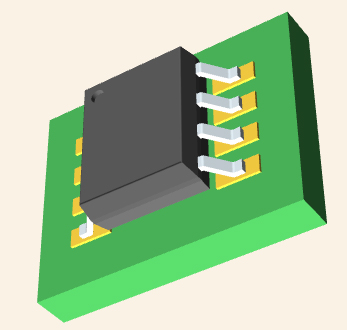

3D Model

LF353D Description

These circuits are high-speed JFET input dual operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficients.

LF353D Feature

  • Low power consumption
  • Wide common-mode (up to VCC+) and differential voltage range
  • Low input bias and offset current
  • Output short-circuit protection
  • High input impedance JFET input stage
  • Internal frequency compensation
  • Latch-up free operation
  • High slew rate 16 V/µs (typical)

Specifications

STMicroelectronics LF353D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LF353D.

LF353D Tech Specifications

STMicroelectronics LF353D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LF353D.

Product Attribute Attribute Value
MountSurface Mount
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Number of Pins8Pins
Weight4.535924g
Operating Temperature0°C~70°C
PackagingTube
JESD-609 Codee4
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)260
Number of Functions2Functions
Product Attribute Attribute Value
Supply Voltage15V
Time@Peak Reflow Temperature-Max (s)30
Base Part NumberLF353
Pin Count8
Power Supplies+-15V
Number of Channels2Channels
Operating Supply Current1.4mA
Nominal Supply Current3.2mA
Power Dissipation680mW
Slew Rate16V/μs
ArchitectureVOLTAGE-FEEDBACK
Amplifier TypeJ-FET
Common Mode Rejection Ratio70 dB
Current - Input Bias20pA
Voltage - Supply, Single/Dual (±)±3V~16V
Output Current per Channel40mA
Input Offset Voltage (Vos)10mV
Product Attribute Attribute Value
Neg Supply Voltage-Nom (Vsup)-15V
Unity Gain BW-Nom4000 kHz
Voltage Gain106.02dB
Low-OffsetNO
Frequency CompensationYES
Voltage - Input Offset3mV
Low-BiasYES
Input Offset Current-Max (IIO)0.004μA
Height6.35mm
Length6.35mm
Width6.35mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

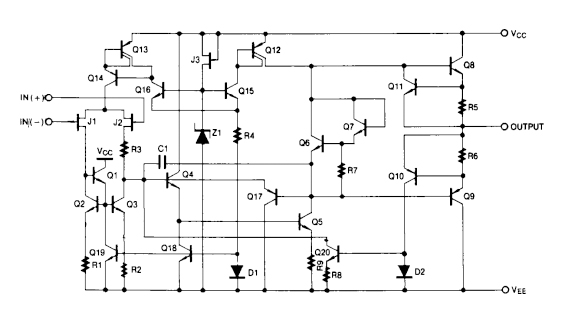

LF353D Schematic Diagram

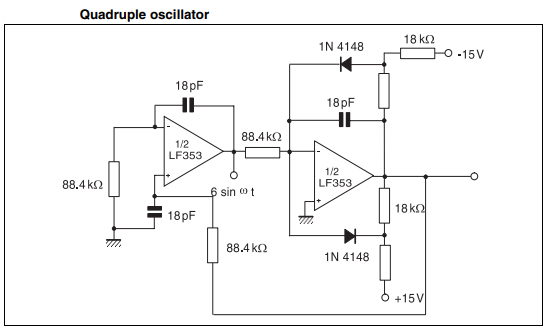

LF353D Typical Application

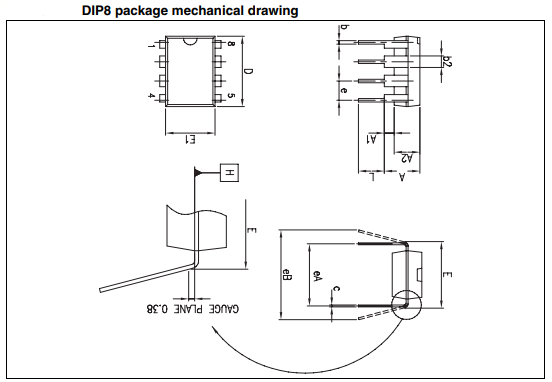

LF353D Package

Datasheet PDF

Download datasheets and manufacturer documentation for STMicroelectronics LF353D.

LF353D Documents

Download datasheets and manufacturer documentation for LF353D

Frequently Asked Questions

1.How big is the lf353d part number package?
PART NUMBER PACKAGE BODY SIZE (NOM) LF353D SOIC (8) 4.90 mm × 3.91 mm LF353P PDIP (8) 9.81 mm × 6.35 mm (1) For all available packages, see the orderable addendum at the end of the datasheet.
2.How big is a lf353d SOIC and PDIP?
LF353D SOIC (8) 4.90 mm × 3.91 mm LF353P PDIP (8) 9.81 mm × 6.35 mm (1) For all available packages, see the orderable addendum at the end of the datasheet.
3.What are the applications of the lf353 circuit?
The LF353 can be used in applications such as high-speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits.
4.What is the operating temperature of the lf353?
The LF353 is characterized for operation from 0°C to 70°C. Email notification is enabled. NEW - You can choose different carrier options based on the number of parts, including full reel, custom reel, cut tape, tube, or tray.
5.Which is better the lf353 or the 2n3819?
The LF353 has JFET within it so very well the same common FET but it has many components inside it, makes a high gain, and better than 2N3819 but in normal use, we may need it because too cost in some places. This is a very simple 4-channel audio mixer.
FAQ
1.How big is the lf353d part number package?
PART NUMBER PACKAGE BODY SIZE (NOM) LF353D SOIC (8) 4.90 mm × 3.91 mm LF353P PDIP (8) 9.81 mm × 6.35 mm (1) For all available packages, see the orderable addendum at the end of the datasheet.
2.How big is a lf353d SOIC and PDIP?
LF353D SOIC (8) 4.90 mm × 3.91 mm LF353P PDIP (8) 9.81 mm × 6.35 mm (1) For all available packages, see the orderable addendum at the end of the datasheet.
3.What are the applications of the lf353 circuit?
The LF353 can be used in applications such as high-speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits.
4.What is the operating temperature of the lf353?
The LF353 is characterized for operation from 0°C to 70°C. Email notification is enabled. NEW - You can choose different carrier options based on the number of parts, including full reel, custom reel, cut tape, tube, or tray.
5.Which is better the lf353 or the 2n3819?
The LF353 has JFET within it so very well the same common FET but it has many components inside it, makes a high gain, and better than 2N3819 but in normal use, we may need it because too cost in some places. This is a very simple 4-channel audio mixer.
