LL4148-GS08：Discrete Semiconductor Products Diod

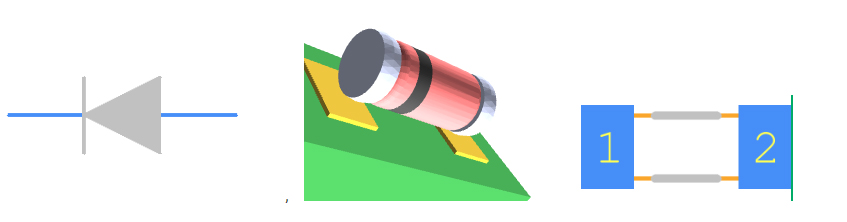

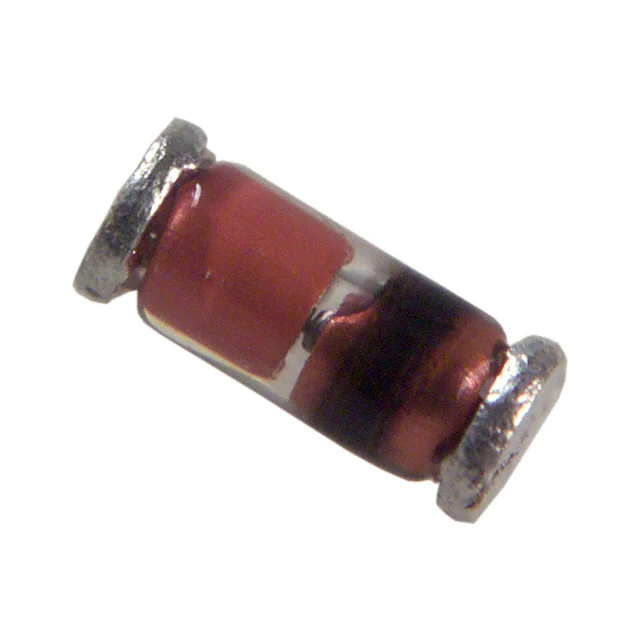

The LL4148 belongs to Diode Small Signal Switching 100V 0.3A 2-Pin Mini-MELF SOD-80 T/R. The LL4148 from Vishay is a surface mount small signal fast switching diode. This diode features a unidirectional single configuration and silicon epitaxial planar coating.

• Automotive-grade AEC-Q101 qualified

•  The maximum repetitive reverse voltage of 100V

• power dissipation is 500mW

•  The operating junction temperature of 175°C

•  Peak forward surge current is 2A at tp 1µs

• Available with a reverse recovery time of 8ns and 4ns respectively

•  The forward voltage of 1000mV at IF 50mA

• SOD-80 (MiniMELF) case style

Vishay Intertechnology, Inc. is an American manufacturer of discrete semiconductors and passive electronic components founded by Polish-born businessman Felix Zandman. Vishay has manufacturing plants in Israel, Asia, Europe, and the Americas where it produces rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors. Vishay Intertechnology's revenues for 2018 were $3.035 billion. As of December 31, 2018, Vishay Intertechnology had approximately 24,100 full-time employees.

Vishay is one of the world's foremost manufacturers of power MOSFETs. They have a wide range of power electronic applications, including portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.

Signal Processing, Power Management, Consumer Electronics, Portable Devices, Automotive

Silicon epitaxial planar diode

Electrical data identical with the devices 1N4148 and 1N4448 respectively

AEC-Q101 qualified

VF = max. 1000 mV at IF = 50 mA

LL4148 L1G, LL4148-GS18
