IC OPAMP TRANSCOND 2 CIRC 16DIP
LM13700N is dual transconductance amplifier with linearizing diodes and buffers. This article mainly covers its datasheet, pinout, alternatives and more detailed information about LM13700N.
LM13700N
LM13700N is dual operational transconductance amplifiers with linearizing diodes and buffers. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result 10 dB signal-to-noise improvement referenced to 0.5 percent THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers.
Symbol
Footprint
3D Model
• gm Adjustable Over 6 Decades
• Excellent gm Linearity
• Excellent Matching Between Amplifiers
• Linearizing Diodes for reduced output distortion
• High Impedance Buffers
• High Output Signal-to-Noise Ratio
Texas Instruments LM13700N technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM13700N.
Texas Instruments LM13700N technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM13700N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Number of Pins | 16Pins | |
| Number of Elements | 2 Elements | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Packing Method | RAIL | |
| Max Power Dissipation | 570mW | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 2Functions | |
| Supply Voltage | 15V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | LM13700 | |
| Pin Count | 16 | |
| Output Type | Push-Pull | |
| Operating Supply Voltage | 18V | |
| Operating Supply Current | 2.6mA | |
| Nominal Supply Current | 2.6mA | |
| Power Dissipation | 570mW | |
| Output Current | 20mA | |
| Max Supply Current | 2.6mA | |
| Slew Rate | 50V/μs | |
| Amplifier Type | Transconductance | |
| Common Mode Rejection Ratio | 80 dB | |
| Current - Input Bias | 1μA | |
| Voltage - Supply, Single/Dual (±) | 10V~36V ±5V~18V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current per Channel | 650μA | |
| Input Offset Voltage (Vos) | 4mV | |
| Gain Bandwidth Product | 2MHz | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 2000 kHz | |
| Average Bias Current-Max (IIB) | 8μA | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 300μV | |
| Bias Current-Max (IIB) @25C | 5μA | |
| Dual Supply Voltage | 15V | |
| Height | 3.3mm | |
| Length | 19.05mm | |
| Width | 6.35mm | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
• Current-Controlled Amplifiers
• Stereo Audio Amplifiers
• Current-Controlled Impedances
• Current-Controlled Filters
• Current-Controlled Oscillators
• Multiplexers
• Timers
• Sample-and-Hold Circuits

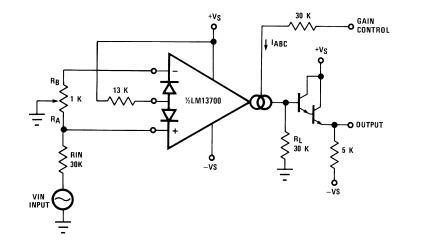

LM13700N Typical Application

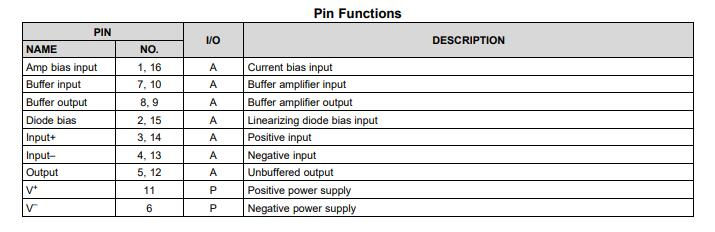

LM13700N Connection Diagram
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Download datasheets and manufacturer documentation for Texas Instruments LM13700N.
Download datasheets and manufacturer documentation for LM13700N
