LM158DT is a Low-power dual operational amplifier. This article mainly introduces its datasheet, pinout, schematic diagram and more detailed information about LM158DT
LM158DT Operational Amplifier: Datasheet, Pinout and Schematic Diagram
IC OPAMP GP 1.1MHZ 8SO LM158DT is a Low-power dual operational amplifier.
188
Jul 10, 2021
Eden Louise
LM158DT
70In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.12835 | $2.13 |
| 10+ | $2.00788 | $20.08 |
| 100+ | $1.89422 | $189.42 |
| 500+ | $1.787 | $893.5 |
| 1000+ | $1.68585 | $1685.85 |
Unit Price:$2.12835
Subtotal: $2.13
Quick Links
LM158DT Description
LM158DT is a Low-power dual operational amplifier, consisting of two independent, high-gain, internally,
frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages.The low-power supply drain is independent of the magnitude of the power supply voltage.

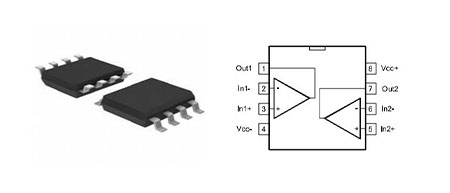

LM158DT Pinout
LM158DT CAD Model
Symbol

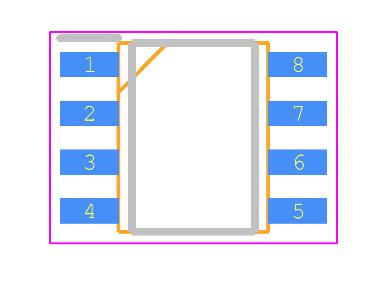

Footprint
3D Model
LM158DT Features
· Frequency compensation implemented internally
· Large DC voltage gain: 100 dB
· Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)
· Very low supply current per channel essentially independent of supply voltage
· Low input bias current: 20 nA (temperature compensated)
· Low input offset voltage: 2 mV
· Low input offset current: 2 nA
· Input common-mode voltage range includes negative rails
· Differential input voltage range equal to the power supply voltage
· Large output voltage swing 0 V to (VCC+ - 1.5 V)
Specifications
STMicroelectronics LM158DT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM158DT.
LM158DT Tech Specifications
LM158DT Tech Specifications
STMicroelectronics LM158DT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM158DT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Packing Method | TAPE AND REEL | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | LM158 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 15V | |
| Power Supplies | +-1.5/+-15/3/30V | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 700μA | |
| Nominal Supply Current | 1.2mA | |
| Output Current | 40mA | |
| Slew Rate | 0.6V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 20nA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply, Single/Dual (±) | 3V~30V ±1.5V~15V | |
| Output Current per Channel | 40mA | |
| Input Offset Voltage (Vos) | 2mV | |
| Unity Gain BW-Nom | 1100 kHz | |
| Voltage Gain | 100dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Bias Current-Max (IIB) @25C | 0.15μA | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

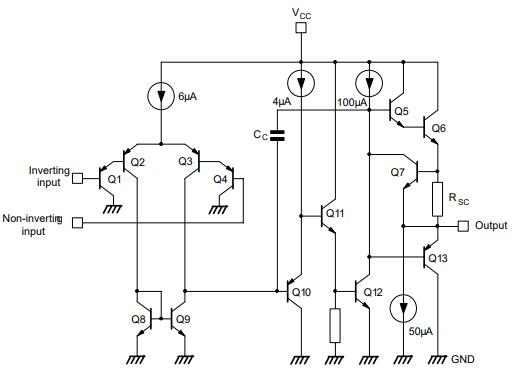

LM158DT Schematic Diagram
LM158DT Application
·Transducer amplifiers
·DC gain blocks
·All the conventional op amp circuits

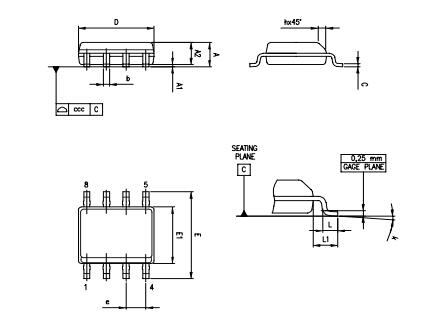

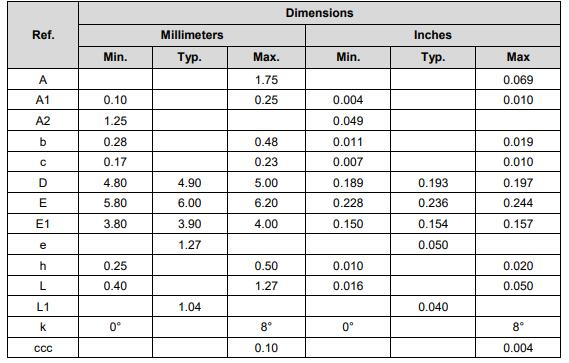

LM158DT Package
LM158DT Manufacturer
STMicroelectronics is a world leader in providing the semiconductor solutions that make a positive contribution to people's lives, today and into the future.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics LM158DT.
LM158DT Documents
LM158DT Documents
Download datasheets and manufacturer documentation for LM158DT
Frequently Asked Questions
What operating temperature does it range?
-55 °C to 125 °C.
What is Operational Amplifier(Op-amp)?
An operational amplifier is an integrated circuit that can amplify weak electric signals. An operational amplifier has two input pins and one output pin. Its basic role is to amplify and output the voltage difference between the two input pins.
What can an Operational Amplifier do?
An operational amplifier is not used alone but is designed to be connected to other circuits to perform a great variety of operations:
Enables substantial amplification of an input signal;
Enables elimination of noise from an input signal.
FAQ
What operating temperature does it range?
-55 °C to 125 °C.
What is Operational Amplifier(Op-amp)?
An operational amplifier is an integrated circuit that can amplify weak electric signals. An operational amplifier has two input pins and one output pin. Its basic role is to amplify and output the voltage difference between the two input pins.
What can an Operational Amplifier do?
An operational amplifier is not used alone but is designed to be connected to other circuits to perform a great variety of operations:
Enables substantial amplification of an input signal;
Enables elimination of noise from an input signal.
