IC AMP CLASS AB MONO 25W TO220-5
The LM1875T is a monolithic power amplifier offering very low distortion and high-quality performance for consumer audio applications.
LM1875T/NOPB Audio Amplifier: Feature,Specification,Datasheet
IC AMP CLASS AB MONO 25W TO220-5 The LM1875T is a monolithic power amplifier offering very low distortion and high-quality performance for consumer audio applications.
203
Jun 5, 2021
Salome
LM1875T/NOPB
570In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.07736 | $4.08 |
| 10+ | $3.84657 | $38.47 |
| 100+ | $3.62884 | $362.88 |
| 500+ | $3.42343 | $1711.72 |
| 1000+ | $3.22965 | $3229.65 |
Unit Price:$4.07736
Subtotal: $4.08
Quick Links
LM1875T Description
The LM1875T delivers 20 watts into a 4Ω or 8Ω load on ±25V supplies. Using an 8Ω load and ±30V supplies, over 30 watts of power may be delivered. The amplifier is designed to operate with a minimum of external components. Device overload protection consists of both internal current limit and thermal shutdown.
The LM1875T design takes advantage of advanced circuit techniques and processing to achieve extremely low distortion levels even at high output power levels. Other outstanding features include high gain, fast slew rate, and wide power bandwidth, large output voltage swing, high current capability, and a very wide supply range. The amplifier is internally compensated and stable for gains of 10 or greater.
LM1875T Features
• Up to 30 watts output power
• AVO typically 90 dB
• Low distortion: 0.015%, 1 kHz, 20 W
• Wide power bandwidth: 70 kHz
• Protection for AC and DC short circuits to ground
• Thermal protection with parole circuit
• High current capability: 4A
• Wide supply range 16V-60V
• Internal output protection diodes
• 94 dB ripple rejection
• Plastic power package TO-220
LM1875T Advantages
The maximum output power is 30W.
The harmonic distortion is 0.07.
The bandwidth is 10-100K (+/-3Db).
LM1875T Applications
• High-performance audio systems
• Bridge amplifiers
• Stereo phonographs
• Servo amplifiers
• Instrument systems
LM1875T Connection Diagram
LM1875T CAD Model

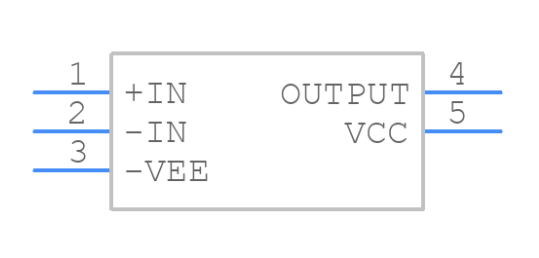

Symbol

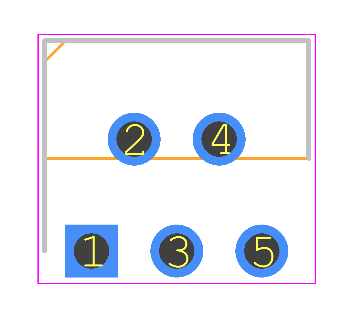

Footprint
3D Model
Specifications
Texas Instruments LM1875T/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM1875T/NOPB.
LM1875T/NOPB Tech Specifications
LM1875T/NOPB Tech Specifications
Texas Instruments LM1875T/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM1875T/NOPB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-5 Formed Leads | |
| Surface Mount | NO | |
| Number of Pins | 5Pins | |
| Weight | 9.071847g | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | Through Hole | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Supply | 16V~60V ±8V~30V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Base Part Number | LM1875 | |
| Output Type | 1-Channel (Mono) | |
| Operating Supply Voltage | 28V | |
| Number of Channels | 2Channels | |
| Nominal Supply Current | 100mA | |
| Max Supply Current | 100mA | |
| Quiescent Current | 70mA | |
| Output Power | 25W | |
| Slew Rate | 8 V/μs | |
| Supply Type | Dual, Single | |
| Input Offset Voltage (Vos) | 15mV | |
| Gain Bandwidth Product | 5.5MHz | |
| Voltage Gain | 90dB | |
| Power Supply Rejection Ratio (PSRR) | 95dB | |
| Gain | 90 dB | |
| Max Dual Supply Voltage | 30V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Power | 30W | |
| Min Dual Supply Voltage | 8V | |
| Dual Supply Voltage | 18V | |
| Input Bias Current | 2μA | |
| Max Output Power x Channels @ Load | 25W x 1 @ 8 Ω | |
| Harmonic Distortion | 1% | |
| Number of Amplifiers | 1Amplifier | |
| Load Impedance | 8Ohm | |
| Features | Short-Circuit and Thermal Protection | |
| Height | 4.7mm | |
| Length | 14.986mm | |
| Width | 10.16mm | |
| Thickness | 4.572mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LM1875T Manufacturer
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture, and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.

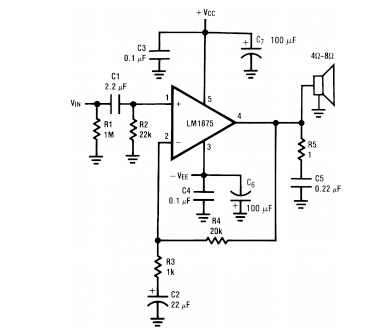

LM1875T Typical Application
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments LM1875T/NOPB.
LM1875T/NOPB Documents
LM1875T/NOPB Documents
Download datasheets and manufacturer documentation for LM1875T/NOPB
Datasheets
LM1875T-NOPB-Texas-Instruments-datasheet-21076648.pdf
LM1875T-NOPB-Texas-Instruments-datasheet-86512294.pdf
NOPB-Texas-Instruments-datasheet-10844923.pdf
NOPB-National-Semiconductor-datasheet-14135746.pdf
NOPB-National-Semiconductor-datasheet-13414.pdf
NOPB-National-Semiconductor-datasheet-9879573.pdf
NOPB-National-Semiconductor-datasheet-534899.pdf
LM1875T/NOPB Documents
PCN Assembly/Origin
Mult Devices 21/Aug/2017
Frequently Asked Questions
Where to place resistor in lm1875 amplifier?
If highly capacitive loads are expected, a resistor (at least 1Ω) should be placed in series with the output of the LM1875. A method commonly employed to protect amplifiers from low impedances at high frequencies is to couple to the load through a 10Ωresistor in parallel with a 5 μH inductor.
Can a lm1875 be used as a heatsink?
Slowly turn up the voltage - the LM1875 handles +-25V like a champ, so if you have a decent heatsink there shouldn't be anything to worry about. I ran the output into a gigantic dummy load (a 300W, 8Ω resistor) and scoped the output.
What is a lm1875 amplifier?
The LM1875 is a wide power amplifier with very low distortion and high-quality efficiency for audio applications. It gives power is 20 watts into a 4 ohms or 8 ohms load on 25V power supplies. Its amplifiers circuits are designed to working with a minimum of external parts.
What kind of power supply does a gobo lm1875 have?
The power supply schematic for the Gobo LM1875 amplifier, also from the step-by-step instructions manual is shown in Figure 2. The power supply is fed from the toroidal transformer through dual 12V secondaries. A full wave bridge rectifier is used to produce a symmetrical 16.8VDC supply.
Which is the gain resistor on the lm1875?
R1 and R2 are the gain resistors attached to the inverting input of the amplifier. The values of 22KΩ and 1KΩ work out to a gain of 23: To change the gain, simply swap R1 out with another resistor in the kohm range and plug it into the formula. CIC1 to CIC4 are the decoupling capacitors for the LM1875.
FAQ
Where to place resistor in lm1875 amplifier?
If highly capacitive loads are expected, a resistor (at least 1Ω) should be placed in series with the output of the LM1875. A method commonly employed to protect amplifiers from low impedances at high frequencies is to couple to the load through a 10Ωresistor in parallel with a 5 μH inductor.
Can a lm1875 be used as a heatsink?
Slowly turn up the voltage - the LM1875 handles +-25V like a champ, so if you have a decent heatsink there shouldn't be anything to worry about. I ran the output into a gigantic dummy load (a 300W, 8Ω resistor) and scoped the output.
What is a lm1875 amplifier?
The LM1875 is a wide power amplifier with very low distortion and high-quality efficiency for audio applications. It gives power is 20 watts into a 4 ohms or 8 ohms load on 25V power supplies. Its amplifiers circuits are designed to working with a minimum of external parts.
What kind of power supply does a gobo lm1875 have?
The power supply schematic for the Gobo LM1875 amplifier, also from the step-by-step instructions manual is shown in Figure 2. The power supply is fed from the toroidal transformer through dual 12V secondaries. A full wave bridge rectifier is used to produce a symmetrical 16.8VDC supply.
Which is the gain resistor on the lm1875?
R1 and R2 are the gain resistors attached to the inverting input of the amplifier. The values of 22KΩ and 1KΩ work out to a gain of 23: To change the gain, simply swap R1 out with another resistor in the kohm range and plug it into the formula. CIC1 to CIC4 are the decoupling capacitors for the LM1875.
