LM1876 is a dual 20W audio power amplifier with mute and standby modes. This article mainly introduce its pinout, application, datasheet and other detailed information about Texas Instruments LM1876.
LM1876T
The LM1876 is a stereo audio amplifier that can provide a typical continuous average output power of 20W per channel of 23W per channel with a THD+N lower than 0.1% to a 4Ω or 8Ω load. Each amplifier has an independent smooth transition fade-in/fade-out mute and an energy-saving standby mode that can be controlled by external logic. The performance of the LM1876 utilizes its self-peak instantaneous temperature (°Ke) (SPiKe™) protection circuit, which puts it in a class above discrete and hybrid amplifiers by providing inherent, application-dynamic-protected safe operating area (SOA). SPiKe protection means that these components are protected at the output to prevent overvoltage, undervoltage, and overload, including thermal runaway and instantaneous temperature peaks.
Footprint
• SPiKe Protection
• Minimal Amount of External Components Necessary
• Quiet Fade-In/Out Mute Mode
• Standby-Mode
• Isolated 15-Lead TO-220 Package (PFM)
• Non-Isolated 15-lead TO-220 Package
• Wide Supply Range 20V - 64V
Texas Instruments LM1876T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM1876T.
Texas Instruments LM1876T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM1876T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | TO-220-15 Formed Leads | |
| Surface Mount | NO | |
| Number of Pins | 15Pins | |
| Operating Temperature | -20°C~85°C TA | |
| Packaging | Tube | |
| Series | Overture™ | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 15Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Power Dissipation | 62.5W | |
| Voltage - Supply | 20V~64V ±10V~32V | |
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Base Part Number | LM1876 | |
| Pin Count | 3 | |
| Output Type | 2-Channel (Stereo) | |
| Operating Supply Voltage | 28V | |
| Number of Channels | 2Channels | |
| Power Dissipation | 62.5W | |
| Supply Current-Max | 80mA | |
| Output Power | 22W | |
| Common Mode Rejection Ratio | 80 dB | |
| Supply Type | Dual, Single | |
| Input Offset Voltage (Vos) | 15mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Bandwidth | 20 kHz | |
| Gain Bandwidth Product | 7.5MHz | |
| Voltage Gain | 110dB | |
| Power Supply Rejection Ratio (PSRR) | 115dB | |
| Max Dual Supply Voltage | 32V | |
| Max Output Power | 22W | |
| Min Dual Supply Voltage | 10V | |
| Dual Supply Voltage | 28V | |
| Input Bias Current | 500nA | |
| Max Output Power x Channels @ Load | 22W x 2 @ 4 Ω | |
| Features | Depop, Mute, Short-Circuit and Thermal Protection | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
AC Electrical Test Circuit
DC Electrical Test Circuit
Auxiliary Amplifier Application Circuit
Bridged Amplifier Application Circuit
Single Supply Application Circuit

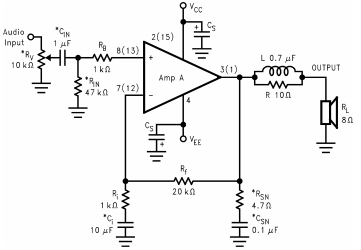

Typical Audio Amplifier Application Circuit
● Compact Stereo
● Component Stereo
● High-End Stereo TVs
