Linear - Comparators 8-DIP (0.300, 7.62mm) 5V -55°C~125°C LM193 IC COMP DUAL LOW POWER 8-DIP
LM193 is a dual comparator with low power consumption and low offset voltage. The LM193 device consists of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
LM193N
Symbol
Footprint
3D Model
The LM193 device consists of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. The comparator also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
This article provides you with a basic overview of the LM193 Low Power Dual Voltage Comparator, including its pin descriptions, features and specifications, etc., to help you quickly understand what LM193 is.
● Wide single supply voltage range or dual supplies : +2V to +36V or ±1V to ±18V
● Very low supply current (0.4mA)
independent of supply voltage (1mW/comparator at +5V)
● Low input bias current: 25nA typ.
● Low input offset current: ±5nA typ.
● Low input offset voltage: ±1mV typ.
● Input common-mode voltage range includes ground
● Low output saturation voltage: 250mV typ. (Io = 4mA)
● Differential input voltage range equal to the supply voltage
● TTL, DTL, ECL, MOS, CMOS compatible outputs
STMicroelectronics LM193N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM193N.
STMicroelectronics LM193N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM193N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Number of Elements | 2 Elements | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | General Purpose | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V | |
| Base Part Number | LM193 | |
| Pin Count | 8 | |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL | |
| Power Supplies | 5V | |
| Nominal Supply Current | 1mA | |
| Power Dissipation | 1.25W | |
| Output Current | 18mA | |
| Quiescent Current | 2.5mA | |
| Response Time | 1.3 μs | |
| Voltage - Supply, Single/Dual (±) | 2V~36V ±1V~18V | |
| Input Offset Voltage (Vos) | 5mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Gain | 106.02dB | |
| Average Bias Current-Max (IIB) | 0.4μA | |
| Supply Voltage Limit-Max | 36V | |
| Input Bias Current | 250nA | |
| Voltage - Input Offset (Max) | 5mV @ 30V | |
| Current - Input Bias (Max) | 0.25μA @ 5V | |
| Natural Thermal Resistance | 85 °C/W | |
| Current - Output (Typ) | 18mA @ 5V | |
| Height Seated (Max) | 5.33mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Model number | Manufacturer | Description |
| LM293P | Texas Instruments | Dual differential comparator, industrial grade 8-PDIP -25 to 85 |
| LM393PE3 | Texas Instruments | Dual differential comparator, commercial grade 8-PDIP 0 to 70 |
| LM393P | Bay Linear Inc | Comparator, 2 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDIP8 |
| LM193J | National Semiconductor Corporation | IC COMPARATOR, Comparator |
| LM293N | Philips Semiconductors | Comparator, 2 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDIP8 |
| LM293PE4 | Texas Instruments | Dual differential comparator, industrial grade 8-PDIP -25 to 85 |
| LM393PE4 | Texas Instruments | Dual differential comparator, commercial grade 8-PDIP 0 to 70 |
● Basic comparator
● Driving TTL
● Low frequency op-amp
● Driving CMOS
● Transducer amplifier
● Low frequency op-amp with offset adjust
● Zero crossing detector (single power supply)
● Two-decade high-frequency VCO
● Limit comparator
● Crystal controlled oscillator
● Split-supply applications - zero crossing detector
● Comparator with a negative reference

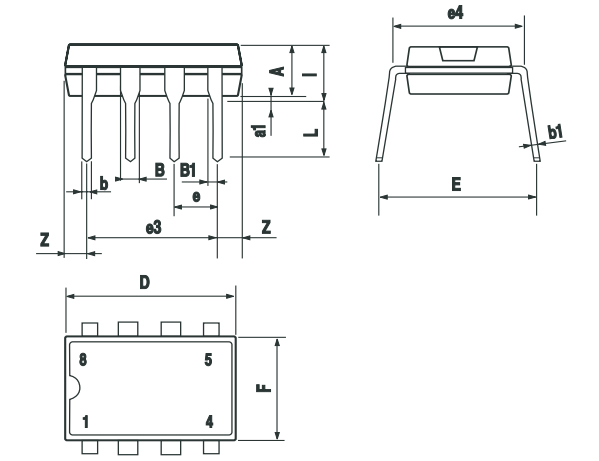

Package
Mechanical Data
STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivaled silicon and system expertise, strong manufacturing strength, IP portfolio,and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products has a positive effect in realizing today's convergence trends.
Download datasheets and manufacturer documentation for LM193N
