Specifics of LM2574 Step-Down Voltage Regulators
PMIC - Voltage Regulators - DC DC Switching Regulators SWITCHING REGULATOR 8-DIP (0.300, 7.62mm) -40°C~125°C TJ 2.54mm LM2574 77 % ON SEMICONDUCTOR LM2574N-5G Buck (Step Down) Switching Regulator, Fixed, 4.75V-40V In, 5V And 0.5A Out, DIP-8
The LM2574 is a set of fixed and adjustable switching voltage regulators that are simple to use. This article will introduce pinout, datasheet pdf, circuit, and other details about LM2574 regulators.
LM2574N-5G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.2686 | $2.27 |
| 10+ | $2.14019 | $21.4 |
| 100+ | $2.01905 | $201.91 |
| 500+ | $1.90476 | $952.38 |
| 1000+ | $1.79694 | $1796.94 |
The LM2574 is a set of fixed and adjustable switching voltage regulators that are simple to use. The LM2574 has all of the active circuitry needed to build a step-down (buck) switching regulator with only a few external components.
The LM2574 is available in 3.3V and 5V fixed output versions, or an adjustable version with an output voltage range of 1.23V to 37V. The output voltage is guaranteed to be ±4% for specified input and load conditions.
The LM2574 can supply 0.5A while maintaining excellent line and load regulation. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.
LM2574 Pinout
LM2574 Symbol
LM2574 Footprint

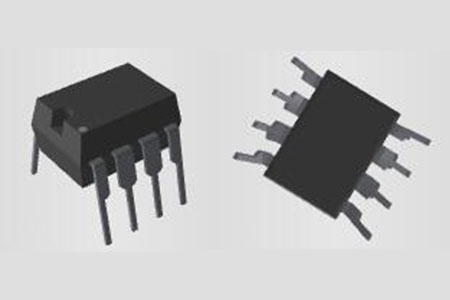

LM2574 3D Model
ON Semiconductor LM2574N-5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM2574N-5G.
ON Semiconductor LM2574N-5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM2574N-5G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tube | |
| Published | 2006 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Pitch | 2.54mm | |
| Frequency | 52kHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | LM2574 | |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | |
| Number of Outputs | 1Output | |
| Efficiency | 77 % | |
| Output Voltage | 5V | |
| Output Type | Fixed | |
| Max Output Current | 500mA | |
| Operating Supply Voltage | 40V | |
| Input Voltage-Nom | 12V | |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Configuration | Positive or Negative | |
| Max Output Voltage | 5.25V | |
| Voltage - Output (Min/Fixed) | 5V | |
| Topology | Buck, Boost, Buck-Boost | |
| Control Mode | VOLTAGE-MODE | |
| Halogen Free | Halogen Free | |
| Synchronous Rectifier | No | |
| Min Output Voltage | 4.75V | |
| Nominal Output Voltage | 5V | |
| Input Bias Current | 25nA | |
| Height | 3.44mm | |
| Length | 10.16mm | |
| Width | 6.6mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
3.3V, 5V, 12V, and adjustable output versions
Adjustable version output 1.23V to 37V ±4% max. Overline and load conditions.
Guaranteed 0.5A output current
The wide input voltage, up to 40V
Thermal shutdown and current limit protection
Requires only 4 external components
Shutdown capability (standby mode)
Low power standby mode < 200µA Typical
High-efficiency
52kHz fixed frequency internal oscillator
Uses standard inductors
LM2574 Typical Application Circuits
LM2574 Package Dimensions
ON Semiconductor (Nasdaq: ON) is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for LM2574N-5G
