Hello, everyone, I welcome you to read this post. Today I will introduce LM258 to you. LM258 is dual operational amplifiers IC and is a member of ‘LMxx’ family. This article mainly introduce uses, pinout, datasheet and other detailed information about Texas Instruments LM258.
LM258P
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.32958 | $0.33 |
| 10+ | $0.31092 | $3.11 |
| 100+ | $0.29332 | $29.33 |
| 500+ | $0.27672 | $138.36 |
| 1000+ | $0.26106 | $261.06 |
LM258 is dual operational amplifiers IC and is a member of ‘LMxx’ family. The chip consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.
LM258 has a lot of features including high DC voltage gain, large bandwidth, different input voltage equal to power supply, large output voltage swing, common mode input voltages include ground. These were the few of major features associated with LM258 operational amplifier.
LM258 has a very wide range of real life applications. Its applications include DC gain blocks, transducer amplifiers, operational amplifiers circuits which can be implemented using single power supply source. LM258 can be directly used with a voltage supply of 3.3V which is the most common voltage standard in digital systems.

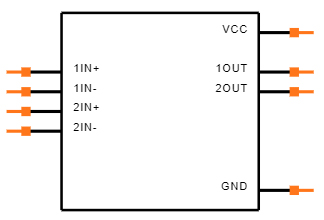

Symbol

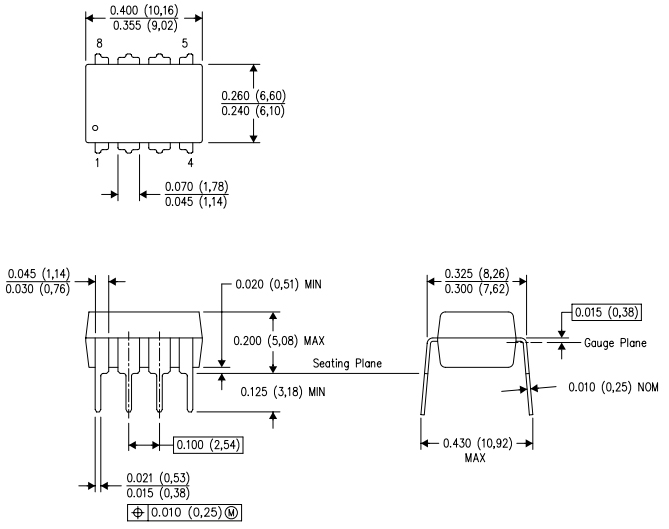

Footprint

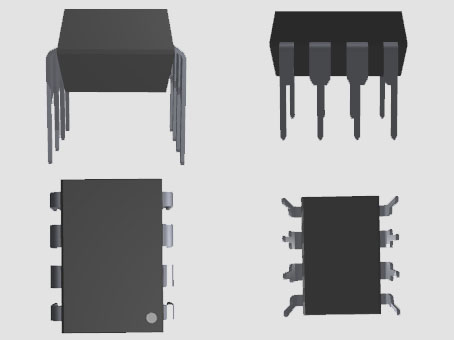

3D Model
-Wide range of supply voltage
-Can work from single power supply
-Two individually operated operational amplifiers
-Low noise interference among op-amps
-Wide bandwidth (Unity Gain): 1 MHz(temperature compensated)
-Large DC Voltage Gain: 100 dB
-Low Input Offset Voltage: 2 mV
-Low input offset current: 2 nA
-Low input bias current: 20 nA (temperature compensated)
-Input common-mode voltage range includes ground and negative rails. Enabling direct sensing near ground
-Differential input voltage range equal to the power supply voltage
-Internal frequency compensation
-Single supply operation: +3.0 V to +32 V
-Dual supply operation: +16V and -16V
-Very low supply current drain (500µA)
-Operating temperature: -25ºC to 85ºC
-Total power dissipation: 830mW
Texas Instruments LM258P technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM258P.
Texas Instruments LM258P technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM258P.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Operating Temperature | -25°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V | |
| Base Part Number | LM258 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pin Count | 8 | |
| Operating Supply Voltage | 16V | |
| Power Supplies | +-1.5/+-15/3/30V | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 1mA | |
| Nominal Supply Current | 1.2mA | |
| Output Current | 30mA | |
| Slew Rate | 0.3V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 20nA | |
| Voltage - Supply, Single/Dual (±) | 3V~32V ±1.5V~16V | |
| Output Current per Channel | 30mA | |
| Input Offset Voltage (Vos) | 5mV | |
| Unity Gain BW-Nom | 700 kHz | |
| Voltage Gain | 100dB | |
| Average Bias Current-Max (IIB) | 0.3μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 3mV | |
| Low-Bias | NO | |
| Micropower | NO | |
| Bias Current-Max (IIB) @25C | 0.15μA | |
| Programmable Power | NO | |
| Dual Supply Voltage | 9V | |
| Power | NO | |
| Input Offset Current-Max (IIO) | 0.03μA | |
| Height | 5.08mm | |
| Length | 9.81mm | |
| Width | 6.35mm | |
| Thickness | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

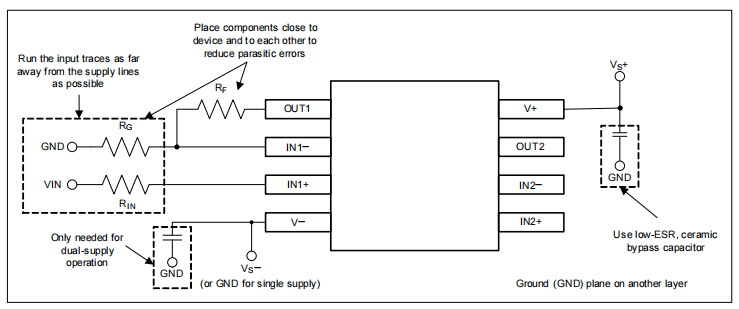

Operational Amplifier Board Layout for Noninverting Configuration
Operational Amplifier Schematic for Noninverting Configuration
As mentioned earlier there are two op-amps in the LM258 IC and they are connected internally as shown below
Here theses two op-amps can be used to realize any of op-amp application circuits like amplifier, comparator, oscillators and mathematical operations. So we will construct a simple Non inverting amplifier to understand the use of device.

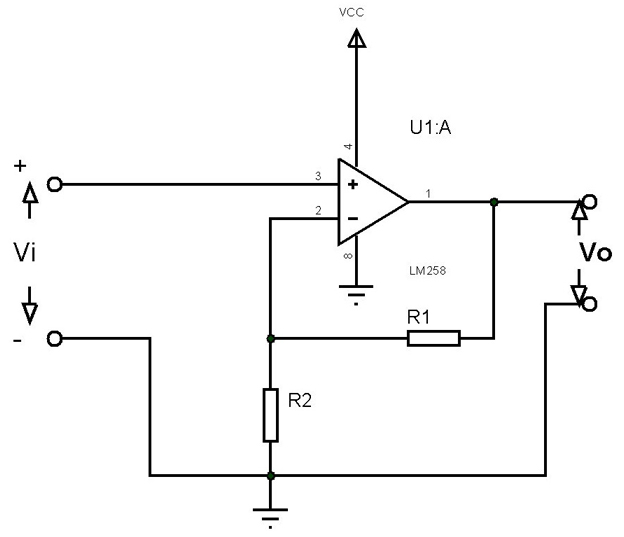

Now let us take a single op-amp from the two and construct a simple application circuit as show below.
In the above circuit the op-amp acts as a Non-Inverting Amplifier (Since input is given to Non-inverting terminal of op-amp) and output is provided as Vo. Also the device is powered from single voltage source of VCC.
We have the equation for the output Vo =Input voltage * Gain = Vi * A = Vi * (1+R1/R2)
For example:
Say R1 = 100, R2 = 10 and Input voltage Vi = 20mV
We will have Vo = 20m*(1+10)=220mV
With that we have realized the amplifier circuit of op-amp and in a similar way we use the device to design all other application circuits of op-amp.
-Used in Digital and Analog Electronics
-Used in Power Supplies and Mobile Chargers
-Used in Desktop PC and Motherboard
-Used in Uninterruptible Power Supplies
-Used in Mathematical Operations
-Used in Amplifiers
-Used in Oscillators
-Used in Voltage Comparators
-Used in Washers, Dryers, and Refrigerators
-Used in Programmable Logic Controllers
-Used in Measuring Instruments
-Used in Oscilloscope
-Used in Chemical Sensors
-Used in Gas Sensors
-Used in Weigh Scales
-Used in LCD&Digital TV
