The LM2775DSGR is a low-noise switched-capacitor doubler with a regulated output voltage. The following article is going to introduce the pinout, features, and other details of the device.
LM2775DSGR：Pinout, Switched-Capacitor, Low-Noise
IC REG SWITCHD CAP 5V 8WSON The LM2775DSGR is a low-noise switched-capacitor doubler with a regulated output voltage.
58
Jan 18, 2022
Valentine Hill
LM2775DSGR
596In Stock
Min.: 1 Mult.: 1
Quick Links
LM2775DSGR Description
The LM2775DSGR is a low-noise switched-capacitor doubler with a regulated output voltage. Over a 3.1-V to 5.5-V input range, the LM2775DSGR can produce up to 200 mA of output current, including up to 125 mA when the input voltage is as low as 2.7 V. The LM2775DSGR can minimize its quiescent current by running in a pulse frequency modulation (PFM) mode at low output currents. The PFM pin can be driven high or low to enable or disable PFM mode. Additionally, when the LM2775 is in shutdown mode, the user can set the OUTDIS pin high or low to have the output voltage drawn to GND or left in a high impedance state.
The LM2775DSGR is housed in TI's 8-pin WSON package, which has good thermal qualities and prevents the part from overheating under nearly all of its rated operating settings.

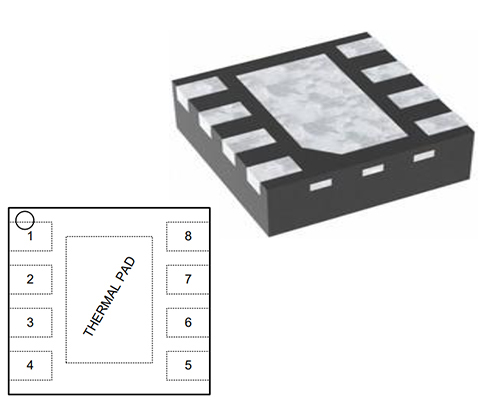

LM2775DSGR Pinout
LM2775DSGR CAD Model

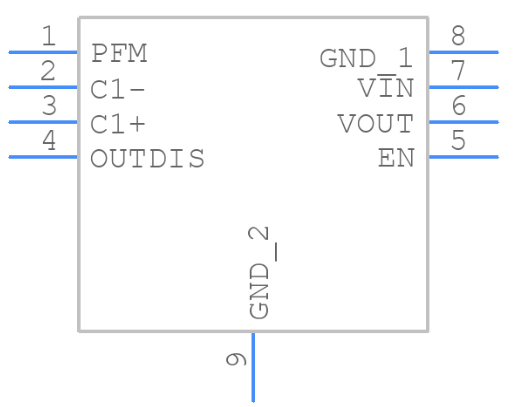

Symbol

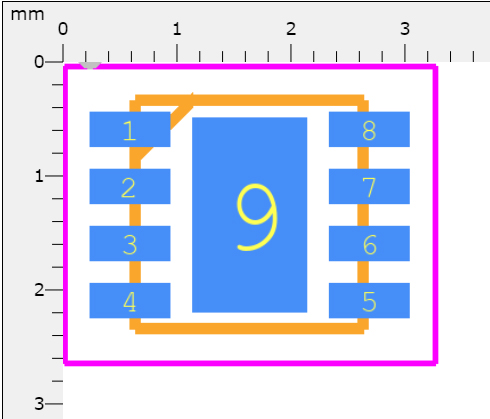

Footprint

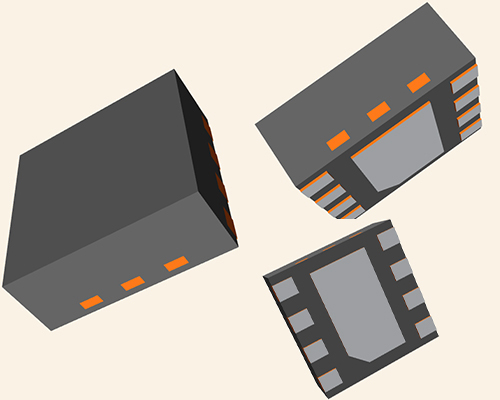

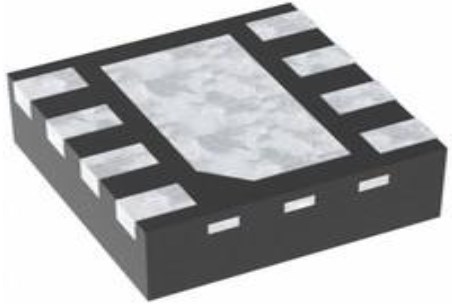

3D Model
LM2775DSGR Features
• 2.7-V to 5.5-V Input Range
• Fixed 5-V Output
• 200-mA Output Current
• Inductorless Solution: Only Requires 3 Small Ceramic Capacitors
• Shutdown Disconnects Load from VIN
• Current Limit and Thermal Protection
• 2-MHz Switching Frequency
• PFM Operation During Light Load Currents (PFM pin tied high)
Specifications
NA LM2775DSGR technical specifications, attributes, parameters and parts with similar specifications to NA LM2775DSGR.
LM2775DSGR Tech Specifications
LM2775DSGR Tech Specifications
Texas Instruments LM2775DSGR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM2775DSGR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-WFDFN Exposed Pad | |
| Number of Pins | 8Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | LM2775 | |
| Function | Step-Up | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 5.5V | |
| Output Voltage | 5V | |
| Output Type | Fixed | |
| Voltage - Input (Min) | 2.7V | |
| Input Voltage-Nom | 3.6V | |
| Analog IC - Other Type | SWITCHED CAPACITOR REGULATOR | |
| Output Configuration | Positive |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 75μA | |
| Topology | Charge Pump | |
| Frequency - Switching | 2MHz | |
| Control Technique | PULSE FREQUENCY MODULATION | |
| Synchronous Rectifier | No | |
| Min Output Voltage | 5V | |
| Switcher Configuration | DOUBLER | |
| Height | 800μm | |
| Length | 2mm | |
| Width | 2mm | |
| Thickness | 750μm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

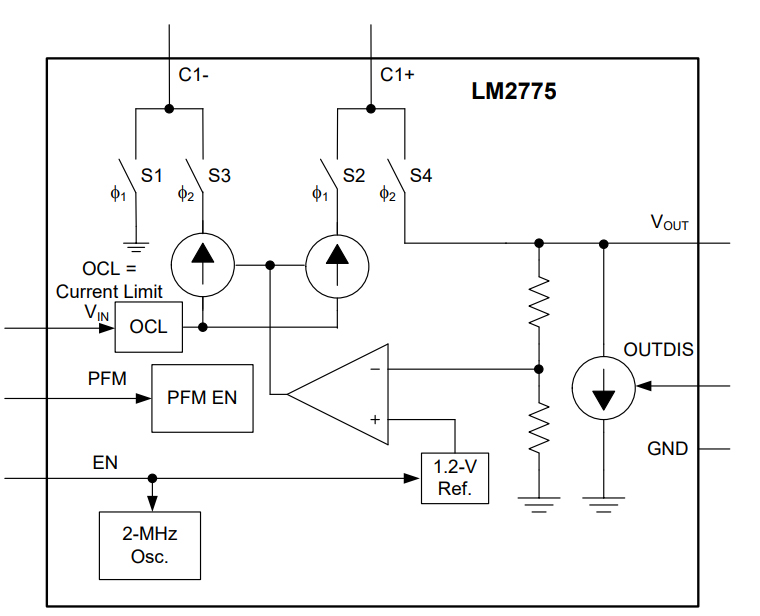

LM2775DSGR Functional Block Diagram
LM2775DSGR Application
• USB OTG
• HDMI Power
• Portable Electronics

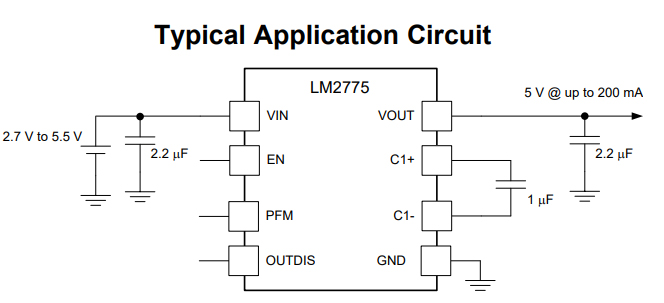

LM2775DSGR Typical Application Circuit
LM2775DSGR Manufacturer
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Datasheet PDF
Download datasheets and manufacturer documentation for NA LM2775DSGR.
LM2775DSGR Documents
LM2775DSGR Documents
Download datasheets and manufacturer documentation for LM2775DSGR
PCN Design/Specification
Mult Dev Material Chg 29/Mar/2018
PCN Assembly/Origin
SN2040/LM2775 19/Jan/2018
Datasheets
LM2775DSGR Documents
Frequently Asked Questions
What is LM2775DSGR?
The LM2775DSGR is a low-noise switched-capacitor doubler with a regulated output voltage. Over a 3.1-V to 5.5-V input range, the LM2775DSGR can produce up to 200 mA of output current, including up to 125 mA when the input voltage is as low as 2.7 V. The LM2775DSGR can minimize its quiescent current by running in a pulse frequency modulation (PFM) mode at low output currents. The PFM pin can be driven high or low to enable or disable PFM mode. Additionally, when the LM2775 is in shutdown mode, the user can set the OUTDIS pin high or low to have the output voltage drawn to GND or left in a high impedance state.
What is the recommended operating temperature of LM2775DSGR?
-40°C~85°C.
FAQ
What is LM2775DSGR?
The LM2775DSGR is a low-noise switched-capacitor doubler with a regulated output voltage. Over a 3.1-V to 5.5-V input range, the LM2775DSGR can produce up to 200 mA of output current, including up to 125 mA when the input voltage is as low as 2.7 V. The LM2775DSGR can minimize its quiescent current by running in a pulse frequency modulation (PFM) mode at low output currents. The PFM pin can be driven high or low to enable or disable PFM mode. Additionally, when the LM2775 is in shutdown mode, the user can set the OUTDIS pin high or low to have the output voltage drawn to GND or left in a high impedance state.
What is the recommended operating temperature of LM2775DSGR?
-40°C~85°C.
