LM2903M: Pinout, Datasheet, Comparators

The LM2903M comprises of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators that were designed to operate across a wide variety of voltages from a single power source. It is also possible to operate from split power supplies, and the low power supply current drain is unaffected by the amount of the power supply voltage. Even though run from a single power supply voltage, these comparators have a unique feature in that the input common-mode voltage range includes ground.

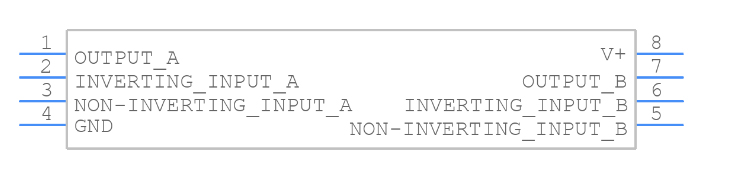

Symbol

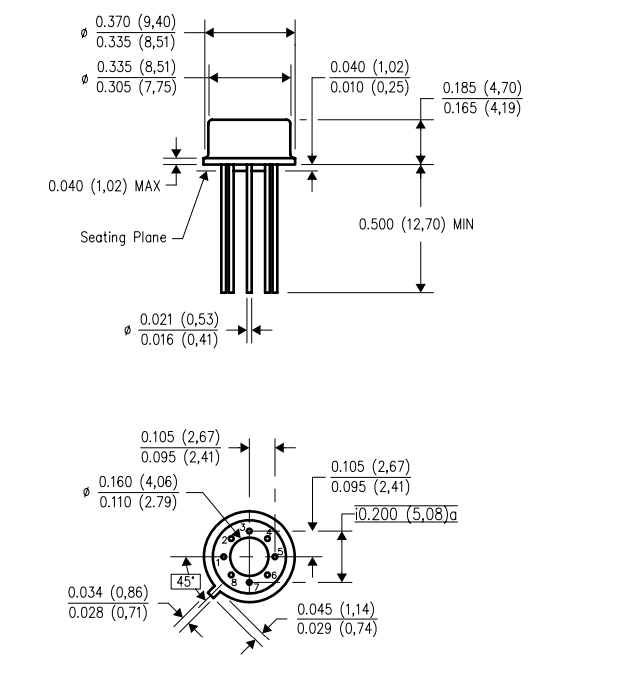

Footprint

3D Model

• Wide Supply

– Voltage Range: 2.0 V to 36 V

– Single or Dual Supplies: ±1.0 V to ±18 V

• Very Low Supply Current Drain (0.4 mA) —Independent of Supply Voltage

• Low Input Biasing Current: 25 nA

• Low Input Offset Current: ±5 nA

• Maximum Offset voltage: ±3 mV

• Input Common-Mode Voltage Range Includes Ground

• Differential Input Voltage Range Equal to the Power Supply Voltage

• Low Output Saturation Voltage: 250 mV at 4 mA

• Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS logic systems

• Available in the 8-Bump (12 mil) DSBGA Package

• See AN-1112 (SNVA009) for DSBGA Considerations

• Battery Powered Applications

• Industrial Applications

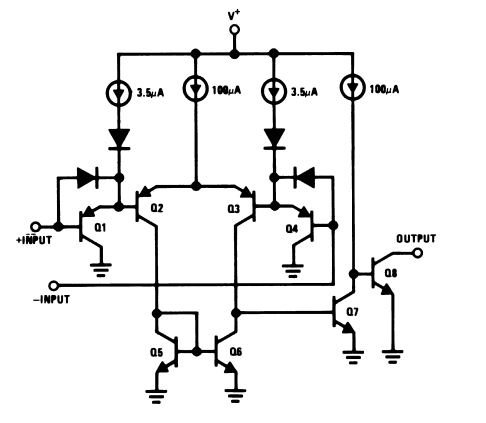

LM2903M Typical Application Circuit
