The LM2941S positive voltage regulator features the ability to source 1A of output current with a typical dropout voltage of 0.5V and a maximum of 1V over the entire temperature range.
LM2941S Voltage Regulator: Pinout, Specification, and Datasheet
IC REG LIN POS ADJ 1A DDPAK The LM2941S positive voltage regulator features the ability to source 1A of output current with a typical dropout voltage of 0.5V and a maximum of 1V over the entire temperature range.
30
Jun 17, 2021
Novia
LM2941S
15000In Stock
Min.: 1 Mult.: 1
Quick Links

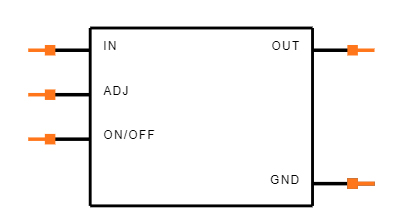

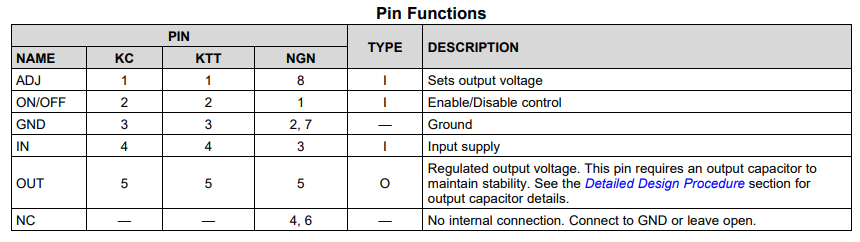

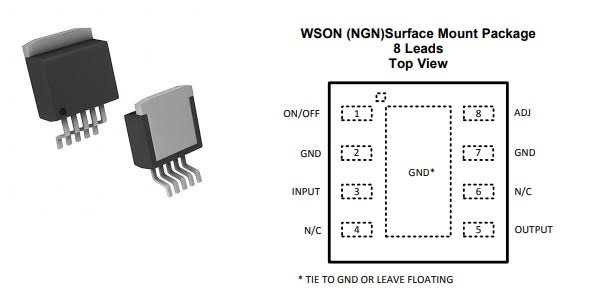

LM2941S Pinout
LM2941S CAD Model
Symbol

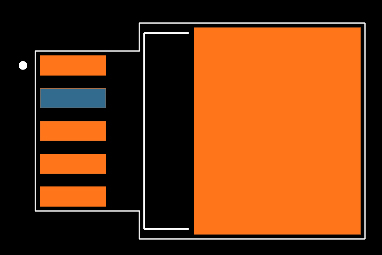

Footprint
LM2941S Description
A quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3V).
Designed also for vehicular applications, the LM2941, and all regulated circuitry are protected from reverse battery installations or two-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. Familiar regulator features such as short circuits and thermal overload protection are also provided.
LM2941S Features
- LLP space-saving package
- Output voltage adjustable from 5V to 20V
- Dropout voltage typically 0.5V @ IO = 1A
- Output current in excess of 1A
- Trimmed reference voltage
- Reverse battery protection
- Internal short circuit current limit
- Mirror image insertion protection
- P+ Product Enhancement tested
- TTL, CMOS compatible ON/OFF switch
LM2941S Appications
Industrial
Automobile
Specifications
Texas Instruments LM2941S technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM2941S.
LM2941S Tech Specifications
LM2941S Tech Specifications
Texas Instruments LM2941S technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM2941S.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | NRND (Last Updated: 4 days ago) | |
| Contact Plating | Lead, Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-6, D2Pak (5 Leads + Tab), TO-263BA | |
| Number of Pins | 5Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Position | SINGLE | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 235 | |
| Number of Functions | 1Function | |
| Current Rating | 1A | |
| Base Part Number | LM2941 | |
| Pin Count | 4 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 26V | |
| Output Voltage | 20V | |
| Output Type | Adjustable | |
| Max Output Current | 1A | |
| Output Configuration | Positive | |
| Quiescent Current | 15mA | |
| Control Features | Enable | |
| Max Output Voltage | 20V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | -15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | |
| Current - Quiescent (Iq) | 10mA | |
| Voltage Dropout (Max) | 1V @ 1A | |
| Reference Voltage | 1.313V | |
| Dropout Voltage | 500mV | |
| Dropout Voltage1-Nom | 0.5V | |
| Min Output Voltage | 5V | |
| Load Regulation-Max(%) | 0.78% | |
| Height | 4.83mm | |
| Length | 10.16mm | |
| Width | 8.42mm | |
| Thickness | 4.58mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |

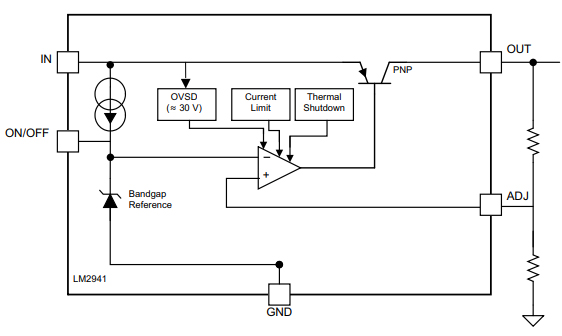

LM2941S Functional Block Diagram

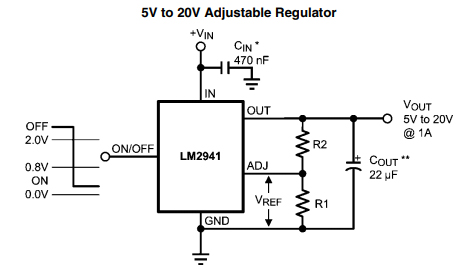

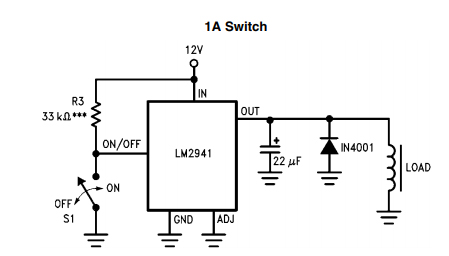

LM2941S Typical Application
LM2941S Manufacturer
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture, and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments LM2941S.
LM2941S Documents
LM2941S Documents
Download datasheets and manufacturer documentation for LM2941S
Datasheets
LM2941S-Texas-Instruments-datasheet-93694403.pdf
LM2941S-Texas-Instruments-datasheet-33010245.pdf
LM2941S-National-Semiconductor-datasheet-10844122.pdf
LM2941S-National-Semiconductor-datasheet-15940973.pdf
LM2941S-National-Semiconductor-datasheet-123693.pdf
LM2941S-National-Semiconductor-datasheet-8218243.pdf
LM2941S-National-Semiconductor-datasheet-9617.pdf
PCN Assembly/Origin
Mult Devices 12/Apr/2018
Frequently Asked Questions
1.What is the maximum voltage of the lm2941?
The LM2941 can supply up to 1 Amp of current. Note that the maximum input voltage is 26 Volts, so this component is not suitable for 24 Volt rated systems. Pictured above is the typical application circuit using the LM2941 as an adjustable voltage regulator. The reference voltage (measured across ADJ and GND) is 1.275V.
2.Is there a lm2941 adjustable low drop out voltage regulator?
Ideally, we want something with the adjustability of the LM317, but the low dropout characteristics of the LM2950. Fortunately, such a component exists and it is the LM2941 adjustable low drop-out voltage regulator.
3.When is the lm2941 in dropout mode?
Higher quiescent currents only exist when the regulator is in the dropout mode (VIN− VOUT≤3V). Designed also for vehicular applications, the LM2941, and all regulated circuitry are protected from reverse battery installations or two-battery jumps.
4.Is the lm2941 a CMOS compatible on / off switch?
TTL, CMOS Compatible ON/OFF Switch Designed also for vehicular applications, the LM2941, and all regulated circuitry are protected from reverse battery installations or two-battery jumps.
FAQ
1.What is the maximum voltage of the lm2941?
The LM2941 can supply up to 1 Amp of current. Note that the maximum input voltage is 26 Volts, so this component is not suitable for 24 Volt rated systems. Pictured above is the typical application circuit using the LM2941 as an adjustable voltage regulator. The reference voltage (measured across ADJ and GND) is 1.275V.
2.Is there a lm2941 adjustable low drop out voltage regulator?
Ideally, we want something with the adjustability of the LM317, but the low dropout characteristics of the LM2950. Fortunately, such a component exists and it is the LM2941 adjustable low drop-out voltage regulator.
3.When is the lm2941 in dropout mode?
Higher quiescent currents only exist when the regulator is in the dropout mode (VIN− VOUT≤3V). Designed also for vehicular applications, the LM2941, and all regulated circuitry are protected from reverse battery installations or two-battery jumps.
4.Is the lm2941 a CMOS compatible on / off switch?
TTL, CMOS Compatible ON/OFF Switch Designed also for vehicular applications, the LM2941, and all regulated circuitry are protected from reverse battery installations or two-battery jumps.
