Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-SOIC (0.154, 3.90mm Width) General Purpose 15V 0°C~70°C LM301A IC OPAMP GP 8SOIC
The LM301A is a general purpose operational amplifier that allows the user to choose the compensation capacitor best suited to his needs. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
LM301ADR2G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.40704 | $0.41 |
| 10+ | $0.384 | $3.84 |
| 100+ | $0.36227 | $36.23 |
| 500+ | $0.34176 | $170.88 |
| 1000+ | $0.32242 | $322.42 |
symbol
footprint

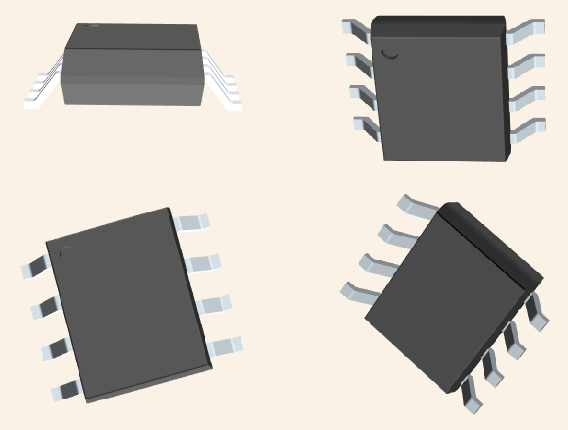

3D Model
The LM301A is a general purpose operational amplifier which is externally phase compensated, permit a choice of operation for optimum high frequency performance at a selected gain: unity gain compensation can be obtained with a single capacitor. The LM301A is a high performance monolithic operational amplifier constructed on a single silicon chip. It is intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performances in integrators, summing amplifiers and general feedback applications. With proper compensation, summing amplifier slew rates to 10 V/μs can be obtained.
This article provides you with a basic overview of the LM301A, including its pin descriptions, features and specifications, etc., to help you quickly understand what LM301A is.
• Low Input Offset Current: 20 nA Maximum Over Temperature Range
• External Frequency Compensation for Flexibility
• Class AB Output Provides Excellent Linearity
• Output Short Circuit Protection
• Guaranteed Drift Characteristics
• Pb−Free Packages are Available
ON Semiconductor LM301ADR2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM301ADR2G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 11 hours ago) | |
| Factory Lead Time | 2 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Number of Elements | 1 Element | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2005 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Packing Method | TAPE AND REEL | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | LM301A | |
| Pin Count | 8 | |
| Operating Supply Voltage | 18V | |
| Power Supplies | +-5/+-20V | |
| Operating Supply Current | 1.8mA | |
| Nominal Supply Current | 1.8mA | |
| Power Dissipation | 625mW | |
| Output Current | 10mA | |
| Slew Rate | 0.5V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 70nA | |
| Voltage - Supply, Single/Dual (±) | ±5V~18V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Halogen Free | Halogen Free | |
| Input Offset Voltage (Vos) | 7.5mV | |
| Gain Bandwidth Product | 1MHz | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 1000 kHz | |
| Voltage Gain | 104.08dB | |
| Average Bias Current-Max (IIB) | 0.03μA | |
| Power Supply Rejection Ratio (PSRR) | 70dB | |
| Low-Offset | NO | |
| Frequency Compensation | NO | |
| Voltage - Input Offset | 2mV | |
| Bias Current-Max (IIB) @25C | 0.25μA | |
| Height | 1.5mm | |
| Length | 5mm | |
| Width | 4mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

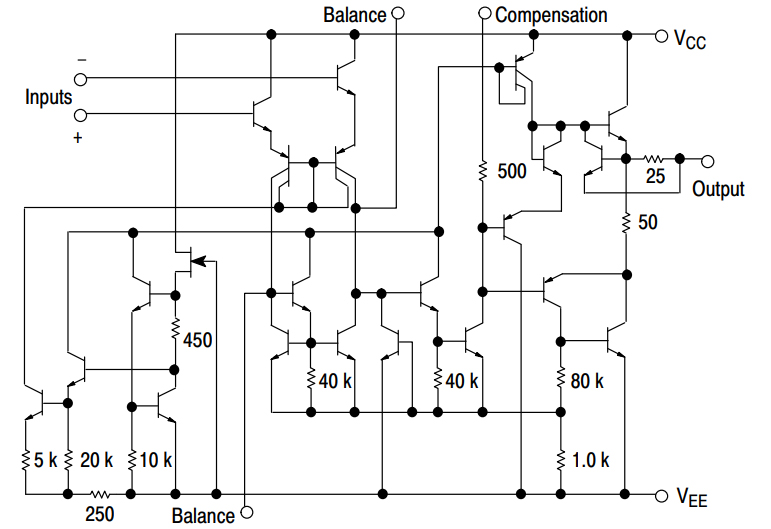

Representative Circuit Schematic
LM301AD. The replaceable model is LM301AD; Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, DIP-8; Manufacturer is AMD.
• Summing amplifiers
• Voltage followers
• Integrators
• Active filters
• Function generators
SOIC−8 NB package
soldering footprint
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for LM301ADR2G
