STMICROELECTRONICS LM311D Analogue Comparator, General Purpose, 1, 200 ns, 5V to15V, SOIC, 8 Pins
The LM311 is a single high-speed voltage comparator that has low input currents.
LM311D Linear Comparator: Feature, Specification, and Datasheet
STMICROELECTRONICS LM311D Analogue Comparator, General Purpose, 1, 200 ns, 5V to15V, SOIC, 8 Pins
144
Jun 8, 2021
Reuben
LM311D
100In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.78768 | $0.79 |
| 10+ | $0.7431 | $7.43 |
| 100+ | $0.70103 | $70.1 |
| 500+ | $0.66135 | $330.68 |
| 1000+ | $0.62392 | $623.92 |
Unit Price:$0.78768
Subtotal: $0.79
Quick Links

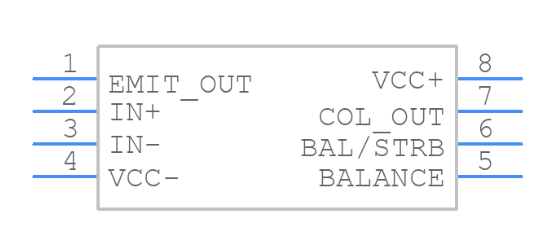

LM311D CAD Model
Symbol
Footprint

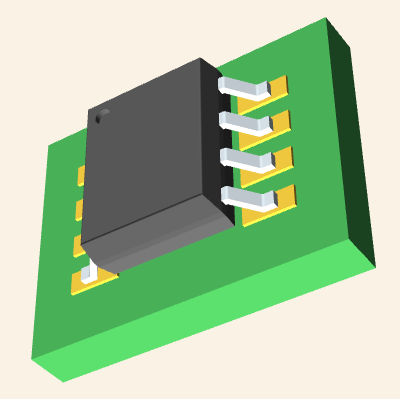

3D Model
LM311D Description
These devices are designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from the system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
LM311D Features
- Maximum input current: 150nA
- Maximum offset current: 20nA
- Differential input voltage range: ±30V
- Power consumption:135mW at ±15V
- Supply voltage: +5V to ±15V
- Output current: 50mA
Specifications
STMicroelectronics LM311D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM311D.
LM311D Tech Specifications
LM311D Tech Specifications
STMicroelectronics LM311D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM311D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 25 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Number of Elements | 1 Element | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | General Purpose | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Max Power Dissipation | 710mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Base Part Number | LM311 | |
| Pin Count | 8 | |
| Output Type | DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL | |
| Operating Supply Voltage | 15V | |
| Number of Circuits | 1Circuit | |
| Nominal Supply Current | 7.5mA | |
| Power Dissipation | 710mW | |
| Output Current | 50mA | |
| Max Supply Current | 6mA | |
| Propagation Delay | 200 ns | |
| Quiescent Current | 7.5mA | |
| Turn On Delay Time | 200 ns | |
| Response Time | 200 ns | |
| Voltage - Supply, Single/Dual (±) | 5V~30V ±2.5V~15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current per Channel | 200pA | |
| Input Offset Voltage (Vos) | 7.5mV | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Voltage Gain | 106.02dB | |
| Average Bias Current-Max (IIB) | 0.3μA | |
| Max Input Current | 250nA | |
| Dual Supply Voltage | 9V | |
| Input Bias Current | 250nA | |
| Voltage - Input Offset (Max) | 7.5mV @ ±15V | |
| Current - Input Bias (Max) | 0.25μA @ ±15V | |
| Height | 1.25mm | |
| Length | 5mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LM311D Functional Block Diagram

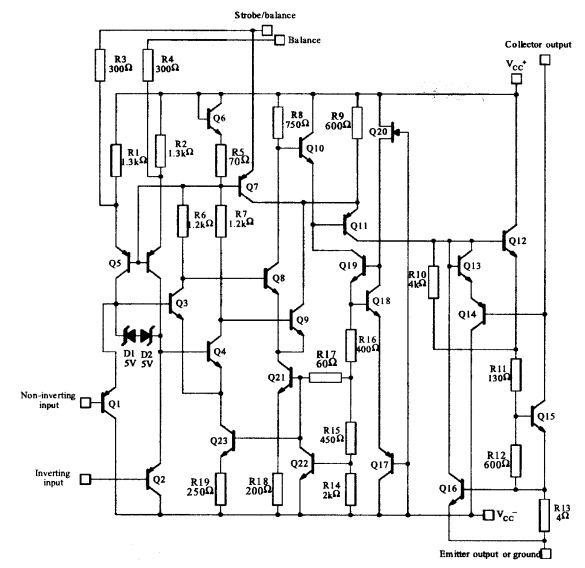

LM311D Schematic Diagram

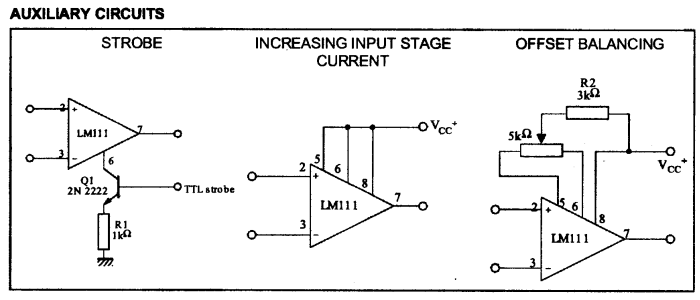

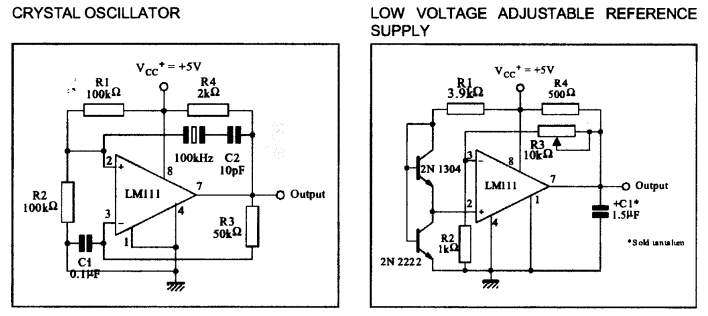

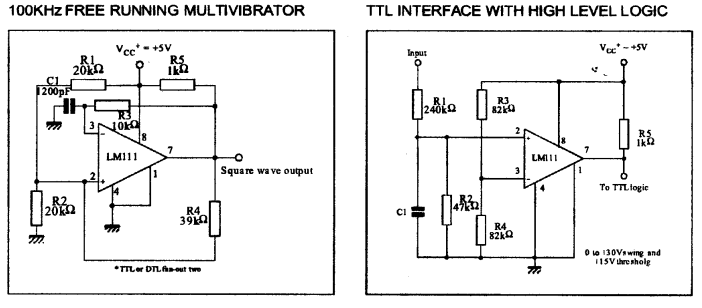

LM311D Typical Apllication Schematic

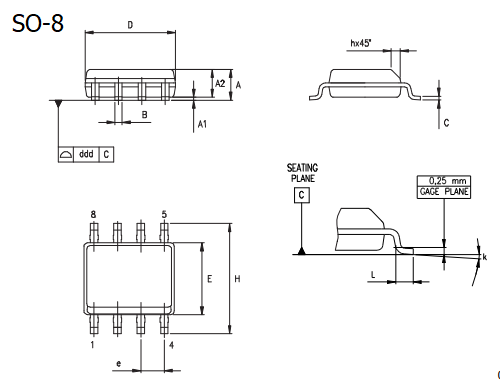

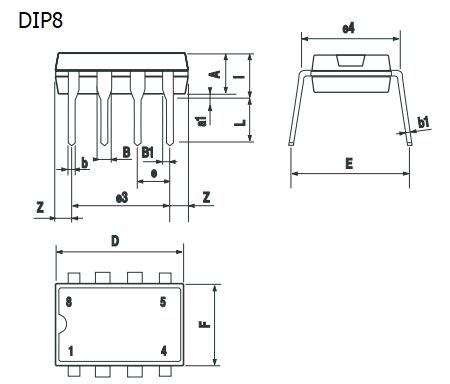

LM311D Package
LM311D Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics LM311D.
LM311D Documents
LM311D Documents
Download datasheets and manufacturer documentation for LM311D
