The LM317LZ is an adjustable output, three-terminal positive linear voltage regulator. This article mainly introduces circuits, pinout, datasheet and other detailed information about STMicroelectronics LM317LZ.
LM317LZX
The LM317LZ is an adjustable output, three-terminal positive linear voltage regulator. This voltage regulator requires only two external resistors to set the output voltage. The LM317LZ is a monolithic integrated circuit designed for use as positive adjustable voltage regulators in SO-8 and TO-92 packages. It can deliver up to 100 mA of load current and has a 1.2 to 37 V output voltage range. The nominal output voltage is chosen using only a resistive divider, making the device extremely simple to use and removing the need to stock a large number of fixed regulators.

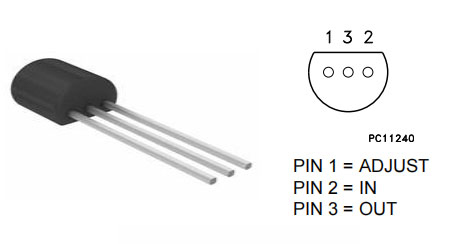

The following figure is LM317LZ Pinout.
The followings are the Symbol, Footprint, and 3D Model of LM317LZ.
Symbol
Footprint
3D Model
• Output voltage range: 1.2 to 37 V
• Output current up to 100 mA
• Line regulation typ. 0.01%
• Load regulation typ. 0.1%
• Thermal overload protection
• Short-circuit protection
• Output transition safe area compensation
• Floating operation for high voltage applications
STMicroelectronics LM317LZ technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM317LZ.
ON Semiconductor LM317LZX technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM317LZX.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) | |
| Number of Pins | 3Pins | |
| Weight | 240mg | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2012 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packing Method | TAPE AND REEL | |
| Terminal Position | BOTTOM | |
| Terminal Form | WIRE | |
| Number of Functions | 1Function | |
| Current Rating | 100mA | |
| Base Part Number | LM317 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 40V | |
| Output Voltage | 37V | |
| Output Type | Adjustable | |
| Max Output Current | 200mA | |
| Output Configuration | Positive | |
| Max Output Voltage | 37V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 4.2V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protection Features | Over Temperature, Short Circuit | |
| PSRR | 80dB (120Hz) | |
| Reference Voltage | 1.3V | |
| Dropout Voltage1-Nom | 3V | |
| Min Output Voltage | 1.2V | |
| Power Supply Rejection Ratio (PSRR) | 65dB | |
| Height | 5.33mm | |
| Length | 5.2mm | |
| Width | 4.19mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
The Schematic Diagram of LM317LZ is shown as follows.
Schematic Diagram
The following figure is LM317LZ Test Circuit.
Test Circuit
| Part Number | Description | Manufacturer |
| LM317LZXPOWER CIRCUITS | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PBCY3, LEAD FREE, TO-92, 3 PIN | Fairchild Semiconductor Corporation |
| LM317LZRMGPOWER CIRCUITS | Linear Voltage Regulator, 100 mA, High PSRR, Adjustable, Positive TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-FNFLD | onsemi |
| LM317LZPOWER CIRCUITS | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PBCY3, LEAD FREE, TO-92, 3 PIN | Fairchild Semiconductor Corporation |
• Power Management
The following figure is LM317LZ Package.
STMicroelectronics, headquartered in Plan-les-Ouates, Switzerland, near Geneva, is a multinational electronics and semiconductors firm. The company was created in 1987 by the merger of two government-owned semiconductor companies: "Thomson Semiconductors" in France and "SGS Microelettronica" in Italy. It is known as "ST" and is the most profitable semiconductor chip producer in Europe. While the corporate headquarters and EMEA regional offices of STMicroelectronics are in Geneva, the holding company, STMicroelectronics N.V., is based in the Netherlands.
The company's US headquarters are located in Coppell, Texas. The headquarters for the Asia-Pacific region is in Singapore, while Japan and Korea's activities are in Tokyo. The company's China regional headquarters are based in Shanghai.
Download datasheets and manufacturer documentation for STMicroelectronics LM317LZ.
