PMIC - Voltage Regulators - Linear TO-220-3 0°C~125°C TJ LM317M 4 % Over Current, Over Temperature 80dB ~ 65dB (120Hz) IC REG LIN POS ADJ 500MA TO220AB
95
Oct 27, 2021
Cleveland Whyet
PMIC - Voltage Regulators - Linear TO-220-3 0°C~125°C TJ LM317M 4 % Over Current, Over Temperature 80dB ~ 65dB (120Hz) IC REG LIN POS ADJ 500MA TO220AB
The LM317M is an adjustable three−terminal positive voltage regulator. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
LM317MTG
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.99388 | $0.99 |
| 10+ | $0.93762 | $9.38 |
| 100+ | $0.88455 | $88.46 |
| 500+ | $0.83448 | $417.24 |
| 1000+ | $0.78724 | $787.24 |

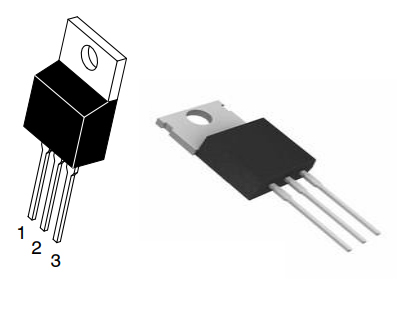

Pinout
PCB Symbol

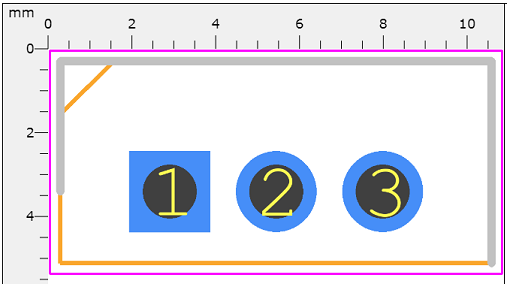

PCB Footprint

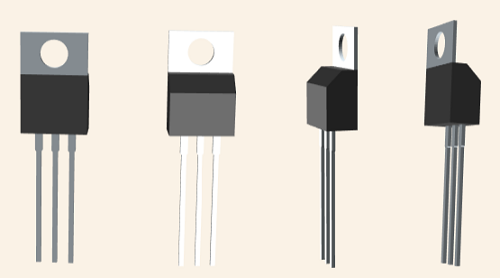

3D Model
The LM317M is an adjustable three−terminal positive voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof. The LM317M serves a wide variety of applications including local, on−card regulation. This device also makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317M can be used as a precision current regulator.
This article provides you with a basic overview of the LM317M voltage regulator, including its pin descriptions, features and specifications, etc., to help you quickly understand what LM317M is.
● Output Current in Excess of 500 mA
● Output Adjustable between 1.2 V and 37 V
● Internal Thermal Overload Protection
● Internal Short Circuit Current Limiting
● Output Transistor Safe−Area Compensation
● Floating Operation for High Voltage Applications
● Eliminates Stocking Many Fixed Voltages
● NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q100 Qualified and PPAP Capable
● Pb−Free Devices
ON Semiconductor LM317MTG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM317MTG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Operating Temperature | 0°C~125°C TJ | |
| Packaging | Tube | |
| Published | 2006 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Packing Method | RAIL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | SINGLE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.54mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | LM317M | |
| Pin Count | 3 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 40V | |
| Output Voltage | 37V | |
| Output Type | Adjustable | |
| Max Output Current | 500mA | |
| Operating Supply Voltage | 40V | |
| Output Configuration | Positive | |
| Accuracy | 4 % | |
| Max Output Voltage | 37V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 4.2V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protection Features | Over Current, Over Temperature | |
| Current - Quiescent (Iq) | 10mA | |
| Halogen Free | Halogen Free | |
| PSRR | 80dB ~ 65dB (120Hz) | |
| Reference Voltage | 1.3V | |
| Dropout Voltage | 2.1V | |
| Dropout Voltage1-Nom | 3V | |
| Min Output Voltage | 1.2V | |
| Power Supply Rejection Ratio (PSRR) | 80dB | |
| Output Voltage Accuracy | 4 % | |
| Height | 15.748mm | |
| Length | 10.2616mm | |
| Width | 4.826mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

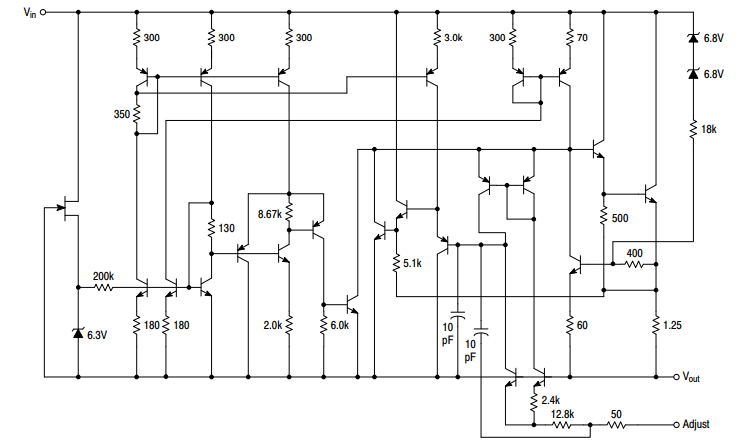

Representative Schematic Diagram

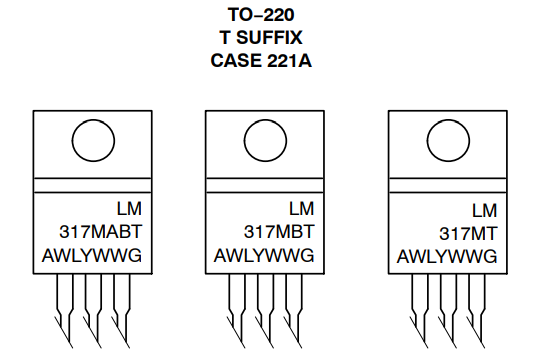

Marking Diagrams

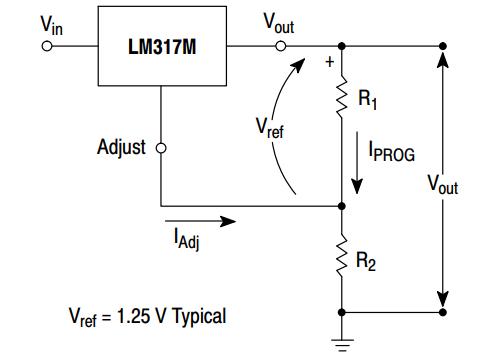

Basic Circuit Configuration

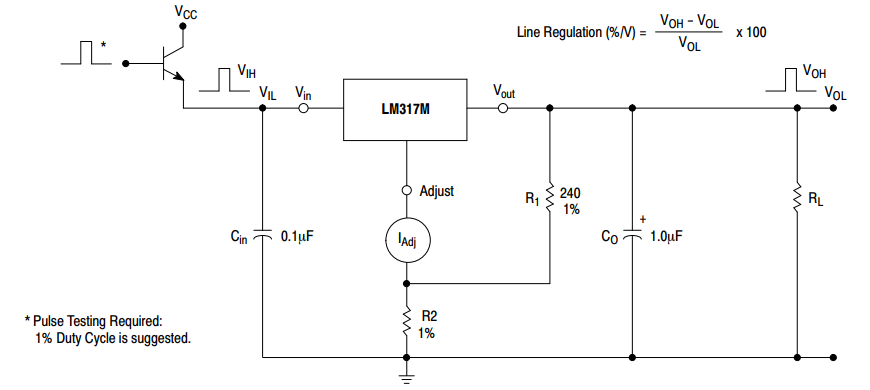

Line Regulation and Line Test Circuit

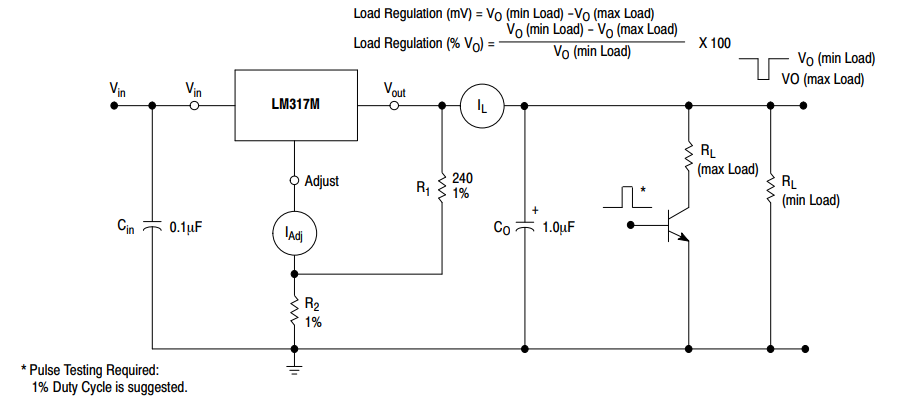

Load Regulation and Load Test Circuit

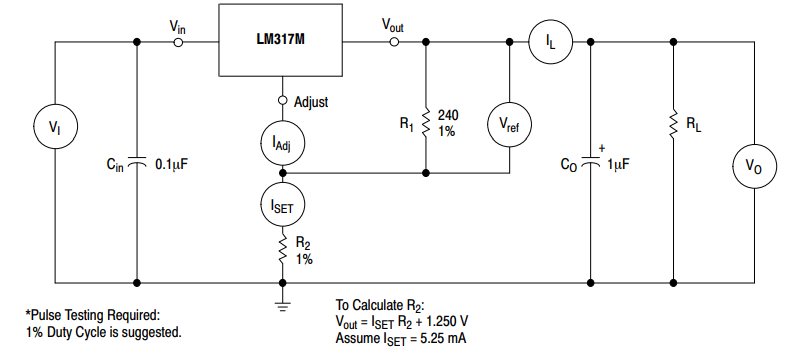

Standard Test Circuit

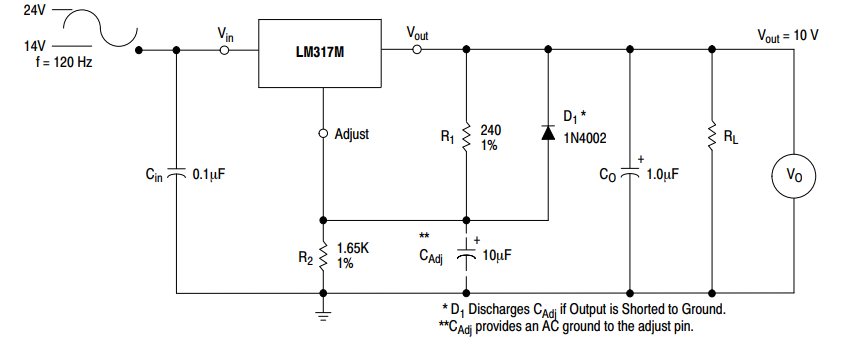

Ripple Rejection Test Circuit
| Model number | Manufacturer | Description |
| 7703401TA | TT Electronics Resistors | Adjustable Positive Standard Regulator, 1.2V Min, 1.3V Max, TO-257, 3 PIN |
| LM117H/883C | Texas Instruments | 1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, MBCY3, METAL CAN, TO-39, 3 PIN |
| 7703401UA | International Rectifier | Adjustable Positive Standard Regulator, 1.5V Min, 5.5V Max, BIPolar |
| LM317HVG | TT Electronics Power and Hybrid / Semelab Limited | ADJUSTABLE POSITIVE REGULATOR, MSFM3, METAL, TO-257, 3 PIN |
| LM317KMDC | National Semiconductor Corporation | IC VREG 1.2 V-37 V ADJUSTABLE POSITIVE REGULATOR, UUC, DIE, Adjustable Positive Single Output Standard Regulator |
| LM317H | Texas Instruments | 1.5-A, 40-V, adjustable linear voltage regulator 3-TO 0 to 0 |
| LM117MHVHR1 | TT Electronics Resistors | Adjustable Positive Standard Regulator, MBCY3, TO-39, 3 PIN |
| LM117H-BSS2 | TT Electronics Resistors | Adjustable Positive Standard Regulator, MBCY3, TO-39, 3 PIN |
| LM317HVK | Linear Technology | IC VREG 1.2 V-57 V ADJUSTABLE POSITIVE REGULATOR, MBFM2, METAL CAN, TO-3, 2 PIN, Adjustable Positive Single Output Standard Regulator |
| SG117IG/883B | Linfinity Microelectronics | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSFM3, TO-257, 3 PIN |
● Adjustable Current Limiter
● 5 V Electronic Shutdown Regulator
● Slow Turn−On Regulator
● Current Regulator

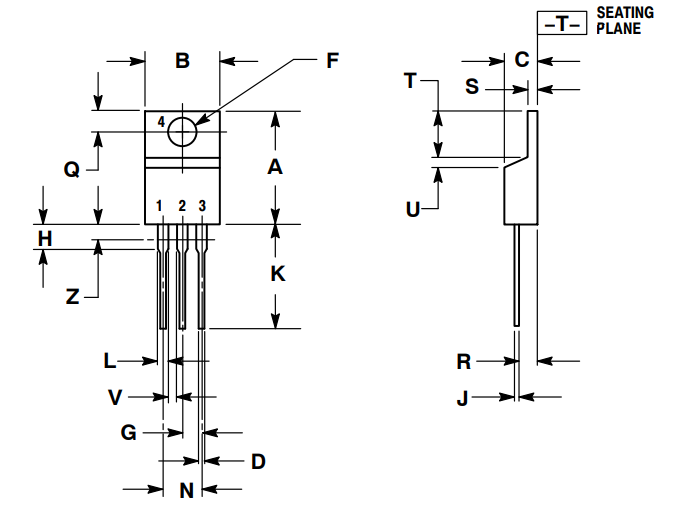

TO−220 Package
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for LM317MTG
