LM323K Voltage Regulator: LM323K, Datasheet, Pinout, Equivalent

The pinout of LM323K is shown below:

LM323K Pinout

LM323K Footprint

LM323K 3D Model

The LM323K are three-terminal positive voltage regulators with a preset 5 V output and a load driving capability of 3 A. New circuit design and processing techniques are used to provide the high output current without sacrificing the regulation characteristics of lower current devices. The 3 A regulator is virtually blowout proof. Current limiting, power limiting and thermal shutdown provide the same high level of reliability obtained with these techniques in the LM209, 1 A regulator. An overall worst-case specification for the combined effects of input voltage, load current, ambient temperature, and power dissipation ensure that the LM323K will perform satisfactorily as a system element.

■Output current: 3 A

■ Internal current and thermal limiting

■ Typical output impedance: 0.01 W

■ Minimum input voltage: 7.5 V

■ Power dissipation: 30 W

The equivalent for LM323K:

• LM317

• LM7805

Connect an input filter capacitor of 0.33uF or more and an output filter capacitor of 0.1uF or more based on the output current to get a regulated +5V on the output pin when using an LM323K as a voltage regulator. Just remember that the input voltage should be at least 7.5V.

When coupled with a resistor, the LM323K can be utilized as a constant current source as well as a fixed voltage regulator. When used with an  Op-Amp, it may also operate as a variable voltage regulator, making it useful for a wide range of applications.

The application circuit of LM323K is shown below:

LM323K Application Circuit-Basic 3 A regulator

LM323K Application Circuit-Trimming output to 5 V

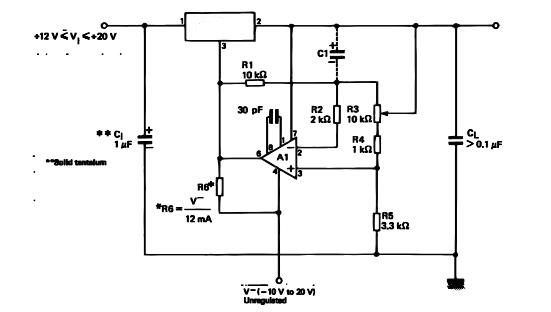

LM323K Application Circuit-Adjustable regulator 0 - 10 V  3 A

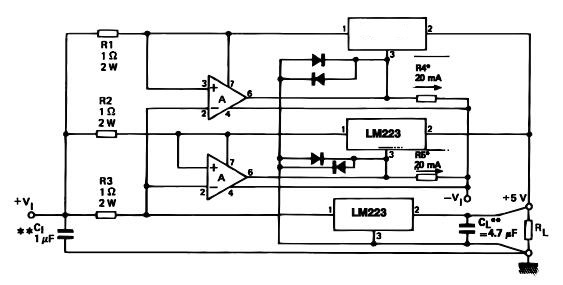

LM323K Application Circuit-10 A regulator with complete overload protection

STMicroelectronics LM323K technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM323K.

LM323K Package
