LM324N Operational Amplifiers: Pinout, Datasheet and Features

The LM324N consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages.

Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.

Symbol

Footprint

3D Model

• Wide gain bandwidth: 1.3 MHz

• Input common mode voltage range includes ground

• Large voltage gain: 100 dB

• Very low supply current/amplifier: 375 µA

• Low input bias current: 20 nA

• Low input voltage: 3 mV max.

• Low input offset current: 2 nA

• Wide power supply range:

– Single supply: 3 V to 30 V

– Dual supplies: ±1.5 V to ±15 V

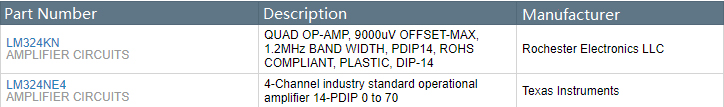

STMicroelectronics LM324N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM324N.

• Transducer Amplifiers

• Filter circuits, Voltage followers

• Integrator, Differentiator, Summer, adder, Voltage follower, etc.,

• DC gain blocks

• Comparators (Loop control & regulation)

SO14 package outline

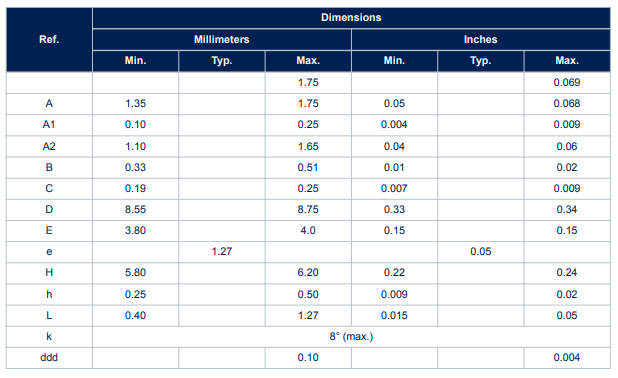

SO14 package mechanical data
