IC VOLT COMPARATOR QUAD 14-SOIC
This family of devices consists of four independent precision-voltage comparators with an offset voltage specification as low as 2 mV maximum for LM339A, LM239A, and LM139A.
LM339D Comparator: Feaure, Application, Datasheet
IC VOLT COMPARATOR QUAD 14-SOIC This family of devices consists of four independent precision-voltage comparators with an offset voltage specification as low as 2 mV maximum for LM339A, LM239A, and LM139A.
293
Jun 8, 2021
Rodney
LM339D
180In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.13681 | $1.14 |
| 10+ | $1.07246 | $10.72 |
| 100+ | $1.01176 | $101.18 |
| 500+ | $0.95449 | $477.24 |
| 1000+ | $0.90046 | $900.46 |
Unit Price:$1.13681
Subtotal: $1.14
Quick Links
LM339D CAD Model

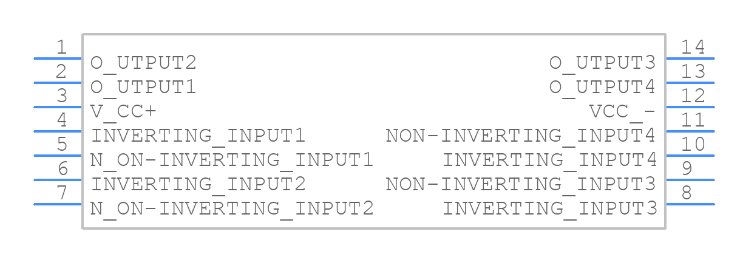

Symbol

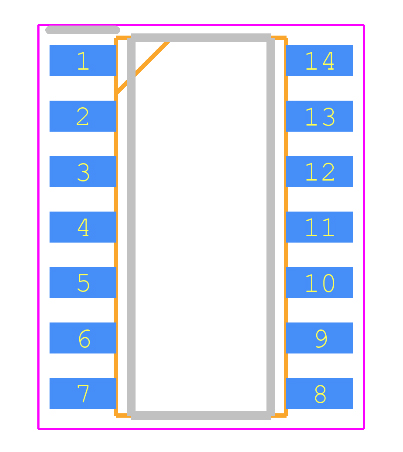

Footprint

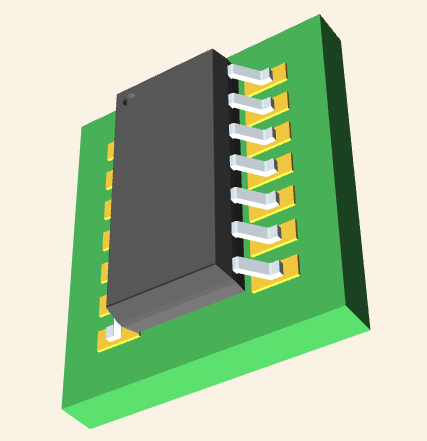

3D Model
LM339D Description
Each comparator has been designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible.
These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
LM339D Features
• Wide single supply voltage range or dual supplies for all devices: +2 to +36 V or ±1 V to ±18 V
• Very low supply current (1.1 mA) independent of supply voltage
• Low input bias current: 25 nA typ
• Low input offset current: ±5 nA typ
• Low input offset voltage: ±1 mV typ
• Input common-mode voltage range includes ground
• Low output saturation voltage: 250 mV typ; (ISINK = 4 mA)
• Differential input voltage range equal to the supply voltage
• TTL, DTL, ECL, MOS, CMOS compatible outputs
Specifications
STMicroelectronics LM339D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM339D.
LM339D Tech Specifications
LM339D Tech Specifications
STMicroelectronics LM339D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM339D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 25 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 14Pins | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Type | General Purpose | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Max Power Dissipation | 830mW | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 4Functions | |
| Supply Voltage | 5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | LM339 | |
| Pin Count | 14 | |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL | |
| Power Supplies | 5V | |
| Number of Circuits | 4Circuits | |
| Nominal Supply Current | 2mA | |
| Power Dissipation | 830mW | |
| Output Current | 16mA | |
| Max Supply Current | 2mA | |
| Propagation Delay | 1.3 μs | |
| Quiescent Current | 2.5mA | |
| Turn On Delay Time | 1.3 μs |
| Product Attribute | Attribute Value | |
|---|---|---|
| Response Time | 1.3 μs | |
| Voltage - Supply, Single/Dual (±) | 2V~32V ±1V~16V | |
| Output Current per Channel | 100pA | |
| Input Offset Voltage (Vos) | 5mV | |
| Voltage Gain | 106.02dB | |
| Supply Voltage Limit-Max | 32V | |
| Max Input Current | 250nA | |
| Input Bias Current | 250nA | |
| Voltage - Input Offset (Max) | 5mV @ 30V | |
| Current - Input Bias (Max) | 0.25μA @ 5V | |
| Current - Output (Typ) | 16mA @ 5V | |
| Height | 1.65mm | |
| Length | 8.75mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LM339D Schematic Diagram

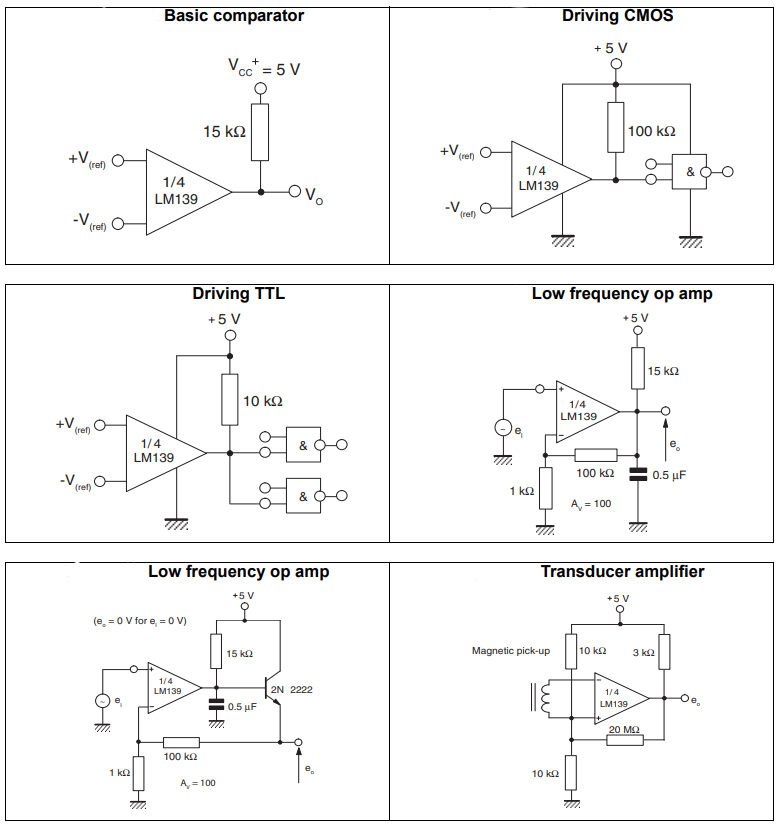

LM339D Typical Application

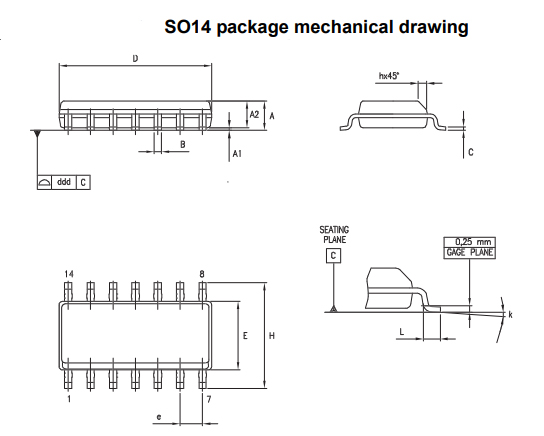

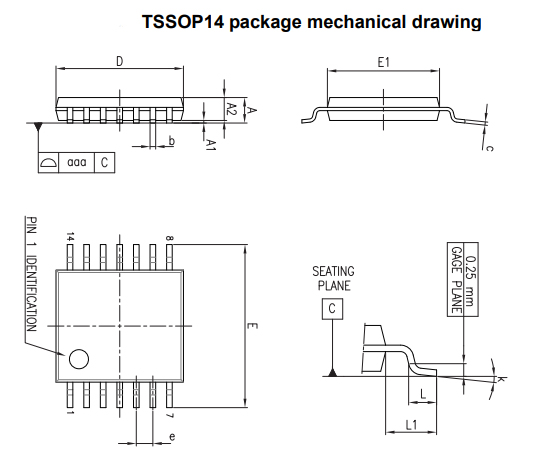

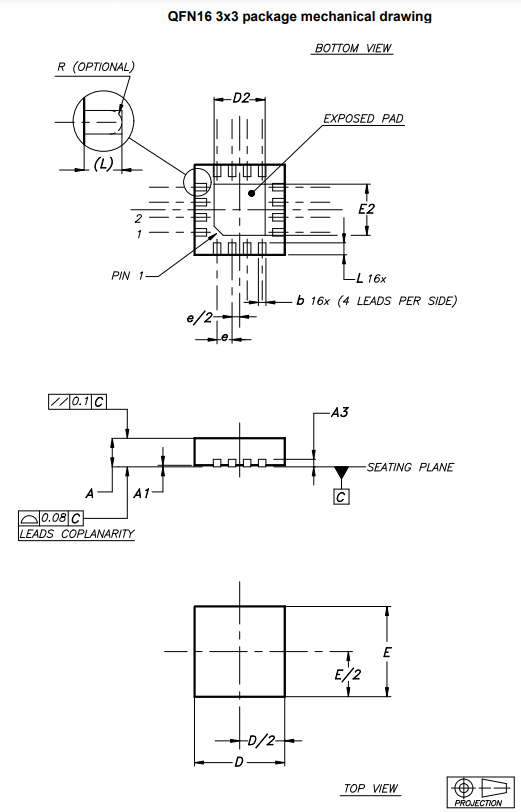

LM339D Package
LM339D Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics LM339D.
LM339D Documents
LM339D Documents
Download datasheets and manufacturer documentation for LM339D
Simulation Models
LMx39 Spice Model
Frequently Asked Questions
1.What is the use of LM339?
LM339 is used in applications where a comparison between two voltage signals is required. In addition with four of those comparators on board, the device can compare four pairs of voltage signals at a time which comes in handy in some applications.
2.What is the difference between LM324 and LM339?
The LM324 has a complementary output while the LM339 is an open collector. In the complementary output, current can flow in either direction as required (either source or sink) while the open collector output can only sink current.
3.How many comparators does a 339 IC contain?
LM339 IC has four inbuilt comparators. It is a 14-pin chip as shown in the below pin configuration.
4.What is the difference between LM393 and LM358?
LM358 is op-amp, but lm393 is a comparator, there are major differences between them; the comparator only compares levels, the output is either 1 or 0, and mostly open collector output (sinks current). Op-amps can be used as comparators also, but they tend to work better in amplification and other op-amp stuff.
5.What is the pinout for the LM339 op amp?
The pinout for the LM339 op-amp is shown below: The pinout is very straightforward. The 4 op amps each have 3 pins. They have 2 inputs to compare input is greater. And they have an output whose voltage is dependent on the comparison of the 2 inputs.
FAQ
1.What is the use of LM339?
LM339 is used in applications where a comparison between two voltage signals is required. In addition with four of those comparators on board, the device can compare four pairs of voltage signals at a time which comes in handy in some applications.
2.What is the difference between LM324 and LM339?
The LM324 has a complementary output while the LM339 is an open collector. In the complementary output, current can flow in either direction as required (either source or sink) while the open collector output can only sink current.
3.How many comparators does a 339 IC contain?
LM339 IC has four inbuilt comparators. It is a 14-pin chip as shown in the below pin configuration.
4.What is the difference between LM393 and LM358?
LM358 is op-amp, but lm393 is a comparator, there are major differences between them; the comparator only compares levels, the output is either 1 or 0, and mostly open collector output (sinks current). Op-amps can be used as comparators also, but they tend to work better in amplification and other op-amp stuff.
5.What is the pinout for the LM339 op amp?
The pinout for the LM339 op-amp is shown below: The pinout is very straightforward. The 4 op amps each have 3 pins. They have 2 inputs to compare input is greater. And they have an output whose voltage is dependent on the comparison of the 2 inputs.
