LM339N Comparator: Pinout, Datasheet, and Functional Block Diagram

The LM339N Comparator consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other opencollector outputs to achieve wired-AND relationships.

Symbol

Footprint

3D Model

• Wide single supply voltage range or dual supplies for all devices: +2 to +36 V or ±1 V to ±18 V

• Very low supply current (1.1 mA) independent of supply voltage

• Low input bias current: 25 nA typ

• Low input offset current: ±5 nA typ

• Low input offset voltage: ±1 mV typ

• Input common-mode voltage range includes ground

• Low output saturation voltage: 250 mV typ; (ISINK = 4 mA)

• Differential input voltage range equal to the supply voltage

• TTL, DTL, ECL, MOS, CMOS compatible outputs

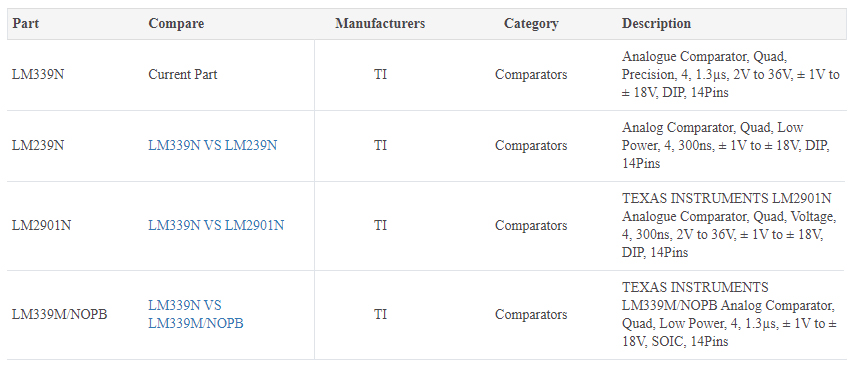

Texas Instruments LM339N technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM339N.

• Industrial

• Automotive

• Infotainment and Clusters

• Body Control Modules

• Power Supervision

• Oscillators

• Peak Detectors

• Logic Voltage Translation

• Typical Applications:

Single-ended and Differential Comparator Configurations

As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.

Download datasheets and manufacturer documentation for Texas Instruments LM339N.
