Linear - Comparators DIP 5V Comparator Quad 18V/36V 14-Pin PDIP Rail
47
Oct 28, 2021
Amelia Butler
Let's talk about comparators
Linear - Comparators DIP 5V Comparator Quad 18V/36V 14-Pin PDIP Rail
The LM339S Single Supply Quad comparator is designed for use in level detection, low−level sensing and memory applications in consumer and industrial electronic applications. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
LM339SNG
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.96754 | $0.97 |
| 10+ | $0.91277 | $9.13 |
| 100+ | $0.8611 | $86.11 |
| 500+ | $0.81236 | $406.18 |
| 1000+ | $0.76638 | $766.38 |
Pinout
Footprint

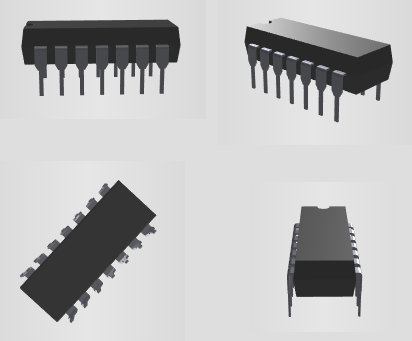

3D Model
The LM339S Single Supply Quad Comparator is designed for use in level detection, low−level sensing and memory applications in consumer and industrial electronic applications. These quad comparators feature high gain, wide bandwidth characteristics. This gives the device oscillation tendencies if the outputs are capacitively coupled to the inputs via stray capacitance.
This article provides you with a basic overview of the LM339S Single Supply Quad Comparator, including its pin descriptions, features and specifications, etc., to help you quickly understand what LM339S is.
● Single or Split Supply Operation
● Low Input Bias Current: 25 nA (Typ)
● Low Input Offset Current: ±5.0 nA (Typ)
● Low Input Offset Voltage
● Input Common Mode Voltage Range to GND
● Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
● TTL and CMOS Compatible
● The Device is Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
ON Semiconductor LM339SNG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM339SNG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 day ago) | |
| Factory Lead Time | 4 Weeks | |
| Mount | Through Hole | |
| Package / Case | DIP | |
| Number of Pins | 14Pins | |
| Number of Elements | 4 Elements | |
| Usage Level | Commercial grade | |
| Packaging | Tube | |
| Published | 2002 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | General Purpose | |
| Terminal Finish | Tin (Sn) | |
| Max Operating Temperature | 70°C | |
| Min Operating Temperature | 0°C | |
| Terminal Position | DUAL | |
| Terminal Form | PIN/PEG | |
| Number of Functions | 4Functions | |
| Supply Voltage | 5V | |
| Qualification Status | Not Qualified | |
| Output Type | TTL | |
| Power Supplies | 5V | |
| Temperature Grade | COMMERCIAL | |
| Max Supply Voltage | 36V | |
| Output Current | 16mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 2.5mA | |
| Response Time | 1000 ns | |
| Input Offset Voltage (Vos) | 5mV | |
| Voltage Gain | 100dB | |
| Average Bias Current-Max (IIB) | 0.25μA | |
| Max Dual Supply Voltage | 18V | |
| Bias Current-Max (IIB) @25C | 0.25μA | |
| Input Bias Current | 250nA | |
| Length | 19.18mm | |
| Height Seated (Max) | 5.33mm | |
| Width | 7.62mm | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |

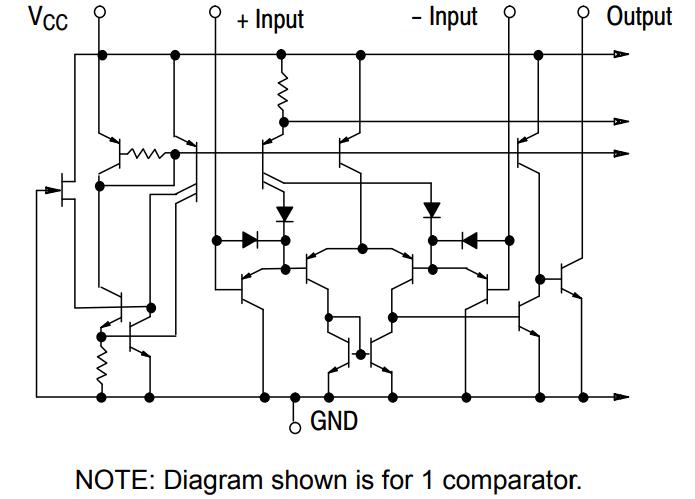

Circuit Schematic

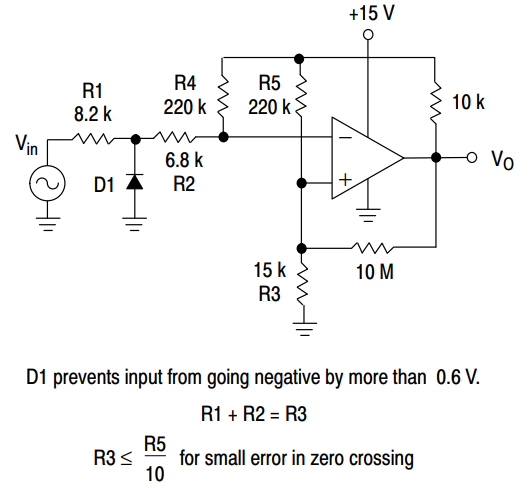

Zero Crossing Detector (Single Supply)

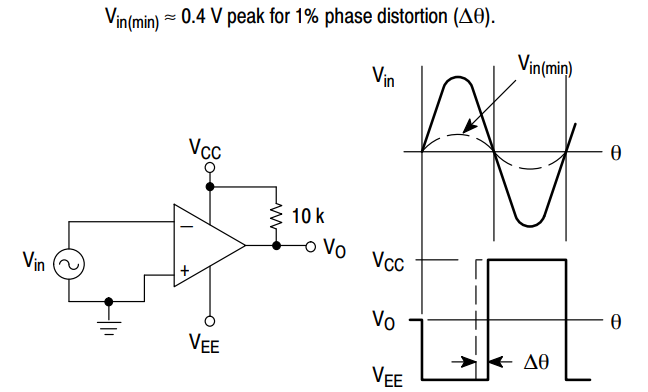

Zero Crossing Detector (Split Supplies)

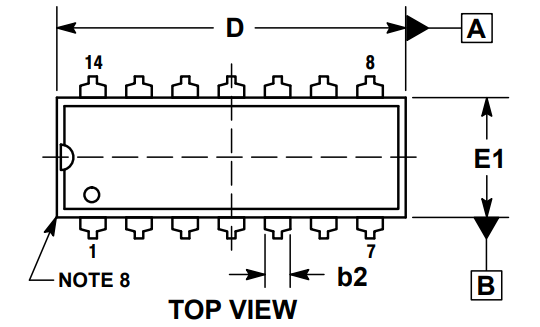

Top View

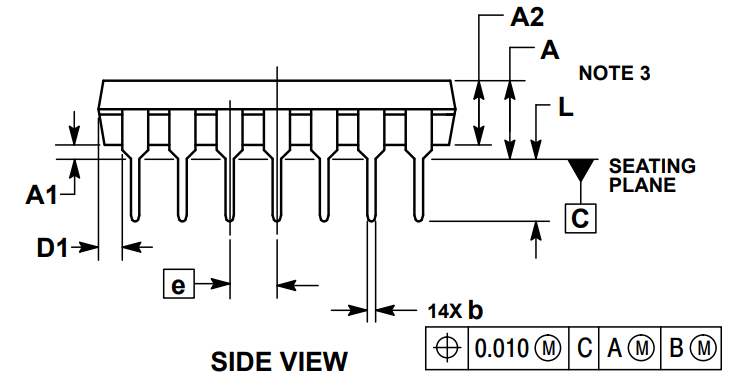

Side View

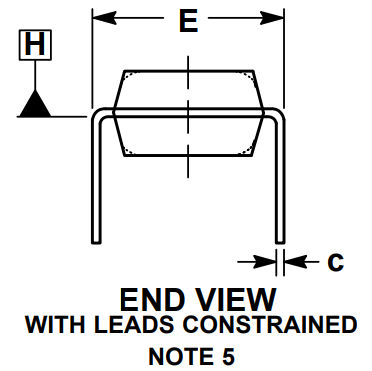

End View

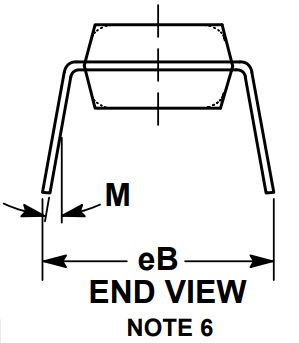

End View

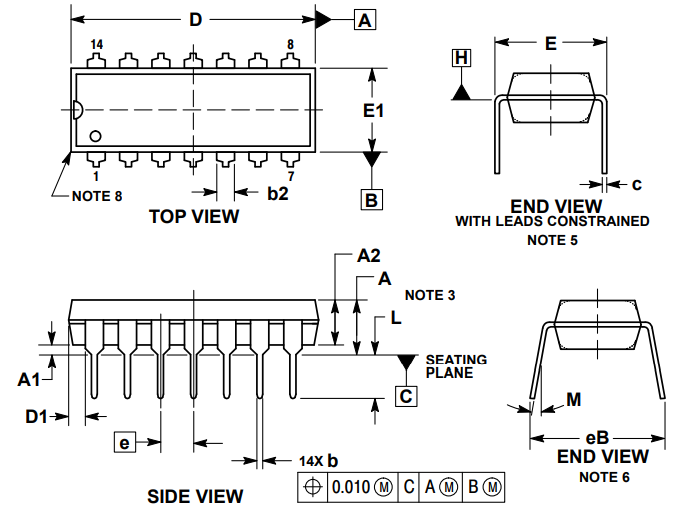

PDIP−14 package
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for LM339SNG
