SENSOR ANALOG 0C-100C TO92-3
Hello everyone, I am Rose. Today we will have a discussion about LM35. LM35 is a precision centigrade temperature sensors. This article mainly introduce pinout, alternatives, datasheet and other detailed information about Texas Instruments LM35.
LM35DZ/LFT1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.32806 | $2.33 |
| 10+ | $2.19628 | $21.96 |
| 100+ | $2.07197 | $207.2 |
| 500+ | $1.95468 | $977.34 |
| 1000+ | $1.84404 | $1844.04 |

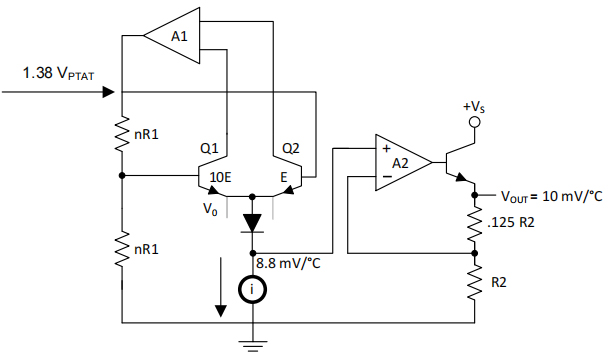

LM35 is a precision centigrade temperature sensors, It shows values in the form of output voltages instead of degree Celsius. LM35 shows high voltage values than thermocouples and may not need that the output voltage is amplified.
The output voltage of LM35 is proportional to the Celsius temperature. The scale factor is .01 V/°C. One most important characteristic is that it draws just 60 microamps from its supply and acquires a low self-heating capacity.

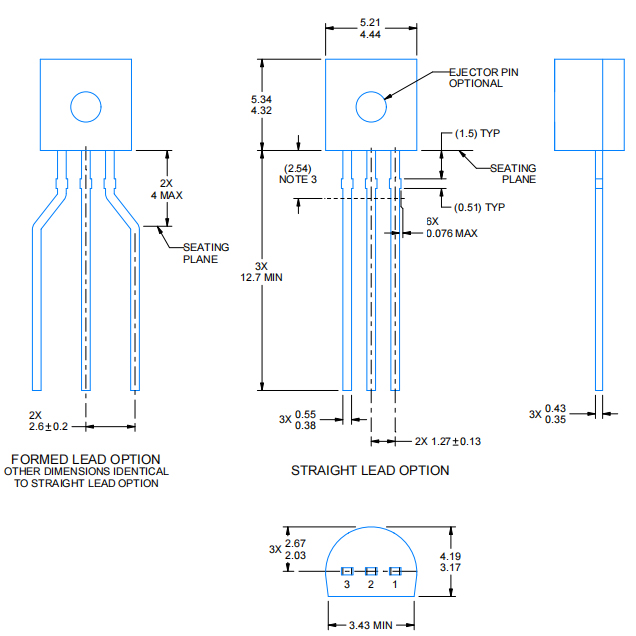

LM35 temperature sensor available in many different packages like T0-46 metal transistor-like package, TO-92 plastic transistor-like package, 8-lead surface mount SO-8 small outline package.
Symbol
Footprint
3D Model
●Minimum and Maximum Input Voltage is 35V and -2V respectively. Typically operates at 5V.
●Can measure temperature ranging from -55°C to 150°C
●Output voltage is directly proportional (Linear) to temperature (i.e.) there will be a rise of 10mV (0.01V) for every 1°C rise in temperature.
●±0.5°C Accuracy
●Drain current is less than 60uA
●Low cost temperature sensor
●Small and hence suitable for remote applications
●Available in TO-92, TO-220, TO-CAN and SOIC package
Texas Instruments LM35DZ/LFT1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM35DZ/LFT1.
Texas Instruments LM35DZ/LFT1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM35DZ/LFT1.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Test Conditions | 25°C | |
| Operating Temperature | 0°C~100°C | |
| Packaging | Bulk | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Temperature Coefficient | POSITIVE ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Supply | 4V~30V | |
| Base Part Number | LM35 | |
| Output Type | Analog Voltage | |
| Interface | Analog | |
| Termination Type | SOLDER | |
| Nominal Supply Current | 82A | |
| Output Current | 10mA | |
| Quiescent Current | 56μA | |
| Resolution | 10mV/°C | |
| Sensor Type | Analog, Local | |
| Max Supply Voltage (DC) | 30V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Supply Voltage (DC) | 4V | |
| Housing | PLASTIC | |
| Accuracy - Highest (Lowest) | ±1.5°C | |
| Sensing Temperature - Local | 0°C~100°C | |
| Accuracy-Max | 1.5 Cel | |
| R0-Nom | 0.4 Ω | |
| Height | 5.34mm | |
| Length | 4.3mm | |
| Width | 4.3mm | |
| Thickness | 3.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LM35 is a precession Integrated circuit Temperature sensor, whose output voltage varies, based on the temperature around it. It is a small and cheap IC which can be used to measure temperature anywhere between -55°C to 150°C. It can easily be interfaced with any Microcontroller that has ADC function or any development platform like Arduino.
Power the IC by applying a regulated voltage like +5V (VS) to the input pin and connected the ground pin to the ground of the circuit. Now, you can measure the temperate in form of voltage as shown below.
If the temperature is 0°C, then the output voltage will also be 0V. There will be rise of 0.01V (10mV) for every degree Celsius rise in temperature. The voltage can converted into temperature using the below formulae.
●Used for measuring the temperature of a particular environment.
●Used in Power Supplies
●Used in Battery Management
●Used in HVAC
●Used in Appliances
●Used in Monitoring Battery Temperature
●Used in HVAC applications as a temperature measurement device.
●It provides thermal shutdown for a circuit/component
●It provides thermal shutdown for a circuit or component used in a specific project.
●It provides battery protection from overheating.
Texas Instruments Incorporated (TI) is an American technology company headquartered in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume.The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue.TI also produces TI digital light processing technology and education technology products including calculators, microcontrollers and multi-core processors.
Download datasheets and manufacturer documentation for Texas Instruments LM35DZ/LFT1.
Download datasheets and manufacturer documentation for LM35DZ/LFT1
