LM350 Voltage Regulator: Price, Pinout and Datasheet

The LM350 is a three−terminal adjustable output positive voltage regulator that capable of supplying in excess of 3.0 A over an output voltage range of 1.2 V to 33 V by connecting the adjustment pin directly to the ground.

It can operate within a temperature range of – 40°C to + 125°C.   This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage.

Further, it employs internal current limiting, thermal shutdown, and safe area compensation, making it essentially blow−out proof. This regulator is used in a variety of applications like local and on-card regulation.

By using this regulator we can design a programmable o/p regulator, an adjustable switching regulator otherwise it is used as a precision current regulator by connecting a fixed resistor between the adjustment and output

Symbol

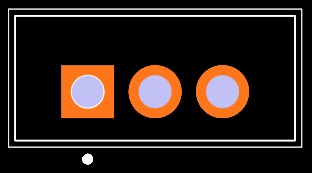

Footprint

3D Model

-Delivers an output current of 3 Amps.

-Output voltage is adjustable from 1.25V to 33V with 1% tolerance.

-Provides a load regulation of 0.1% and a line regulation of 0.005%/V.

-Maximum Input to output voltage difference is 35V, recommended 15V

-Internal Thermal Overload Protection

-Internal Short Circuit Current Limiting Constant with Temperature

-Output Transistor Safe Area Compensation

-Floating Operation for High Voltage Applications

-Very high dissipation of around 85 watts.

-It removes stored fixed voltages

-Operating junction temperature is 125°C

-Eliminates Stocking Many Fixed Voltages

-Pb−Free Packages are Available*

-Available in 3 pins To-220, SOT223, TO263 Package

Texas Instruments LM350T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM350T.

If you want to provide more than 1.5A you can use the LM350 Regulator IC which can source up to 3A. So, if you are looking for a variable voltage regulator to set voltage between 1.25V to 33V and to deliver current up to 3A then this regulator IC might be the right choice for your application. Apart from this the IC also has a current regulator mode which makes it suitable for battery charging applications.

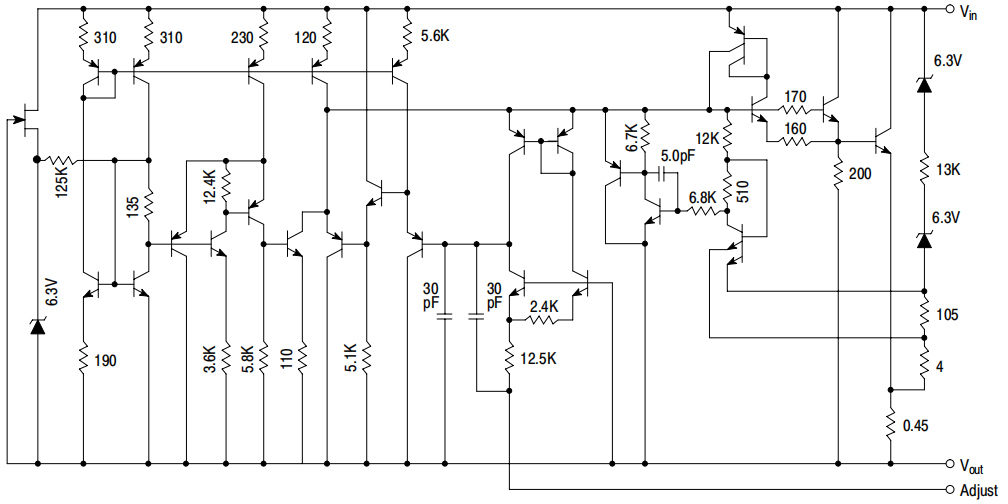

Most of the voltage regulators use an input and output capacitor. LM350 working is similar to other voltage regulators. You can change its output voltage from 1.25V to 33V by adjusting the values of resistors connected between the adjustable and output pin. The output capacitor improves regulation and transient response. This device provides an extremely good load regulation. To maximize performance, the resistor R1 should be directly connected to the output to achieve good regulation.

-Used in Battery chargers

-Used in Switching Regulators

-Used in Temperature Controllers

-Used in Light Controller

-Used in Tracking Pre-regulator

-Used in Positive voltage regulations

-Used in Current limiting circuits

-Used in Variable power supply

-Used in Reverse polarity circuits

-Used in Commonly used in Desktop PC, DVD and other consumer products

-Used in In motor control circuits
