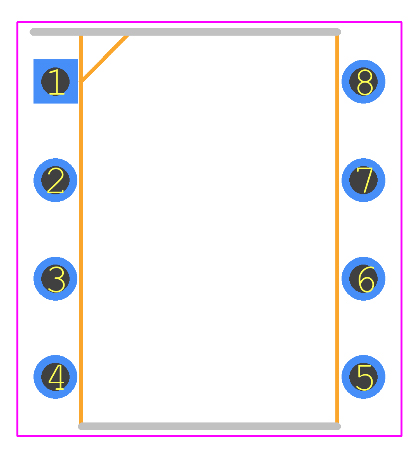

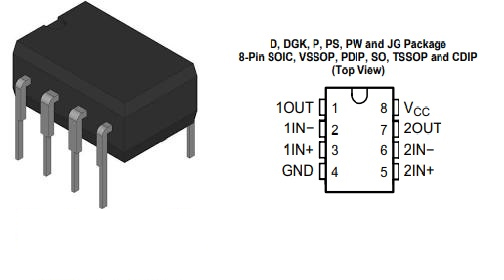

LM358AP OPAMP: Pinout, Specification, Datasheet

LM358AP consists of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the supplies is 3 V to 32 V, and V_CC is at least 1.5 V more positive than the input common-mode voltage. The low supply current drain is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, DC amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5V supplies.

• Wide supply ranges

– Single supply: 3 V to 32 V

– Dual supplies: ±1.5 V to ±16 V

• Low supply-current drain, independent of supply voltage: 0.7 mA (typical)

• Wide unity-gain bandwidth: 0.7 MHz

• Common-mode input voltage range includes ground, allowing direct sensing near the ground

• Low input bias and offset parameters

– Input offset voltage: 3 mV (typical)

– Input offset current: 2 nA (typical)

– Input bias current: 20 nA (typical)

• Differential input voltage range equal to maximum-rated supply voltage: 32 V

• Open-loop differential voltage gain: 100 dB (typical)

• Internal frequency compensation

• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.

• Blu-ray players and home theaters

• Chemical and gas sensors

• DVD recorder and players

• Digital multimeter: bench and systems

• Digital multimeter: handhelds

• Field transmitter: temperature sensors

• Motor control: AC Induction, brushed DC, brushless DC, high-voltage, low-voltage, permanent magnet, and stepper motor

• Oscilloscopes

• TV: LCD

• Temperature sensors or controllers using Modbus

• Weigh scales

Texas Instruments LM358AP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM358AP.

As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture, and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.

Download datasheets and manufacturer documentation for Texas Instruments LM358AP.
