LM358D Operational Amplifier: Datasheet, Circuits and Pinout

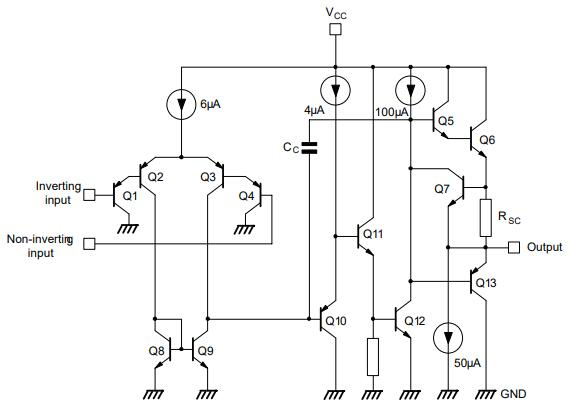

The LM358D consists of two independent, highgain, internally frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard 5 V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply.

In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.

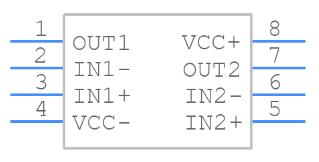

Symbol

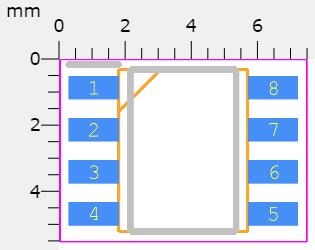

Footprint

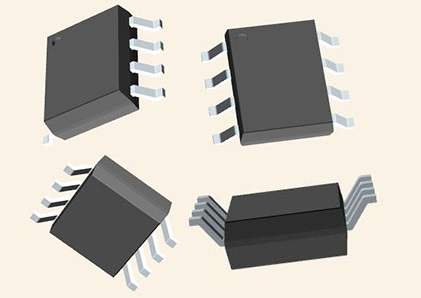

3D Model

• Frequency compensation implemented internally

• Large DC voltage gain: 100 dB

• Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)

• Very low supply current per channel essentially independent of supply voltage

• Low input bias current: 20 nA (temperature compensated)

• Low input offset voltage: 2 mV

• Low input offset current: 2 nA

• Input common-mode voltage range includes negative rails

• Differential input voltage range equal to the power supply voltage

• Large output voltage swing 0 V to (VCC+ - 1.5 V)

• Two internally compensated op amps

• Removes the necessity of dual supplies

• Permits direct sensing close to GND & VOUT

• Well-suited with all methods of logic

• Power drains appropriate for the operation of the battery

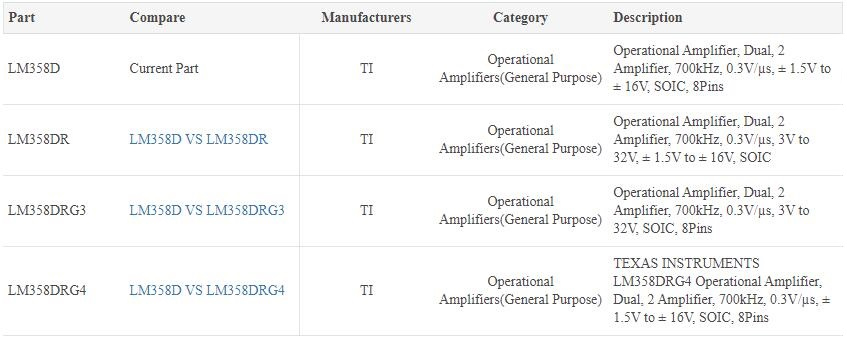

STMicroelectronics LM358D technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM358D.

The LM358D has several distinct advantages over standard operational amplifier types in single supply applications. It can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one–fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

• Transducer amplifiers

• DC gain blocks

• Conventional op amp circuits

• Single supply applications

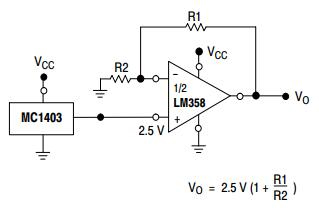

Fig. 1 Voltage Reference

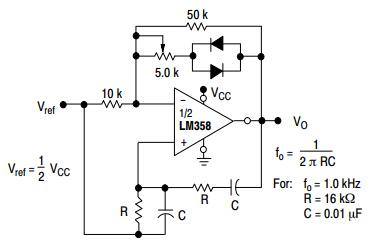

Fig. 2 Wien Bridge Oscillator

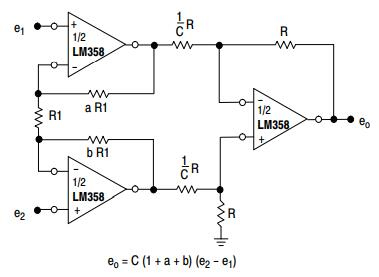

Fig. 3 High Impedance Differential Amplifier

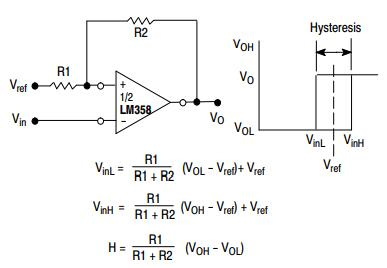

Fig. 4 Comparator with Hysteresis

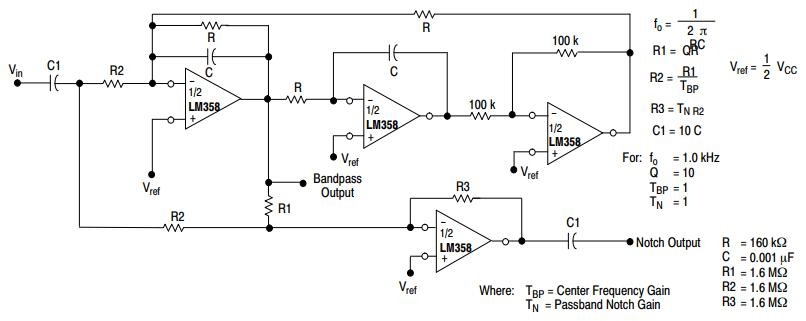

Fig. 5 Bi−Quad Filter

Fig. 6 Function Generator

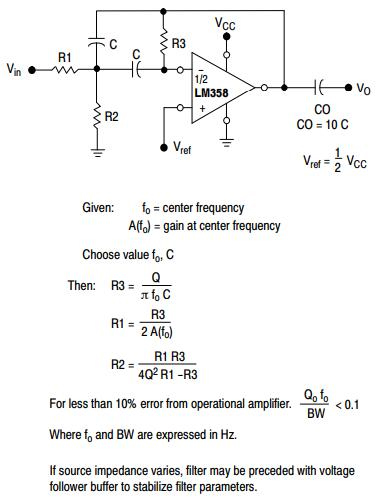

Fig. 7 Multiple Feedback Bandpass Filter

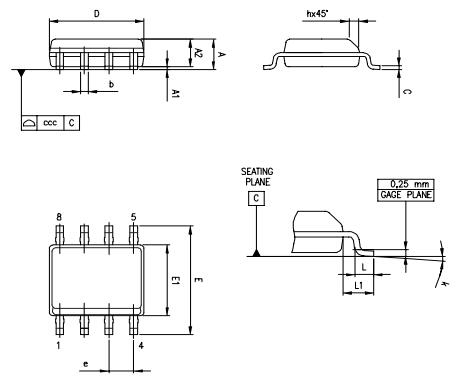

LM358D Package Outline

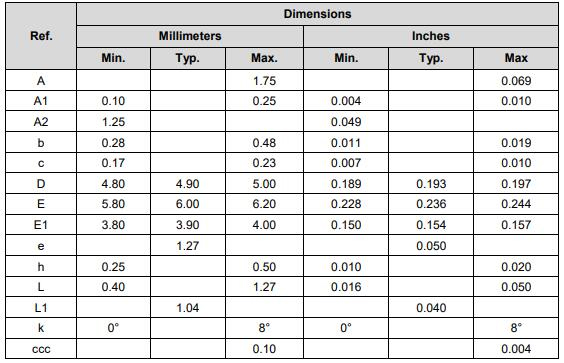

LM358D Mechanical Data
