The LM185/LM385 is a micropower 3-terminal adjustable band-gap voltage reference diode.
LM385M Voltage Reference Diode: Feature, Speification, Datasheet
IC VREF SHUNT 5.3V 2% 8SOIC The LM185/LM385 is a micropower 3-terminal adjustable band-gap voltage reference diode.
376
Jun 4, 2021
Quanna
LM385M
27In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.48149 | $2.48 |
| 10+ | $2.34103 | $23.41 |
| 100+ | $2.20851 | $220.85 |
| 500+ | $2.0835 | $1041.75 |
| 1000+ | $1.96557 | $1965.57 |
Unit Price:$2.48149
Subtotal: $2.48
Quick Links
LM385M Description
Operating from 1.24 to 5.3V and over a 10μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM185 band-gap reference uses only transistors and resistors, low noise and good long-term stability result.
The careful design of the LM185 has made the device tolerant of capacitive loading, making it easy to use in almost any reference application. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation.
The extremely low power drain of the LM185 makes it useful for micropower circuitry. This voltage reference can be used to make portable meters, regulators, or general-purpose analog circuitry with battery life approaching shelf life. Further, the wide operating current allows it to replace older references with a tighter tolerance part.
The LM185 is rated for operation over a −55°C to 125°C temperature range, while the LM285 is rated −40°C to 85°C and the LM385 0°C to 70°C. The LM185 is available in a hermetic TO package and an LCCC package, while the LM285/LM385 is available in a low-cost TO-92 package, as well as SOIC.
LM385M Features
Adjustable from 1.24V to 5.30V
Operating current of 10μA to 20mA
1% and 2% initial tolerance
1Ω dynamic impedance
Low-temperature coefficient
LM385M Application
Infrared detection alarm
The alarm can detect the infrared rays emitted by the human body. When a person enters the monitoring area of the alarm, it can sound the alarm. It is suitable for anti-theft alarms on more important occasions such as homes, offices, warehouses, and laboratories.
LM385M CAD Models
Symbol

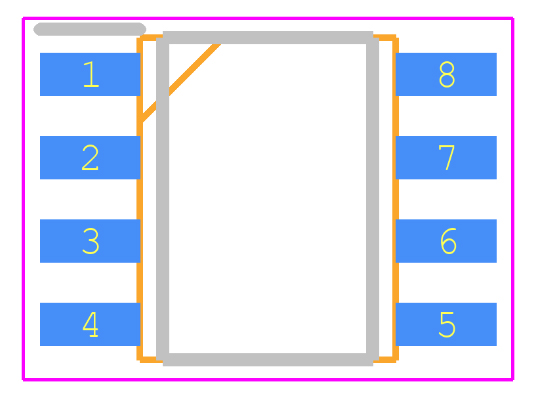

Footprint

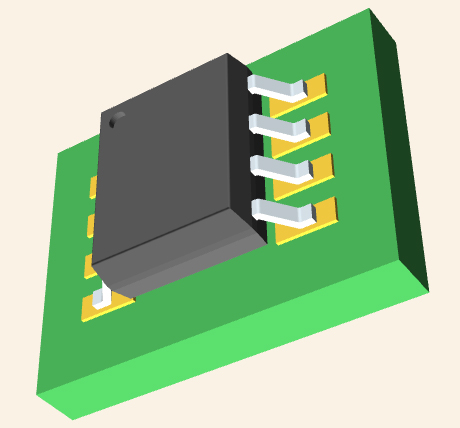

3D Model
Specifications
Texas Instruments LM385M technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM385M.
LM385M Tech Specifications
LM385M Tech Specifications
Texas Instruments LM385M technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM385M.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | NRND (Last Updated: 4 days ago) | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| Tolerance | ±2% | |
| JESD-609 Code | e0 | |
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Temperature Coefficient | 150ppm/°C | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 235 | |
| Number of Functions | 1Function | |
| Current Rating | 10A | |
| Base Part Number | LM385 | |
| Pin Count | 8 | |
| Number of Outputs | 1Output | |
| Output Voltage | 5.3V | |
| Output Type | Adjustable | |
| Max Output Current | 20mA | |
| Number of Channels | 1Channel | |
| Trim/Adjustable Output | YES | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| Nominal Supply Current | 10mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Voltage | 5.3V | |
| Reference Voltage | 5.3V | |
| Reference Type | Shunt | |
| Min Output Voltage | 1.24V | |
| Current - Cathode | 55μA | |
| Noise - 10Hz to 10kHz | 50μVrms | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |

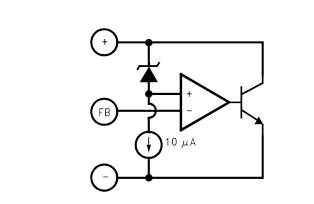

LM385M Block Diagram

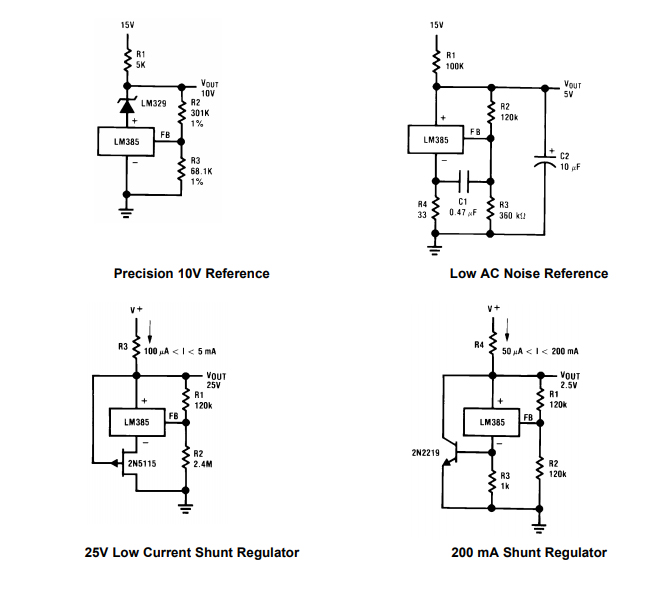

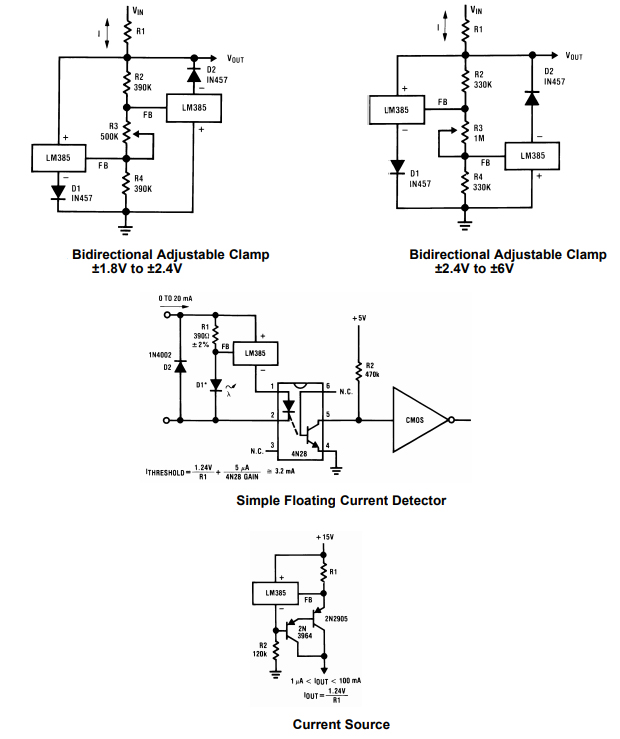

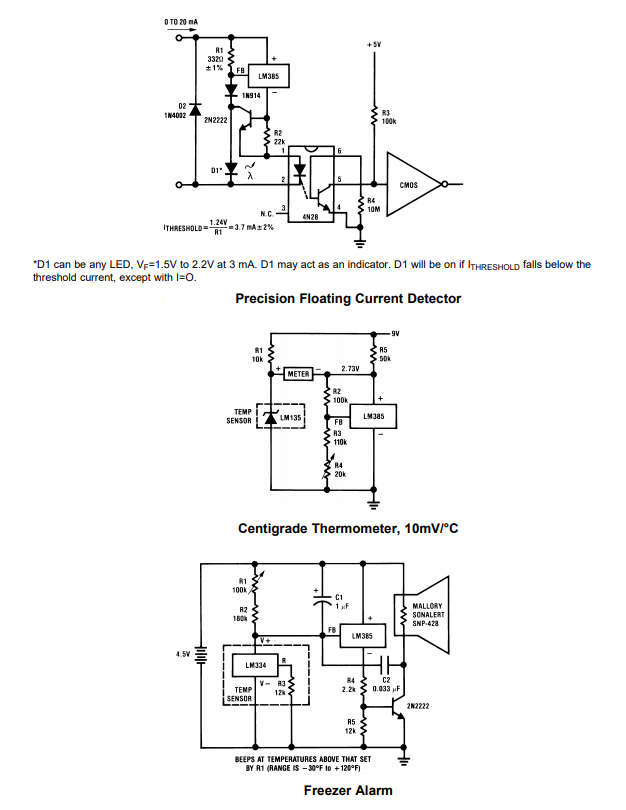

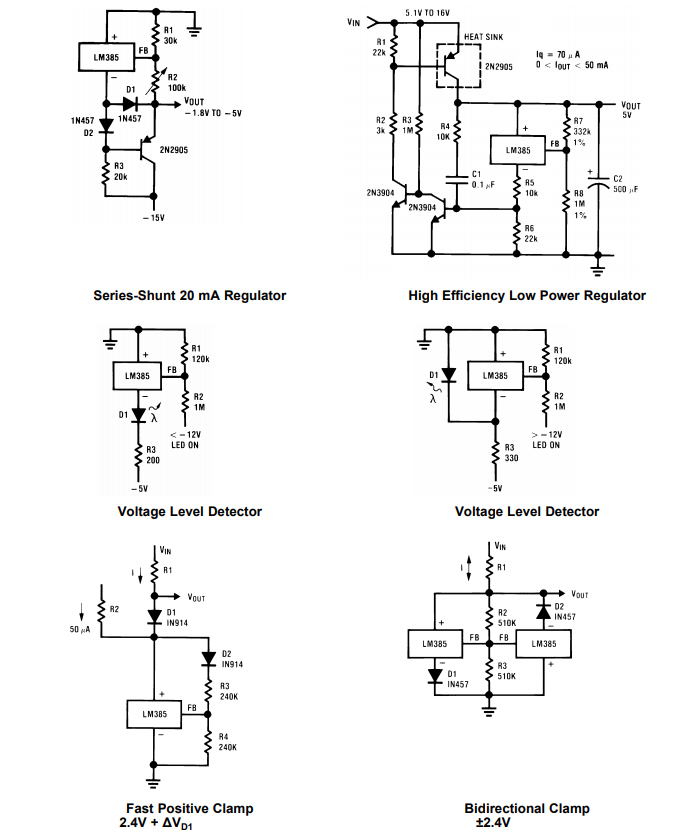

LM385M Typical Application

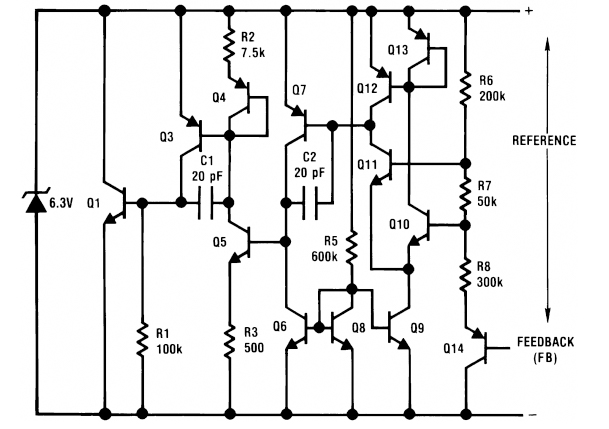

LM385M Schematic Diagram
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments LM385M.
LM385M Documents
LM385M Documents
Download datasheets and manufacturer documentation for LM385M
Datasheets
LM185,285,385(ADJ)
PCN Assembly/Origin
Mult Devices 21/Aug/2017
Frequently Asked Questions
1.Which is better lm285 or lm385 band gapreference?
The tolerance. Since the LM185 band-gapreference uses LM185 is available in a hermetic TO package and a only transistors and resistors, low noise and good LCCC package, while the LM285/LM385 are long-termstability result. available in a low-cost TO-92 package, as well as SOIC.
2.What ' s The difference between the lm185 and lm285?
Operating from 1.24 to 5.3V and over a 10μA to 20mA current range, they feature exceptionally low The LM185 is rated for operation over a −55°C to dynamic impedance and good temperature stability. 125°C temperature range, while the LM285 is rated On-chip trimming is used to provide tight voltage −40°C to 85°C and the LM385 0°C to 70°C.
3.What is lm385 diode?
The LM385-1.2 is a two terminal band gap reference diode that has been designed for applications which require precision performance with micropower operation. This reference is not recommended for new designs. See the LT1004 reference for a direct replacement.
4.What is the C temperature of lm385?
The LM285/LM385 series are packaged in a low cost TO-226AA plastic case and are available in two voltage versions of 1.235 and 2.500 V as denoted by the device suffix (see Ordering Information table). The LM285 is specified over a -40 C to +85 C temperature range while the LM385 is rated from 0 C to +70 C.
5.hat is the operating current range for lm385?
Operating Current Range references operate over a 10-μA to 20-mA current – LM285-1.2: 10 μA to 20 mA range and feature exceptionally low dynamic – LM385-1.2: 15 μA to 20 mA impedance and good temperature stability. On-chip – LM385B-1.2: 15 μA to 20 mA trimming provides tight voltage tolerance.
FAQ
1.Which is better lm285 or lm385 band gapreference?
The tolerance. Since the LM185 band-gapreference uses LM185 is available in a hermetic TO package and a only transistors and resistors, low noise and good LCCC package, while the LM285/LM385 are long-termstability result. available in a low-cost TO-92 package, as well as SOIC.
2.What ' s The difference between the lm185 and lm285?
Operating from 1.24 to 5.3V and over a 10μA to 20mA current range, they feature exceptionally low The LM185 is rated for operation over a −55°C to dynamic impedance and good temperature stability. 125°C temperature range, while the LM285 is rated On-chip trimming is used to provide tight voltage −40°C to 85°C and the LM385 0°C to 70°C.
3.What is lm385 diode?
The LM385-1.2 is a two terminal band gap reference diode that has been designed for applications which require precision performance with micropower operation. This reference is not recommended for new designs. See the LT1004 reference for a direct replacement.
4.What is the C temperature of lm385?
The LM285/LM385 series are packaged in a low cost TO-226AA plastic case and are available in two voltage versions of 1.235 and 2.500 V as denoted by the device suffix (see Ordering Information table). The LM285 is specified over a -40 C to +85 C temperature range while the LM385 is rated from 0 C to +70 C.
5.hat is the operating current range for lm385?
Operating Current Range references operate over a 10-μA to 20-mA current – LM285-1.2: 10 μA to 20 mA range and feature exceptionally low dynamic – LM385-1.2: 15 μA to 20 mA impedance and good temperature stability. On-chip – LM385B-1.2: 15 μA to 20 mA trimming provides tight voltage tolerance.
