IC AMP CLASS AB MONO 325MW 8SOIC

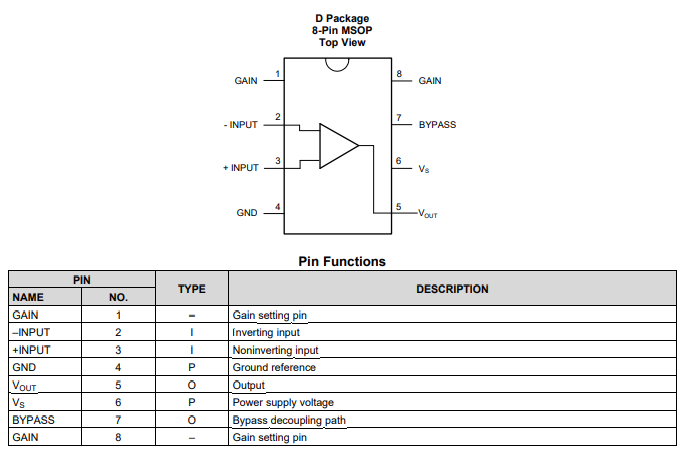

Power amplifiers like the LM386M-1 and LM386MX-1 are optimized for low-voltage market applications. The gain is set to 20 internally to keep the external component count low, but by connecting pins 1 and 8 with an external resistor and capacitor, the gain can be increased to any value between 20 and 200.
LM386M-1
Power amplifiers like the LM386M-1 and LM386MX-1 are optimized for low-voltage market applications. The gain is set to 20 internally to keep the external component count low, but by connecting pins 1 and 8 with an external resistor and capacitor, the gain can be increased to any value between 20 and 200.

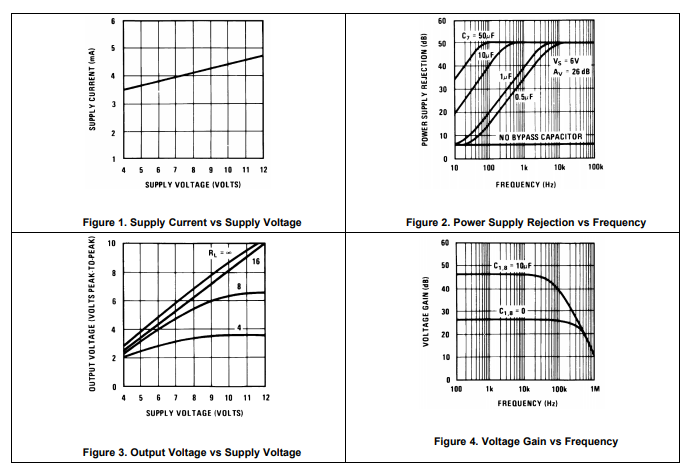

The inputs are all grounded, and the output is naturally biased to half the supply voltage. When operated from a 6-V supply, the LM386M-1 and LM386MX-1 have a quiescent power drain of just 24 mW, making them suitable for battery use.
• Battery Operation
• Minimum External Parts
• Wide Supply Voltage Range: 4 V–12 V or 5 V–18 V • Low Quiescent Current Drain: 4 mA
• Voltage Gains from 20 to 200
• Ground-Referenced Input
• Self-Centering Output Quiescent Voltage

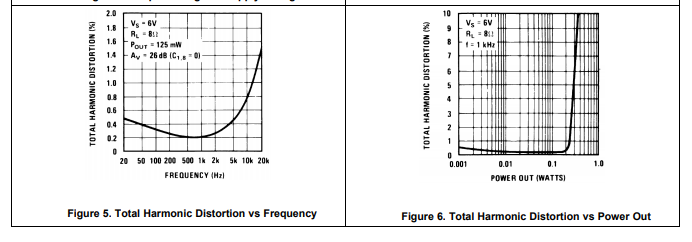

• Low Distortion: 0.2% (AV = 20, VS = 6 V, RL = 8 Ω, PO = 125 mW, f = 1 kHz)
• Available in 8-Pin MSOP Package
Texas Instruments LM386M-1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM386M-1.
Texas Instruments LM386M-1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM386M-1.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Weight | 2.721554g | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |

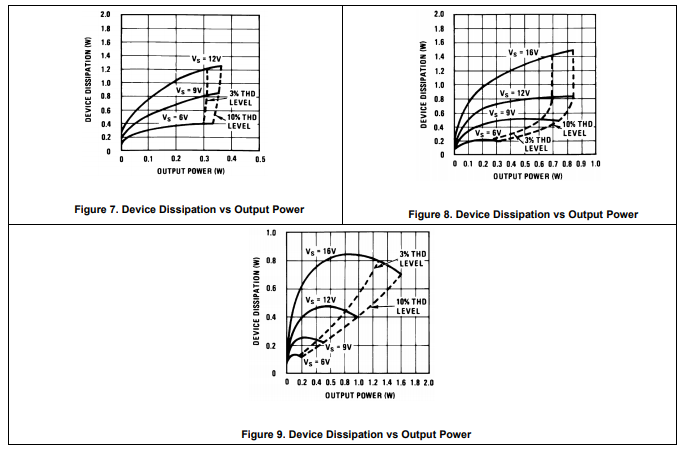

| Max Power Dissipation | 730mW | |
| Voltage - Supply | 4V~12V | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 235 | |
| Number of Functions | 1Function | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | LM386 | |
| Pin Count | 8 | |
| Qualification Status | Not Qualified | |
| Output Type | 1-Channel (Mono) | |
| Supply Voltage-Min (Vsup) | 4V | |
| Number of Channels | 1Channel | |
| Nominal Supply Current | 4mA | |
| Power Dissipation | 730mW | |
| Quiescent Current | 8mA | |
| Output Power | 325mW | |
| Supply Type | Single | |
| Input Offset Voltage (Vos) | 2.5mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Bandwidth | 300 kHz | |
| Gain Bandwidth Product | 300 kHz | |
| Voltage Gain | 46dB | |
| Power Supply Rejection Ratio (PSRR) | 50dB | |
| Max Output Power | 325mW | |
| Input Bias Current | 250nA | |
| Max Output Power x Channels @ Load | 325mW x 1 @ 8 Ω | |
| Harmonic Distortion | 10% | |
| Number of Amplifiers | 1Amplifier | |
| Load Impedance | 8Ohm | |
| Height | 1.45mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
• AM-FM Radio Amplifiers
• Portable Tape Player Amplifiers
• Intercoms
• TV Sound Systems
• Line Drivers
• Ultrasonic Drivers
• Small Servo Drivers
• Power Converters
Download datasheets and manufacturer documentation for LM386M-1
