IC AMP CLSS AB MONO 68W TO220-11 The LM3886T is a new type of high-power audio amplifier integrated circuit introduced by the American NS company. The TF behind the LM3886TF is a fully insulated package. Compared with LM1875T, its power is larger.
1111
Jun 12, 2021
Debby
This video will show you how to make hifi LM3886 Stereo Audio Amplifier
DIY-AUDIO (PART-1) HIFI LM3886 (100 100W RMS) Stereo Audio Amplifier
IC AMP CLSS AB MONO 68W TO220-11
The LM3886T is a new type of high-power audio amplifier integrated circuit introduced by the American NS company. The TF behind the LM3886TF is a fully insulated package. Compared with LM1875T, its power is larger.
LM3886T
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.38113 | $4.38 |
| 10+ | $4.13314 | $41.33 |
| 100+ | $3.89919 | $389.92 |
| 500+ | $3.67848 | $1839.24 |
| 1000+ | $3.47027 | $3470.27 |
The LM3886T is a new type of high-power audio amplifier integrated circuit introduced by the Texas Instruments. The TF behind the LM3886TF is a fully insulated package. Compared with LM1875T, its power is larger.
The maximum continuous undistorted average power of 68W under the rated operating voltage also has a relatively complete overvoltage, overcurrent and overheat protection function. The most valuable thing is that it has the function of automatically resisting the current impact when the switch is turned on, so that the speaker can be safe work.

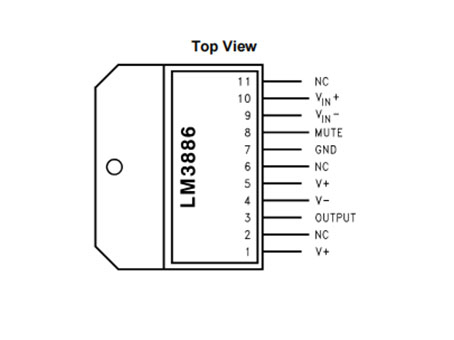

TO-220 and PFM Plastic Packages

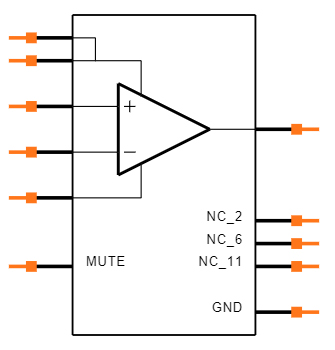

Symbol

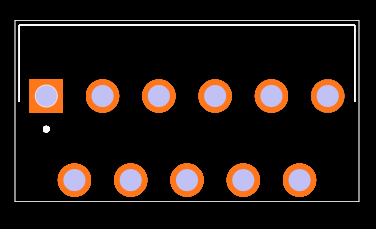

Footprint

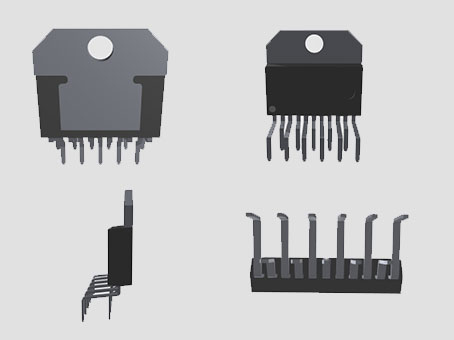

3D Model
• 68W Cont. Avg. Output Power into 4Ω at VCC = ±28V
• 38W Cont. Avg. Output Power into 8Ω at VCC = ±28V
• 50W Cont. Avg. Output Power into 8Ω at VCC = ±35V
• 135W Instantaneous Peak Output Power Capability
• Signal-to-Noise Ratio ≥ 92dB
• An Input Mute Function
• Output Protection from a Short to Ground or to the supplies, via Internal Current Limiting
• Output Over-Voltage Protection against Transients from Inductive Loads
• Supply Under-Voltage Protection, not Allowing Internal Biasing to Occur when |VEE| + |VCC| ≤12V, thus Eliminating Turn-On and Turn-Off 0.004%. Transients
• 11-Lead TO-220 Package
• Wide Supply Range 20V - 94V
Texas Instruments LM3886T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM3886T.
Texas Instruments LM3886T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM3886T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-11 (Formed Leads) | |
| Number of Pins | 11Pins | |
| Weight | 4.535924g | |
| Operating Temperature | -20°C~85°C TA | |
| Packaging | Tube | |
| Series | Overture™ | |
| JESD-609 Code | e0 | |
| Part Status | Discontinued | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 11Terminations | |
| ECCN Code | EAR99 | |
| Type | Class AB | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Max Power Dissipation | 125W | |
| Voltage - Supply | 20V~84V ±10V~42V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Base Part Number | LM3886 | |
| Pin Count | 3 | |
| Output Type | 1-Channel (Mono) | |
| Max Output Current | 11.5A | |
| Number of Channels | 1Channel | |
| Power Dissipation | 125W | |
| Output Current | 11.5A | |
| Quiescent Current | 85mA | |
| Output Power | 68W | |
| Common Mode Rejection Ratio | 85 dB | |
| Supply Type | Dual, Single | |
| Input Offset Voltage (Vos) | 10mV | |
| Bandwidth | 3MHz | |
| Gain Bandwidth Product | 8MHz | |
| Voltage Gain | 115dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supply Rejection Ratio (PSRR) | 120dB | |
| Max Dual Supply Voltage | 42V | |
| Max Output Power | 68W | |
| Min Dual Supply Voltage | 10V | |
| Dual Supply Voltage | 28V | |
| Input Bias Current | 1μA | |
| Max Output Power x Channels @ Load | 68W x 1 @ 4 Ω | |
| Load Impedance | 8Ohm | |
| Features | Mute, Short-Circuit and Thermal Protection | |
| Height | 10.69mm | |
| Length | 20.02mm | |
| Width | 4.5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant |

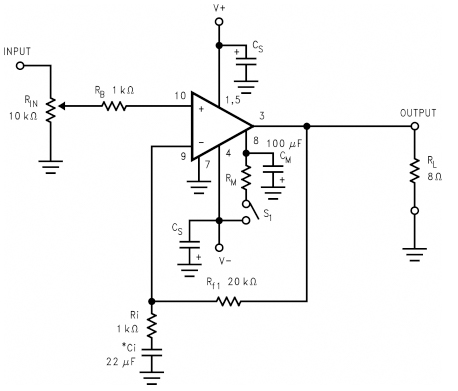

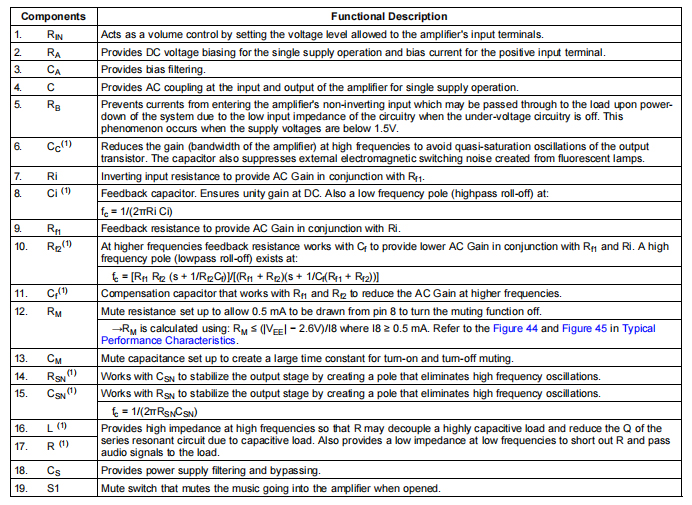

Typical Audio Amplifier Application Circuit
• Component stereo
• Compact stereo
• Self-powered speakers
• Surround-sound amplifiers
• High-end stereo TVs
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
