IC OPAMP GP 4 CIRCUIT 14SOIC LM3900D consists of four independent, high-gain frequency-compensated Norton operational amplifiers that were designed specifically to operate from a single supply over a wide range of voltages.
249
Jun 16, 2021
Joanne
Homemade LM3900 Norton Op Amp Tester
IC OPAMP GP 4 CIRCUIT 14SOIC
LM3900D consists of four independent, high-gain frequency-compensated Norton operational amplifiers that were designed specifically to operate from a single supply over a wide range of voltages.
LM3900D
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.25192 | $1.25 |
| 10+ | $1.18106 | $11.81 |
| 100+ | $1.11421 | $111.42 |
| 500+ | $1.05114 | $525.57 |
| 1000+ | $0.99164 | $991.64 |

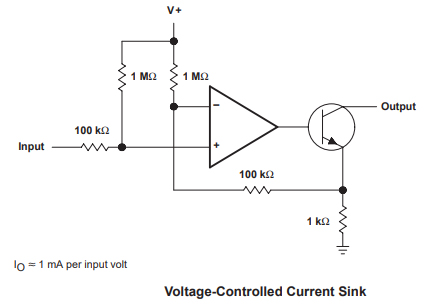

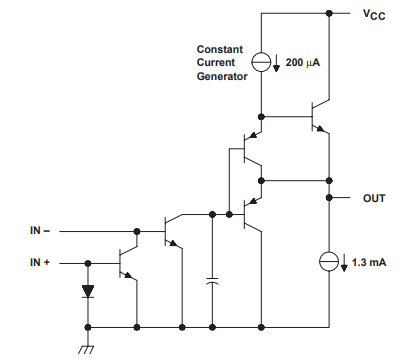

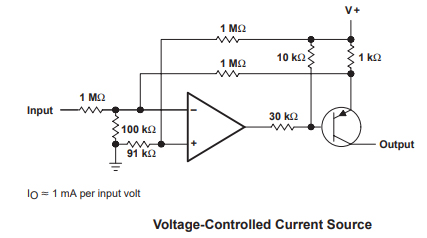

Operation from split supplies is also possible. The low supply current drain is essentially independent of the magnitude of the supply voltage. These devices provide wide bandwidth and large output voltage swings. The LM3900 is characterized for operation from 0°C to 70°C.

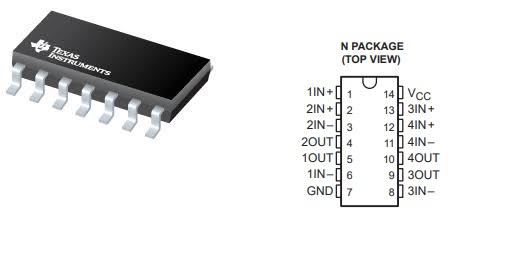

Symbol
Footprint

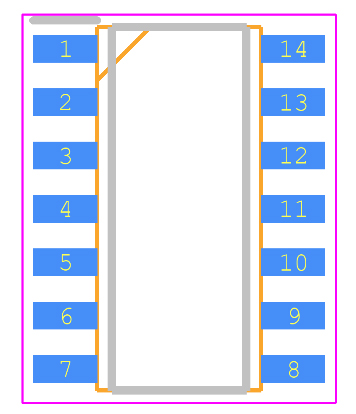

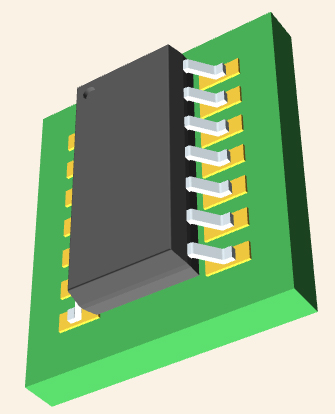

3D Model
Texas Instruments LM3900D technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM3900D.
Texas Instruments LM3900D technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM3900D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 14Pins | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 4Functions | |
| Supply Voltage | 15V | |
| Terminal Pitch | 1.27mm | |
| Base Part Number | LM3900 | |
| Pin Count | 14 | |
| Operating Supply Voltage | 16V | |
| Number of Channels | 4Channels | |
| Number of Circuits | 4Circuits | |
| Operating Supply Current | 6.2mA | |
| Nominal Supply Current | 10mA | |
| Slew Rate | 20V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Current - Input Bias | 30nA | |
| Voltage - Supply, Single/Dual (±) | 4.5V~32V ±2.2V~16V | |
| Output Current per Channel | 10mA | |
| Unity Gain BW-Nom | 2500 kHz | |
| Voltage Gain | 68.94dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Bias Current-Max (IIB) | 0.2μA | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Supply Voltage Limit-Max | 36V | |
| Low-Bias | NO | |
| Micropower | NO | |
| Bias Current-Max (IIB) @25C | 0.2μA | |
| Programmable Power | NO | |
| Dual Supply Voltage | 9V | |
| Power | NO | |
| Height | 1.75mm | |
| Length | 8.65mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture, and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Download datasheets and manufacturer documentation for Texas Instruments LM3900D.
Download datasheets and manufacturer documentation for LM3900D
