The LM3914V is an analog controlled LED driver IC which is rated for operation from 0°C to 70°C.
LM3914V Driver：Alternatives, Pinout, Datasheet
IC DRVR DOT/BAR DISPLAY 20PLCC The LM3914V is an analog controlled LED driver IC which is rated for operation from 0°C to +70°C.
72
Aug 3, 2021
Odelette Laurie
LM3914V
45In Stock
Min.: 1 Mult.: 1
Quick Links
LM3914V Pinout
Lm3914V CAD Model
Symbol
Footprint
LM3914V Description
The LM3914V is an analog controlled LED driver IC which is rated for operation from 0°C to +70°C, who can control (turn on or off) 10 LED lights based on an analog input voltage eliminating the need for microcontroller and programming and also reducing the hardware required to control 10 LEDs.
LM3914V Features
• Drives LEDs, LCDs or Vacuum Fluorescents
• Bar or Dot Display Mode Externally Selectable by User
• Internal Voltage Reference from 1.2V to 12V
• Operates with a Single Supply of Less than 3V
• Inputs Operate Down to Ground
• Output Current Programmable from 2 mA to 30 mA
• No Multiplex Switching or Interaction Between Outputs
• Input Withstands ±35V without Damage or False Outputs
• LED Driver Outputs are Current Regulated, Open-collectors
• Outputs can Interface with TTL or CMOS Logic
• The Internal 10-step Divider is Floating and can be Referenced to a Wide Range of Voltages
Specifications
Texas Instruments LM3914V technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM3914V.
LM3914V Tech Specifications
LM3914V Tech Specifications
Texas Instruments LM3914V technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM3914V.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-LCC (J-Lead) | |
| Number of Pins | 20Pins | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | |
| Number of Terminations | 20Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Additional Feature | SELECTABLE DOT MODE | |
| Max Power Dissipation | 1.365W | |
| Voltage - Supply | 3V~20V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | QUAD | |
| Terminal Form | J BEND | |
| Peak Reflow Temperature (Cel) | 250 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | LM3914 | |
| Pin Count | 20 | |
| Output Voltage | 1.34V | |
| Configuration | Dot/Bar Display | |
| Number of Channels | 10Channels | |
| Number of Circuits | 1Circuit | |
| Operating Supply Current | 6.1mA | |
| Nominal Supply Current | 9.2mA | |
| Power Dissipation | 1.365W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current | 30mA | |
| Max Supply Current | 9.2mA | |
| Display Type | LED, LCD, Vacuum Fluorescent (VF) | |
| Interface IC Type | LED DISPLAY DRIVER | |
| Number of Segments | 10Segments | |
| Multiplexed Display Capability | NO | |
| Display Mode | BAR GRAPH | |
| Data Input Mode | ANALOG | |
| Digits or Characters | 10 Steps | |
| Height Seated (Max) | 4.57mm | |
| Width | 8.89mm | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
LM3914V Application
-
Crude Battery level indicators
-
Low-cost monitor devices
-
Digital gauges
-
Electronic displays
-
Fade bars
How to use lm3914V

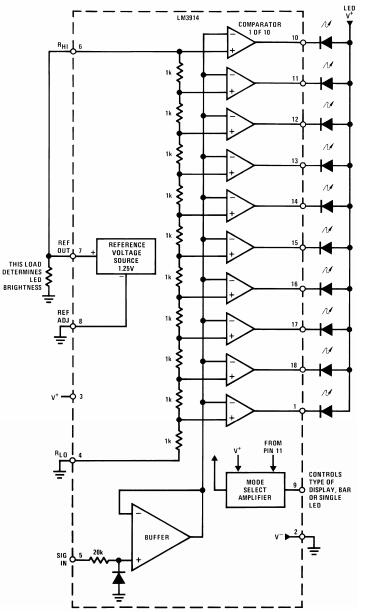

The LM3914V is very easy to apply as an analog meter circuit. A 1.2V full-scale meter requires only 1 resistor and a single 3V to 15V supply in addition to the 10 display LEDs. If the 1 resistor is a pot, it becomes the LED brightness control. The simplified Outputs block diagram illustrates this extremely simple or external circuitry. The simplified Outputs block diagram is below.

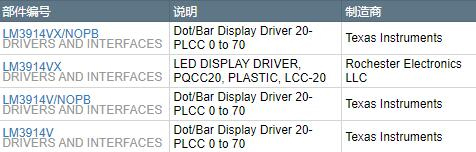

Lm3914V Alternatives
LM3914V Package
LM3914V Manufacturer
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, TIers are problem-solvers collaborating to change the world through technology.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments LM3914V.
LM3914V Documents
LM3914V Documents
Download datasheets and manufacturer documentation for LM3914V
PCN Obsolescence/ EOL
Mult Devices 06/Nov/2017
Frequently Asked Questions
What is LM3914V IC?
The LM3914V is a monolithic integrated circuit that senses analog voltage levels and drives 10 LEDs, providing a linear analog display. A single pin changes the display from a moving dot to a bar graph. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors.
What is dot mode and display mode?
The Mode pin allows you to select between "bar" mode and "dot" mode. In bar mode, all LEDs sequentially turn on. So, if the signal voltage is near max, all LEDs should be on. In "dot" mode just a single LED is on at any time.
FAQ
What is LM3914V IC?
The LM3914V is a monolithic integrated circuit that senses analog voltage levels and drives 10 LEDs, providing a linear analog display. A single pin changes the display from a moving dot to a bar graph. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors.
What is dot mode and display mode?
The Mode pin allows you to select between "bar" mode and "dot" mode. In bar mode, all LEDs sequentially turn on. So, if the signal voltage is near max, all LEDs should be on. In "dot" mode just a single LED is on at any time.
