LM5164QDDARQ1: LM5164, Converter, 48V, 100V Input

The LM5164QDDARQ1 synchronous buck converter is designed to regulate over a wide range of input voltages, reducing the requirement for external surge suppression components. A minimum adjustable on-time of 50 ns allows for significant step-down conversion ratios, allowing direct step-down from a 48-V nominal input to low-voltage rails, reducing system complexity and solution cost. The LM5164QDDARQ1 works at approximately 100 percent duty cycle with input voltage dips as low as 6 V, making it a great choice for wide input supply range industrial and large cell count battery pack applications.

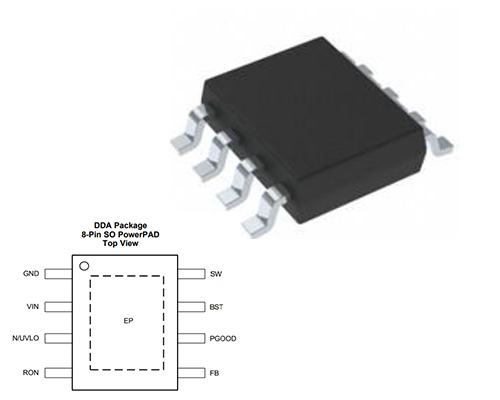

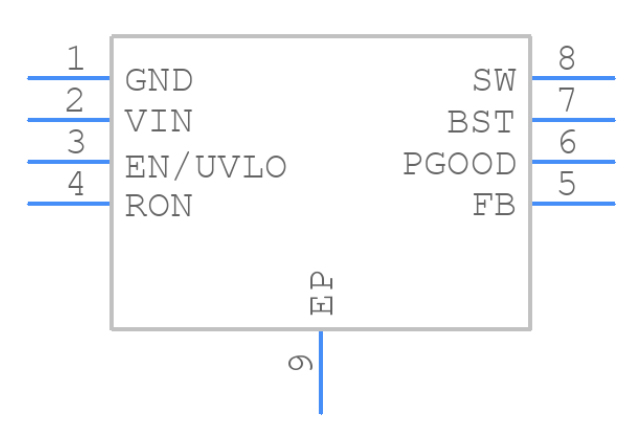

Symbol

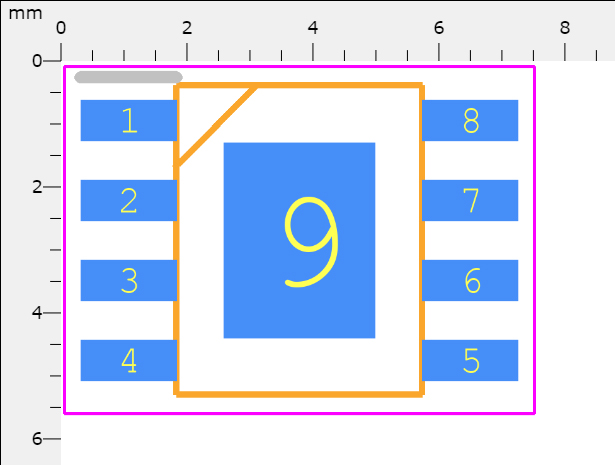

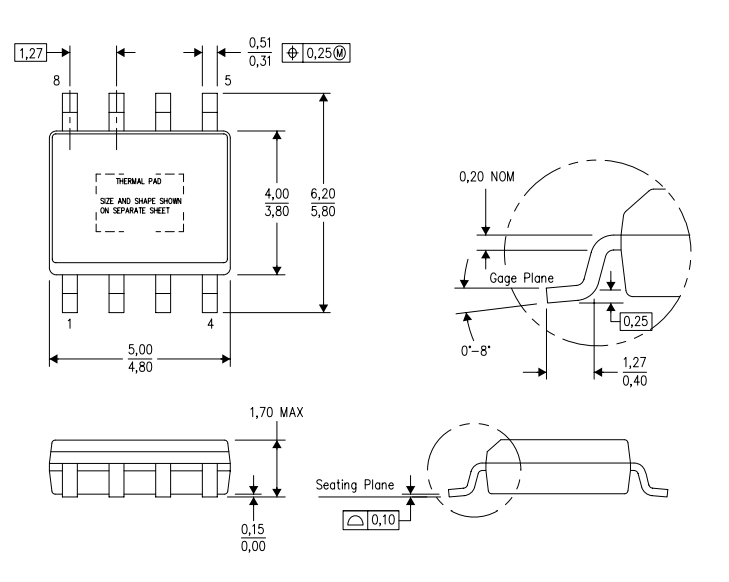

Footprint

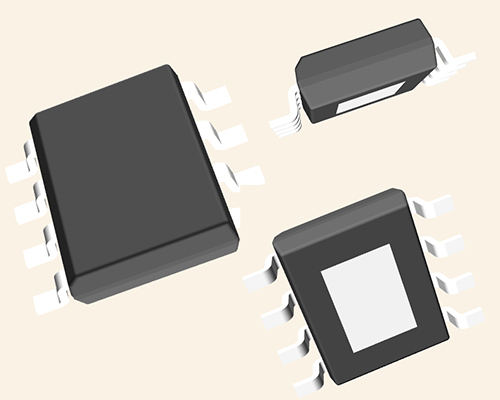

3D Model

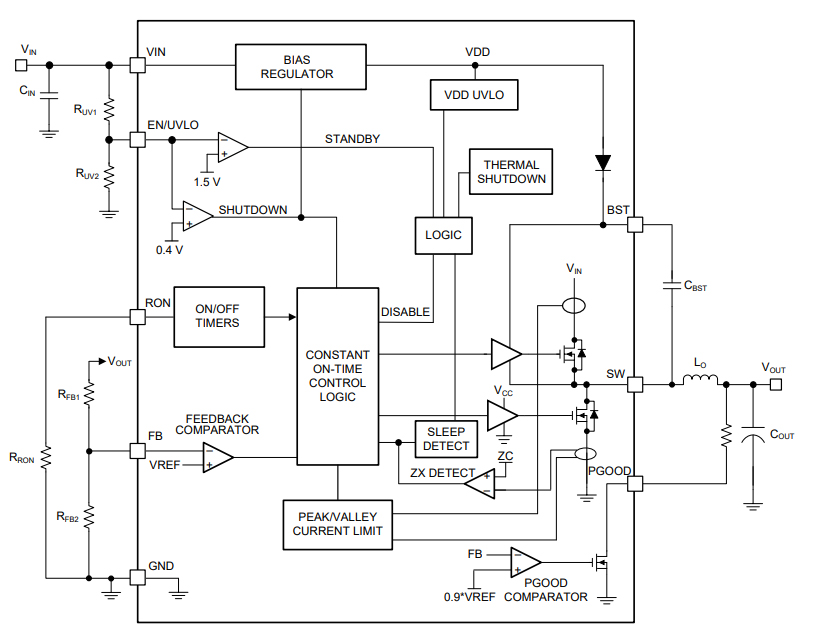

• Designed for reliable and rugged applications

– Wide input voltage range of 6 V to 100 V

– Junction temperature range: –40°C to +150°C

– Fixed 3-ms internal soft-start timer

– Peak and valley current-limit protection

– Input UVLO and thermal shutdown protection

• Suited for scalable Industrial power supplies and battery packs

– Low minimum on- and off-times of 50 ns

– Adjustable switching frequency up to 1 MHz

– Diode emulation for high light-load efficiency

– 10.5-µA no-load input quiescent current

– 3-µA shutdown quiescent current

– Optimized for CISPR 32 EMI standard

• Integration reduces solution size and cost

– COT mode control architecture

– Integrated 0.725-Ω NFET buck switch supports wide duty-cycle range

– Integrated 0.34-Ω NFET synchronous rectifier

eliminates external Schottky diode

– 1.2-V internal voltage reference

– No loop compensation components

– Internal VCC bias regulator and boot diode

– Open-drain power good indicator

– 8-Pin SOIC package with PowerPAD™

• Create a custom design using WEBENCH® power designer

• Reduced board space: The new device's thermally efficient, small-form integrated circuit (SOIC) PowerPADTM packaging is 5 mm x 6 mm, which is 30% smaller than competitive offerings. Designers can use the LM5164QDDARQ1 to develop a complete power supply design with a footprint of 105 mm2, which is more than 10% smaller than competitive products.

• High light load efficiency: The LM5164QDDARQ1 has a very low typical standby static current of 10-A. When compared to rival methods, this delivers a 10% light-load efficiency, a 24 V to 5 V conversion at 1-mA loads, and extends battery life.

• Simple and cost-effective design: A standard 8-pin SOIC box, few external components, and WEBENCH® Power Designer simplify and decrease design costs.

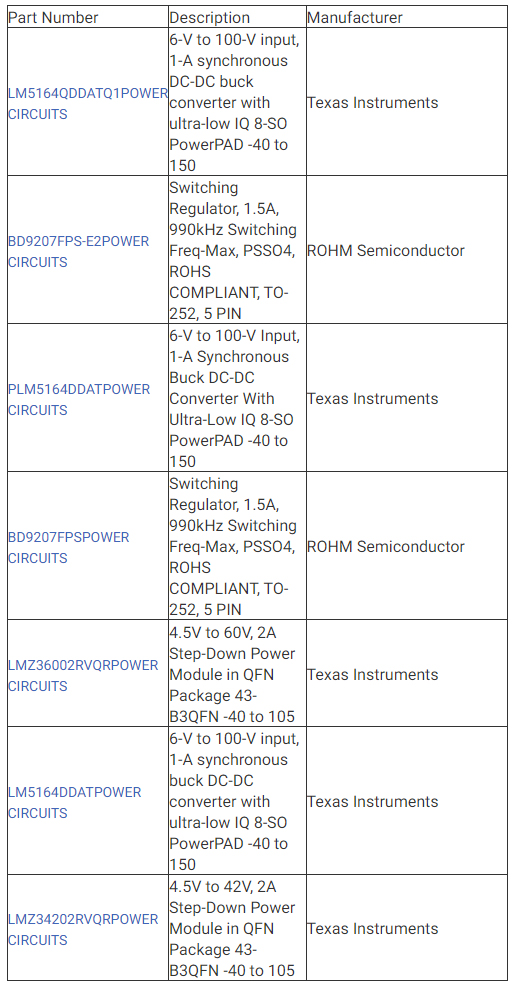

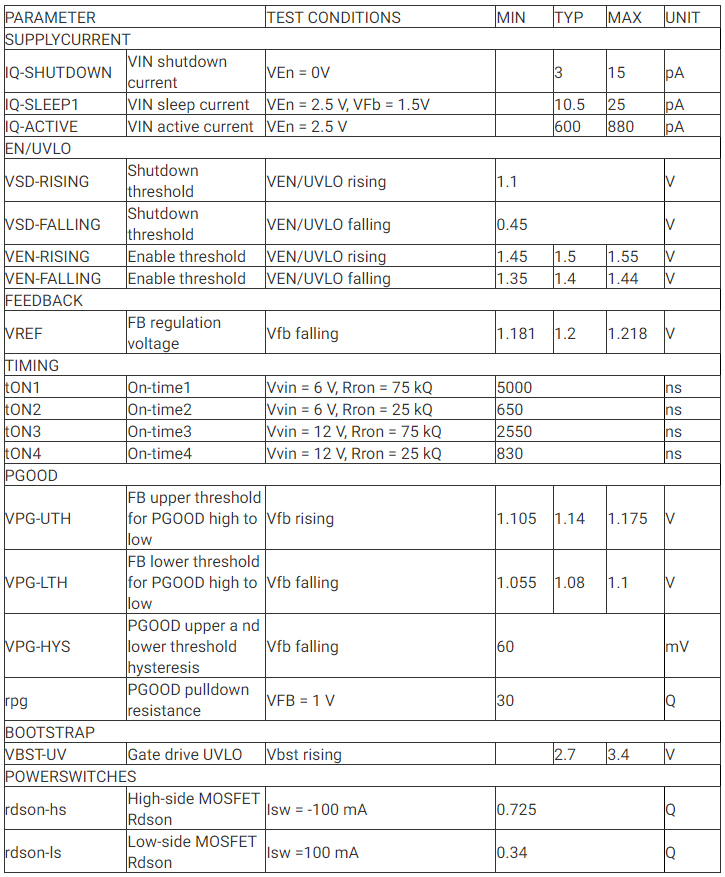

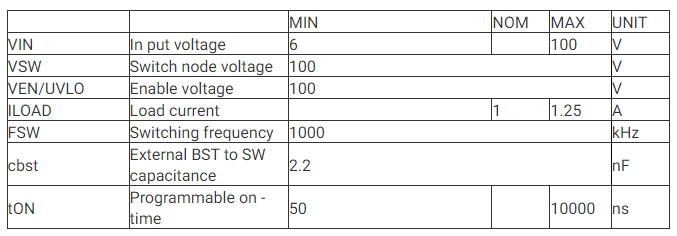

NA LM5164QDDARQ1 technical specifications, attributes, parameters and parts with similar specifications to NA LM5164QDDARQ1.

• Appliances, power and garden tools

• High-cell-count battery packs (E-Bike, E-Scooter)

• Motor drives, drones, telecom

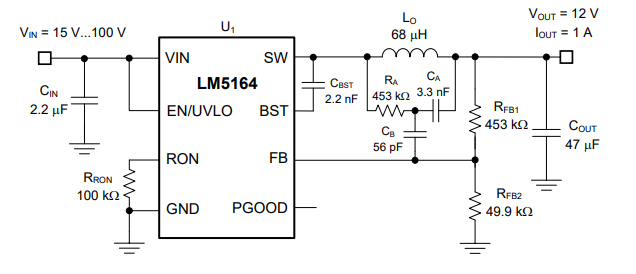

LM5164QDDARQ1 Typical Application Circuit
