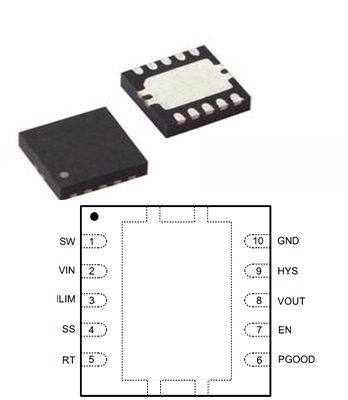

LM5166DRCR: Datasheet, Pinout, 10-VFDFN, high efficiency

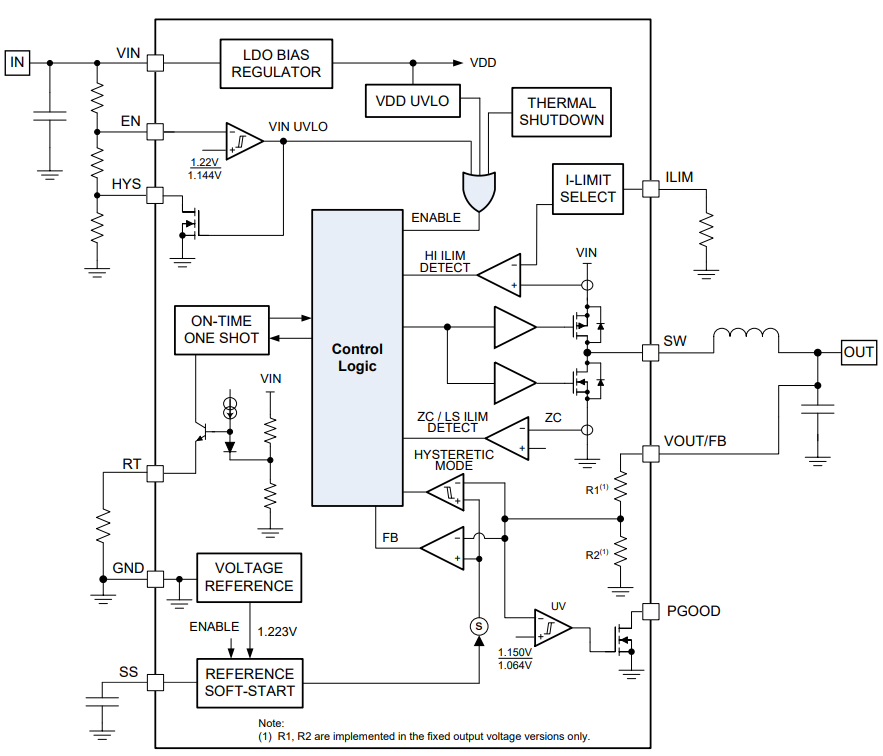

The LM5166DRCR is a 3-V to 65-V ultra-low IQ synchronous buck converter with great efficiency over a wide range of input voltage and load current. Up to 500 mA of output current can be provided using integrated high-side and low-side power MOSFETs at fixed output voltages of 3.3 V or 5 V, or an adjustable output voltage. The converter is intended to make implementation as simple as possible while also giving choices for optimizing performance for the target application.

For best light-load efficiency, the pulse frequency modulation (PFM) mode is chosen, or constant on-time (COT) control is chosen for a nearly constant operating frequency. Both control techniques provide outstanding line and load transient response and quick PWM on-time for high step-down conversion ratios while requiring no loop correction.

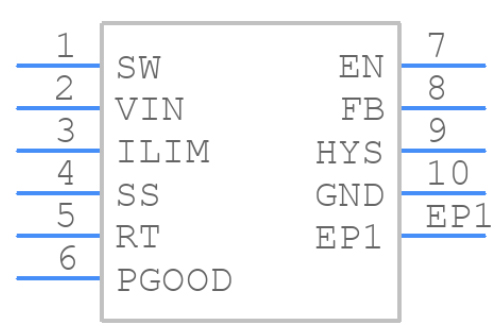

Symbol

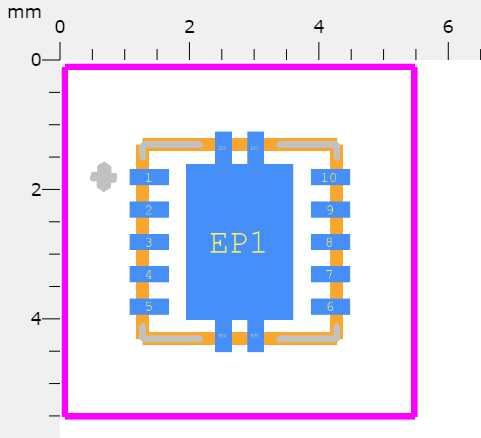

Footprint

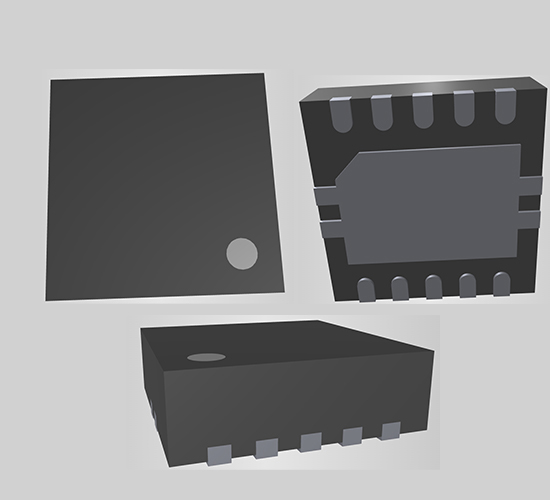

3D Model

• Wide Input Voltage Range of 3 V to 65 V

• 9.7-µA No-Load Quiescent Current

• –40°C to 150°C Junction Temperature Range

• Fixed (3.3-V, 5-V) or Adjustable VOUT Options

• Meets EN55022 / CISPR 22 EMI Standards

• Integrated 1-Ω PFET Buck Switch

– Supports 100% Duty Cycle for Low Dropout

• Integrated 0.5-Ω NFET Synchronous Rectifier

– Eliminates External Schottky Diode

• Programmable Peak Current Limit Supports:

– 500-mA, 300-mA, or 200-mA Loads

• Selectable PFM or COT Mode Operation

• 1.223-V ±1.2% Internal Voltage Reference

• Switching Frequency up to 600 kHz

• 900-µs Internal or Externally-Adjustable Soft Start

• Diode Emulation and Pulse Skipping for UltraHigh Light-Load Efficiency

• No Loop Compensation or Bootstrap Components

• Precision Enable and Input UVLO With Hysteresis

• Open-Drain Power Good Indicator

• Thermal Shutdown Protection With Hysteresis

• Pin-to-Pin Compatible With the LM5165DRCR

• 10-Pin, 3-mm × 3-mm VSON Package

• Create a Custom Regulator Design Using WEBENCH® Power Designer

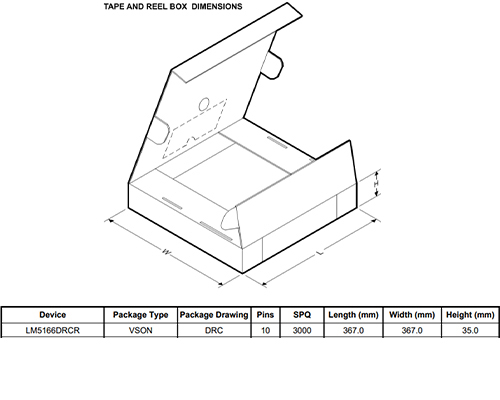

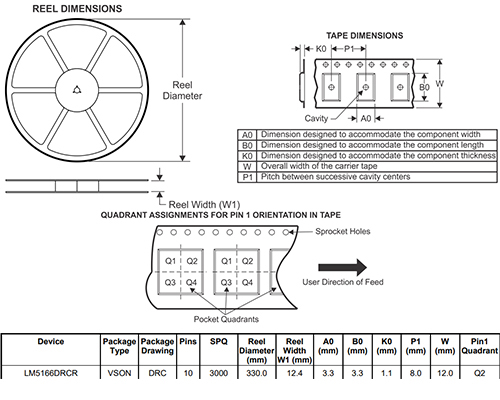

NA LM5166DRCR technical specifications, attributes, parameters and parts with similar specifications to NA LM5166DRCR.

LM5166XDRCR, LM5166YDRCR, LM5166XDRCT, LM5166DRCT

• Factory and Building Automation

• Automotive and Battery-Powered Applications

• High Voltage LDO Replacement

• Low Power Bias Supplies

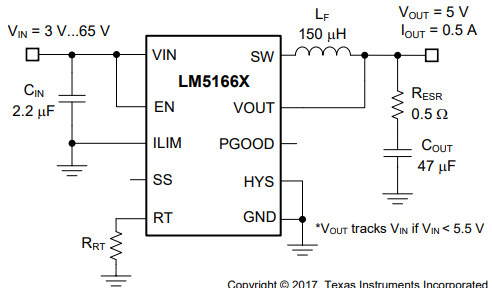

Typical COD Mode Application
