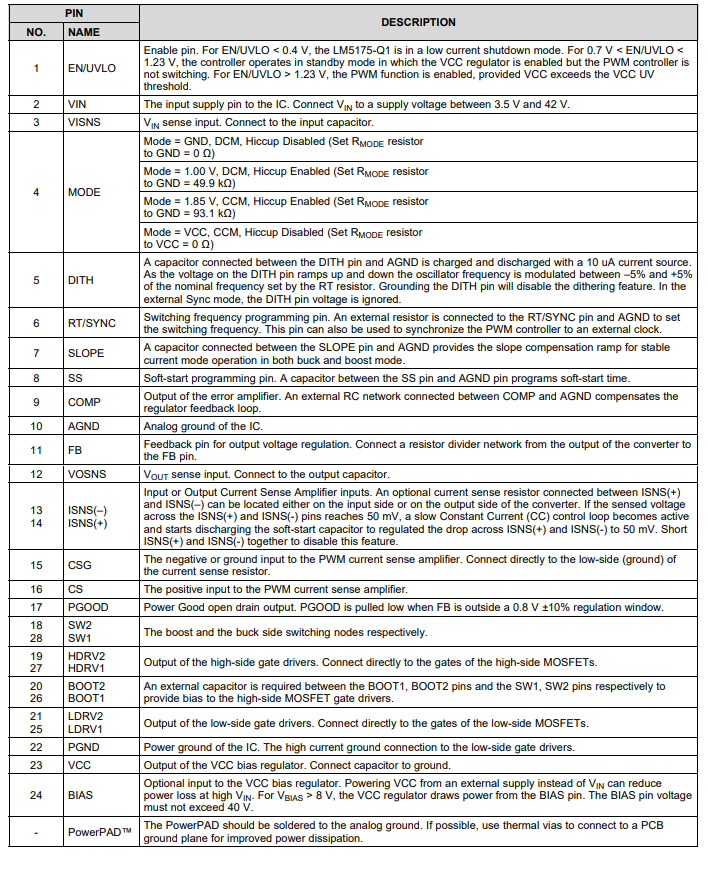

LM5175QPWPTQ1 DC/DC Controller: Pinout, Specification, and Datasheet

The LM5175-Q1 operates over a wide input voltage range of 3.5 V to 42 V (60 V maximum) to support a variety of applications.

The LM5175-Q1 employs current-mode control both in buck and boost modes of operation for superior load and line regulation. The switching frequency is programmed by an external resistor and can be synchronized to an external clock signal.

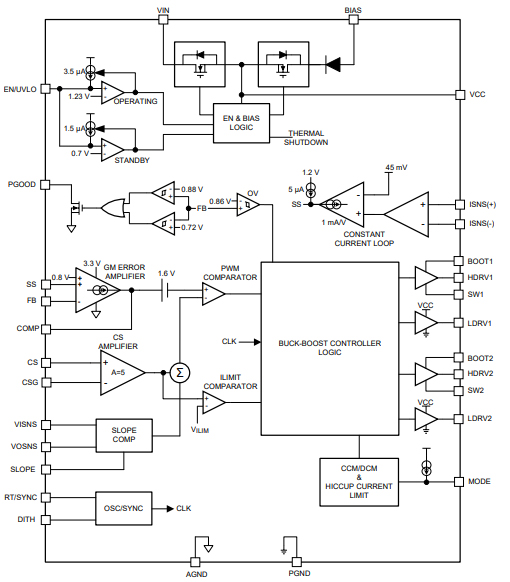

The device also features a programmable soft-start function and offers protection features including cycle-by-cycle current limiting, input Undervoltage lockout (UVLO), output overvoltage protection (OVP), and thermal shutdown. In addition, the LM5175-Q1 features selectable Continuous Conduction Mode (CCM) or Discontinuous Conduction Mode (DCM) operation, optional average input or output current limiting, optional spread spectrum to reduce peak EMI, and optional hiccup mode protection in sustained overload conditions.

• Qualified for automotive applications

• AEC-Q100 qualified with the following results:

– Device Temperature Grade 1: –40°C to +125°C ambient operating temperature range

– Device HBM ESD Classification Level 2

– Device CDM ESD Classification Level C4B

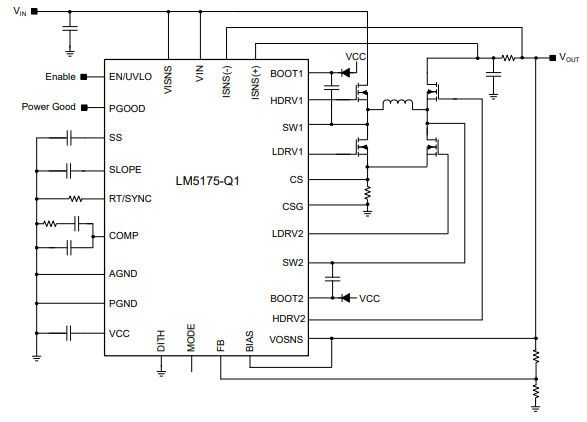

• Single inductor buck-Boost Controller for StepUp/Step-Down DC/DC Conversion

• Wide VIN Range: 3.5 V to 42 V, 60 V maximum

• Flexible VOUT Range: 0.8 V to 55 V

 •  VOUT Short Protection

 •  High-Efficiency Buck-Boost Transition

 •  Adjustable switching frequency

 •  Optional frequency sync and dithering

 •  Integrated 2-A MOSFET gate drivers

 •  Cycle-by-Cycle current limit and optional hiccup

 •  Optional input or output average current limiting

 •  Programmable input UVLO and soft-start

 •  Power good and output overvoltage protection

 •  Selectable CCM or DCM with pulse skipping

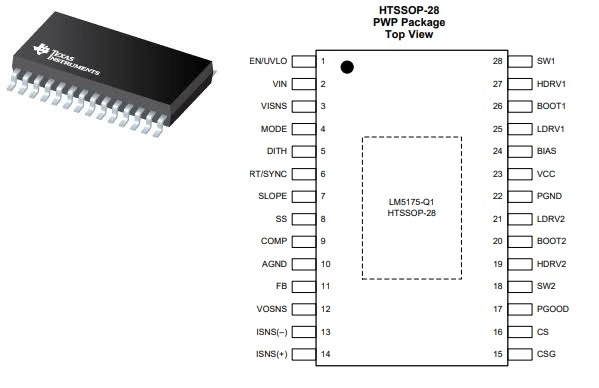

 •  HTSSOP-28 package

 •  Automotive start-stop systems

 •  Backup battery and supercapacitor charging

 •  Industrial PC power supplies

 •  USB power delivery

 •  LED lighting

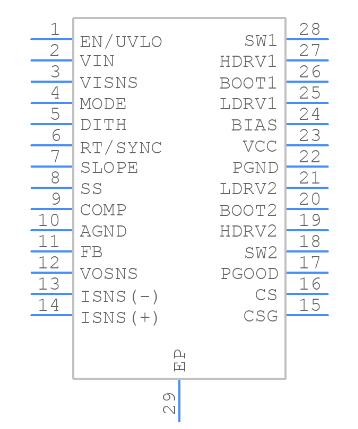

Symbol

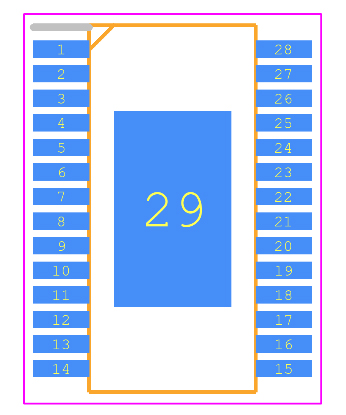

Footprint

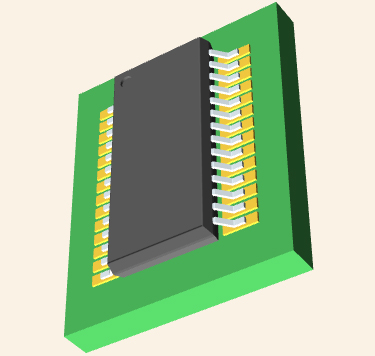

3D Model

Texas Instruments LM5175QPWPTQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM5175QPWPTQ1.
