The LM567 is a tone decoder.This article mainly introduce its price, pinout, circuit and other detailed information about Texas Instruments LM567.
LM567 Tone Decoder: Price, Pinout and Circuit
IC TELECOM INTERFACE 8DIP The LM567 is a tone decoder.This article mainly introduce its price, pinout, circuit and other detailed information about Texas Instruments LM567.
269
Jun 21, 2021
Edmund
LM567CN
9800In Stock
Min.: 1 Mult.: 1
Quick Links
LM567 Description
The LM567 is a general purpose tone decoders designed to provide a saturated transistor Resistor switch to ground when an input signal is present within the passband. The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.
LM567 Pinout
LM567 CAD Model
Symbol
Footprint
3D Model
LM567 Features
● 20 to 1 frequency range with external resistor
● Logic compatible output with 100mA current sink capability
● Adjustable bandwidth from 0 to 14%
● High suppression of out-of-band signals and noise
● Immunity to false signals
● Highly stable center frequency
● The center frequency can be adjusted from 0.01 Hz to 500 kHz
Specifications
Texas Instruments LM567CN technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM567CN.
LM567CN Tech Specifications
LM567CN Tech Specifications
Texas Instruments LM567CN technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM567CN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Max Power Dissipation | 1.1W | |
| Voltage - Supply | 4.75V~9V | |
| Terminal Position | DUAL | |
| Supply Voltage | 5V | |
| Terminal Pitch | 2.54mm | |
| Frequency | 10mHz | |
| Base Part Number | LM567 | |
| Function | Tone Decoder | |
| Operating Supply Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Circuits | 1Circuit | |
| Operating Supply Current | 12mA | |
| Nominal Supply Current | 12mA | |
| Logic Function | Decoder | |
| Input Capacitance | 25pF | |
| Width | 7.62mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |

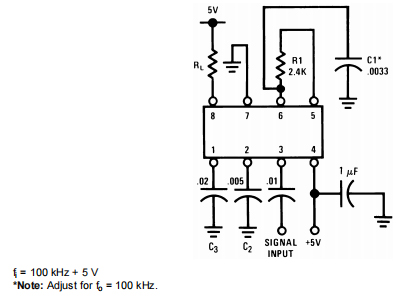

LM567 Test Circuit
AC Test Circuit
LM567 Functional Block Diagram
LM567 Simplified Diagram
LM567 Alternatives
LM567 Applications
● Key tone decoding
● Precision oscillator
● Ultrasonic control
● Frequency monitoring
● Broadband FSK demodulation
● Carrier current remote control
● Communication paging decoder
LM567 Package
LM567 Layout Example
LM567 Manufacturer
Texas Instruments (TI) is an American technology company headquartered in Dallas, Texas, which designs and manufactures semiconductors and various integrated circuits, and sells them to electronic designers and manufacturers worldwide. It is one of the top 10 semiconductor companies in global sales. The company focuses on the development of analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and educational technology products, including calculators, microcontrollers and multi-core processors. As of 2016, the company has 45,000 patents worldwide.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments LM567CN.
LM567CN Documents
LM567CN Documents
Download datasheets and manufacturer documentation for LM567CN
Datasheets
LM567CN-Texas-Instruments-datasheet-44632179.pdf
LM567CN-Texas-Instruments-datasheet-12524484.pdf
LM567CN-National-Semiconductor-datasheet-53016.pdf
LM567CN.-National-Semiconductor-datasheet-62261.pdf
LM567CN-National-Semiconductor-datasheet-93130.pdf
PCN Obsolescence/ EOL
SnPb MDIP Devices 11/Feb/2014
Frequently Asked Questions
1.What is the difference between LMC567 and LM567? Can they be used universally?
It cannot be universal, the principle is similar, but the formula for calculating the center frequency is different, because the VOC in the LMC567 is divided into the detector, and the LM567 VOC is not divided into the detector directly. And LMC567 power supply range is wider
2.Which simulation software has the LM567 chip?
Not in EWB, definitely in Proteus, and in Multisim.
3.What are the functions of the two chips, CM8870 and LM567?
(1)The LM567 tone decoder contains a phase-locked loop, which can be widely used in various circuits such as BB machines and frequency monitors.
(2)The CM8870 is a DTMF and decoding chip, which realizes the decoding function of dual-tone multi-frequency signals on the communication line. This chip will detect the heard dual-tone multi-frequency signal is converted into a binary four-bit code
4.What’s the working principle of LM567?
It is used for frequency selection below 500KHz. Appropriate selection of R and C to determine the required center frequency. When the input signal frequency is equal to the center frequency, the output is valid low level.
5.Which storehouse does LM567 in Protel?
First of all, you need to know which component is from, and then assign it to the library to find it. The real components of PROTEL are classified by manufacturers. If you can't find it in the library, it is normal, you need to take a caliper to measure and draw.
