IC REG LIN POS ADJ 150MA 14DIP The LM723 is a monolithic integrated programmable voltage regulator.
11572
Jul 19, 2021
Andrew Pound
2
LM723 Regulator with Voltages and Maths UEENEEH138A TAFE NSW
IC REG LIN POS ADJ 150MA 14DIP
The LM723 is a monolithic integrated programmable voltage regulator. This article covers its pinout, equivalent, circuit and more detailed information about LM723.
LM723N
The LM723 is a monolithic integrated programmable voltage regulator, assembled in 14-lead dual in-line plastic and SO-14 micro package.
Symbol

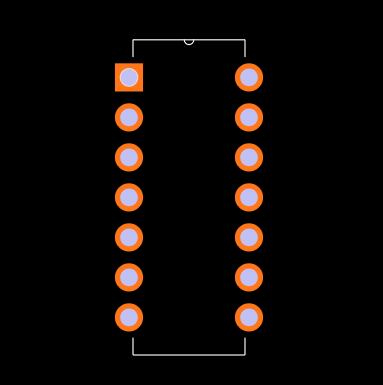

Footprint
3D Model
It is an adjustable voltage regulator which operates in both positive or negative supply operation.
Voltage can be adjusted from 2V to 37V.
The maximum input voltage is 40V.
Output current is 150mA without an external pass transistor. It can be increased to 10A by adding transistors externally.
It has a low standby current gain, very low-temperature drift, and high ripple rejection.
The load and line regulation is 0.03% and 01%.
It has a built-in fold back current limiting.
Its performance is ensured over -55 °C to +125 °C.
STMicroelectronics LM723N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM723N.
STMicroelectronics LM723N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM723N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300, 7.62mm) | |
| Number of Pins | 14Pins | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.54mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | LM723 | |
| Pin Count | 14 | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Voltage - Input (Max) | 40V | |
| Output Voltage | 37V | |
| Output Type | Adjustable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Configuration | Positive | |
| Voltage - Output (Min/Fixed) | 2V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 9.5V | |
| Protection Features | Over Current | |
| Current - Quiescent (Iq) | 5mA | |
| PSRR | 86db ~ 74dB (100Hz ~ 10kHz) | |
| Load Regulation-Max(%) | 0.6% | |
| Width | 7.62mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Basic high and low voltage regulators can be designed by connecting appropriate external components with this IC.
Linear, switching and floating regulators.
Series and shunt regulators.
Basic Low Voltage Regulator (VO = 2 to 7V)
Basic High Voltage Regulator (VO = 7 to 37V)
LM723 is an adjustable voltage regulator used for shunt regulator, current regulator, and temperature controller. It can able to provide a higher range of output voltage and current up to 10A by simply adding a series pass transistor with it, with having a wider range of operating temperature so the IC able to withstand for long. Also, it is able to use as either linear or switching type regulator. But this IC is specially designed for series regulator application.
To use this IC for the different range of required output voltage, you can proceed with various circuits available in LM723 datasheet with having your needed output range. For getting an output voltage range from 2v to 7v you can use the circuit below, which is a Basic Voltage Regulator circuit using LM723 voltage regulator IC.
To find the value of resistance R3 you can use the formula below:
R3 = (R1*R2) / (R1+R2)
You can adjust the voltage by using the potentiometer in the circuit to get the required regulated output voltage. For finding the value of output voltage for this circuit you can use the formula below:
Vout = Vref * (R2 / R1 + R2)
Founded in 1987, STMicroelectronics is a multinational manufacturing industry of electronics and semiconductors, who is headquartered in Geneva, Switzerland. Also,it is the leading industry of semiconductor chip maker of Europe.
Download datasheets and manufacturer documentation for STMicroelectronics LM723N.
Download datasheets and manufacturer documentation for LM723N
