Introduction to LM741 IC and Op-Amp equivalent Circuit
IC OPAMP GP 1 CIRCUIT 8SOIC
The LM741CM is a general purpose operational amplifier which features improved performance over industry standards.
LM741CM Operational Amplifier: Datasheet, Schematic Diagram, and Applications
IC OPAMP GP 1 CIRCUIT 8SOIC The LM741CM is a general purpose operational amplifier which features improved performance over industry standards.
140
Aug 26, 2021
Kitty Wagner
LM741CM
5In Stock
Min.: 1 Mult.: 1
Quick Links
LM741CM Description
The LM741CM is a general-purpose operational amplifier that features improved performance over industry standards. The LM741CM offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.
The LM741C/LM741E are identical to the LM741/LM741A except that the LM741C/LM741E have their performance guaranteed over a 0˚C to +70˚C temperature range, instead of −55˚C to +125˚C.

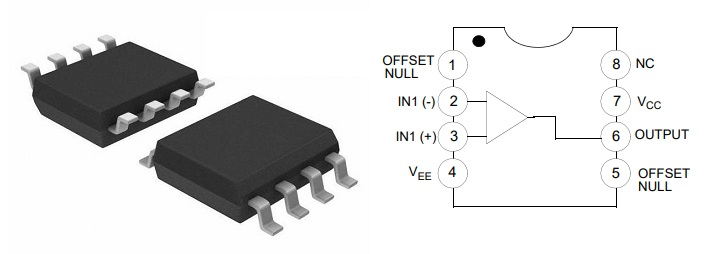

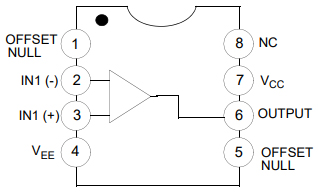

LM741CM Pinout
LM741CM CAD Model

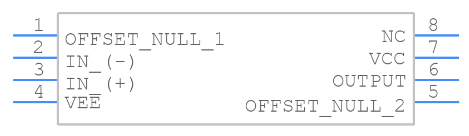

Symbol

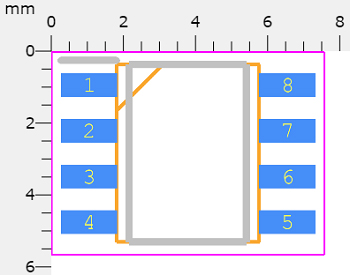

Footprint

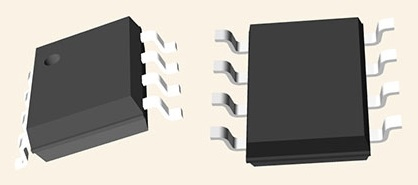

3D Model
LM741CM Features
-
Product Category: Operational Amplifier
-
Package Type: 8-SOIC (8-SOP)
-
Supply Voltage: ±18 V
-
Typical Input Offset Voltage: 2 mA
-
Typical Input Bias Current: 80 nA
-
Typical Supply Current: 1.5 mA
-
Slew Rate: 0.5 V/µs
-
Power Dissipation: 500 mW
-
Operating Temperature: 0°C to 70°C
LM741CM Advantages
-
Short circuit protection
-
Excellent temperature stability
-
Internal frequency compensation
-
High input voltage range
-
Null of offset
Specifications
ON Semiconductor LM741CM technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM741CM.
LM741CM Tech Specifications
LM741CM Tech Specifications
ON Semiconductor LM741CM technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM741CM.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Number of Elements | 1 Element | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| Published | 2001 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Base Part Number | LM741 | |
| Operating Supply Current | 1.5mA | |
| Nominal Supply Current | 2.8mA | |
| Power Dissipation | 500mW | |
| Slew Rate | 0.5V/μs | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 80nA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply, Single/Dual (±) | 10V~36V ±5V~18V | |
| Output Current per Channel | 25mA | |
| Input Offset Voltage (Vos) | 6mV | |
| Gain Bandwidth Product | 1.5MHz | |
| Voltage Gain | 106.02dB | |
| Power Supply Rejection Ratio (PSRR) | 77dB | |
| Voltage - Input Offset | 2mV | |
| RoHS Status | RoHS Compliant |
LM741CM Internal Block Diagram

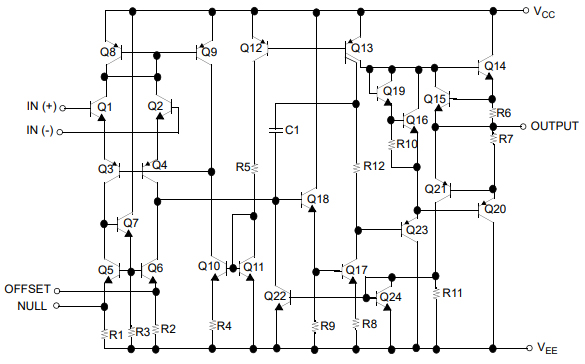

LM741CM Schematic Diagram

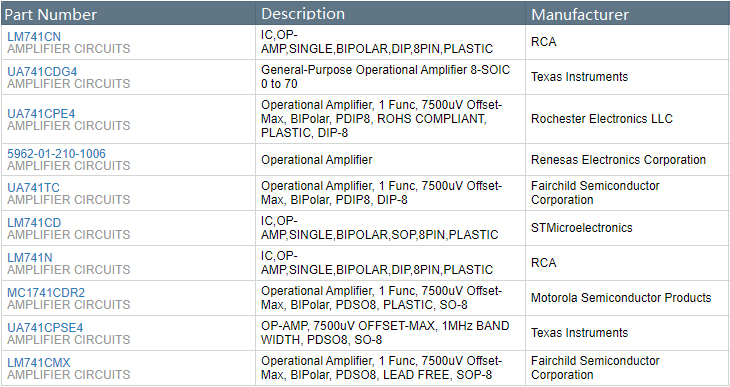

LM741CM Functional Alternatives
Where to use LM741CM
The LM741CM is a general-purpose operational amplifier that features improved performance over industry standards. It is intended for a wide range of analog applications. The high gain and wide range of operating voltage provide superior performance in integrator, summing amplifier, and general feedback applications. The LM741CM can operate with a single or dual power supply voltage. The LM741CM is the direct, plug-in replacement for the 709C, LM201, MC1439, and 748 in most applications.
LM741CM Applications
-
Comparators
-
Multivibrators
-
DC Amplifiers
-
Summing Amplifiers
-
Integrator or Differentiators
-
Active Filters
LM741CM Application Circuit

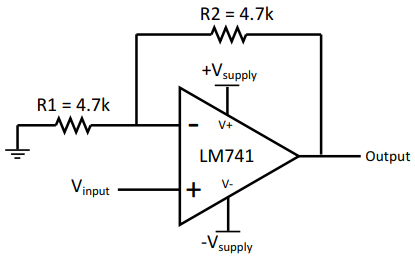

LM741CM Noninverting Amplifier Circuit

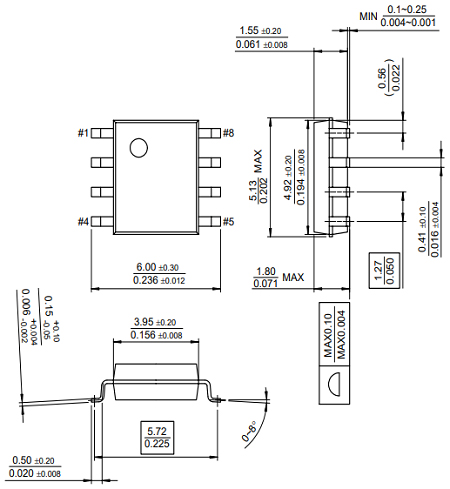

LM741CM Package
LM741CM Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor LM741CM.
LM741CM Documents
LM741CM Documents
Download datasheets and manufacturer documentation for LM741CM
ReachStatement
ON-Semiconductor-company-79.pdf
Frequently Asked Questions
1.What is LM741CM?
The LM741CM is a general-purpose operational amplifier that features improved performance over industry standards. The LM741CM offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.
2.How does LM741 work?
So the LM741, as in any case, needs power in order to operate. This power is placed in the terminals, V+ and V-. V+ receives positive voltage and V- is either connected to ground or receives negative voltage. When the inverting input voltage is greater than the noninverting input voltage, the output will be V+.
3.What is the difference between LM358 and LM741?
Two commonly used opamps are LM741 & LM358. The difference between LM358 & LM741 is, LM358 is newer and has two OP-AMP on-chip while in 741 only one OP-AMP is present. Both the IC's have 8 pins.
FAQ
1.What is LM741CM?
The LM741CM is a general-purpose operational amplifier that features improved performance over industry standards. The LM741CM offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.
2.How does LM741 work?
So the LM741, as in any case, needs power in order to operate. This power is placed in the terminals, V+ and V-. V+ receives positive voltage and V- is either connected to ground or receives negative voltage. When the inverting input voltage is greater than the noninverting input voltage, the output will be V+.
3.What is the difference between LM358 and LM741?
Two commonly used opamps are LM741 & LM358. The difference between LM358 & LM741 is, LM358 is newer and has two OP-AMP on-chip while in 741 only one OP-AMP is present. Both the IC's have 8 pins.
