LM75 Temperature Sensor: Feature, Application and Datasheet

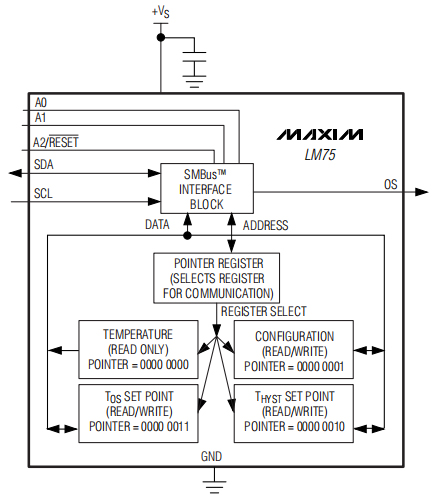

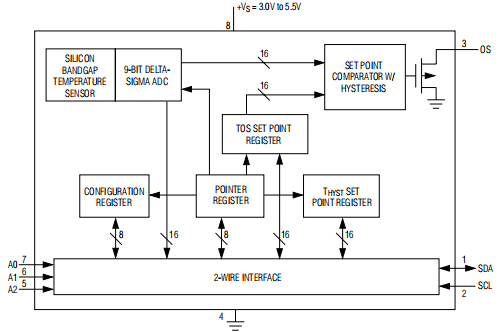

LM75 temperature sensor includes a delta-sigma Analog-to-digital converter and digital over-temperature detector. The host can query LM75 through it The I2C interface reads the temperature at any time. This Open drain overheat output (OS) sink current When the programmable temperature limit is exceeded. The OS output operates in one of two modes, comparator or interrupt. Host control temperature Time to alarm (TOS) and hysteresisv Temperature below the alarm condition Effective (THYST). In addition, the host can read the TOS and THYST registers of the LM75. Address of LM75 Three pins are set to allow multiple devices to work On the same bus. Power-on is in comparator mode, with TOS = +80°C and THYST = +75°C are the default values. 3.0V To 5.5V supply voltage range, low supply current, and The I2C interface makes the LM75 an ideal choice for many thermal management and protection applications.

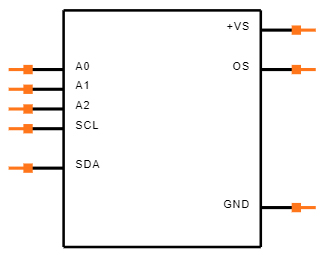

Symbol

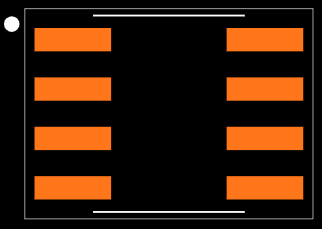

Footprint

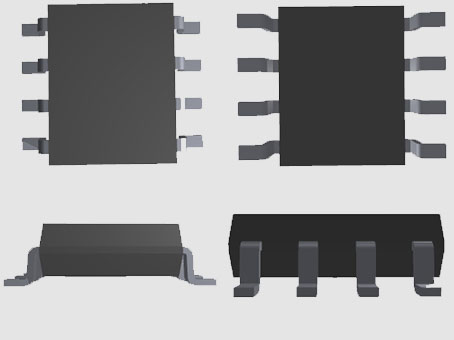

3D Model

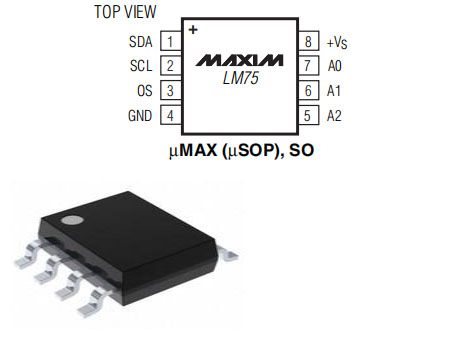

♦ SO (SOP) and µMAX® (µSOP) packages

♦ I2C bus interface

♦ Independent open-drain OS output as Interrupt or comparator/thermostat input

♦ Register readback capability

♦ Power-on default setting allows independent operation as a thermostat

♦ 3.0V to 5.5V power supply voltage

♦ Low working power supply current 250µA (typical value), 1mA (Maximum)

♦ 4µA (typical value) shutdown mode can minimize power consumption consume

♦ Up to eight LM75s can be connected to a single bus

♦ Pins and/or registers and Maxim sensors with improved performance (including MAX7500, MAX6625, MAX6626, DS75LV, and DS7505

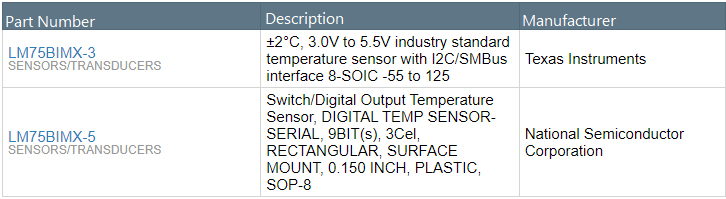

Maxim Integrated LM75BIM-3+ technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated LM75BIM-3+.

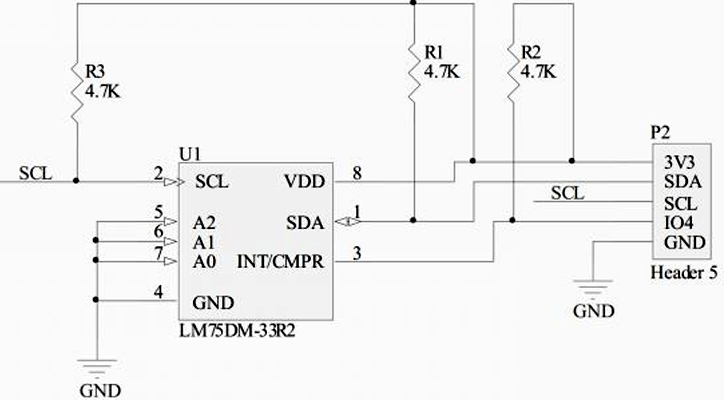

LM75 Temperature Sensor Module consists of five pins i.e. VCC, GND, OS, SCL, and SDA. This module is pin-compatible with Banana Pi so you can directly mount it on Banana Pi. The internal circuit diagram of this module is given below. SCL and SDA pins are connected through 4.7K ohm pull-up resistors.

◆ Thermal system management

◆ Thermal Protection

◆ Test equipment

◆ Computers and office electronics

Maxim Integrated is a US listed company that designs, manufactures and sells analog and mixed-signal integrated circuits. Maxim Integrated develops integrated circuits (ICs) for the automotive, industrial, communications, consumer, and computing markets. The company is headquartered in San Jose, California, with design centers, manufacturing facilities, and sales offices around the world.
