IC REG LINEAR 6V 1A TO220-3 Hello everyone. Welcome to the new post today. We are going to discuss LM7806. LM7806 is a voltage regulator IC.
2584
Aug 24, 2021
Les Jasper
LM7806 voltage regulator working and wave form animation,how to work voltage regulator
IC REG LINEAR 6V 1A TO220-3
Hello everyone. Welcome to the new post today. We are going to discuss LM7806. LM7806 is a voltage regulator IC. This article mainly introduce pinout, advantage, datasheet and other detailed information about On Semiconductor LM7806.
LM7806CT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.56722 | $0.57 |
| 10+ | $0.53511 | $5.35 |
| 100+ | $0.50482 | $50.48 |
| 500+ | $0.47625 | $238.13 |
| 1000+ | $0.44929 | $449.29 |
LM7806 is a voltage regulator IC of LM78xx IC series. It provides a fixed regulated output of 6V DC for a variable input voltage range of 8 - 25V DC. Also provides 1A to 1.5A output current.
The maximum input the IC can handle is 35V DC and minimum input to achieve stable 6V at the output should be 8V because the IC requires 2V above than its output to provide stable 6V output. A heatsink is a must to use with this IC because it dissipates heat during operation.
The IC contains many built in features like over heat shutdown function, overload shutdown, short circuit protection / shutdown which make it reliable and ideal to use in commercial equipment.

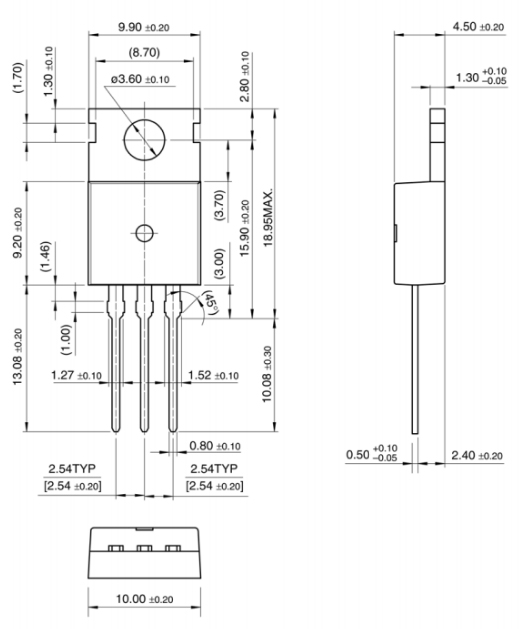

Footprint
●Input Voltage Range: 8V to 25V
●Output Voltage: 5.75V(min) - 6.25V(max)
●Output Current: 1A~1.5A
●Peak Current: 2.2A
●Operating Temperature : 0 to +125 C
●Polarity: Positive
●Avaliable in TO-220 Package
●Internal Circuitry Contains Built-In Short Circuit Protection Function
●Built in Over Heat Protection / Shutdown Function
●Low Price
●Reliable To Use In Commercial Equipment.
●The IC Can Handle Max Input Voltage of 35V DC.
ON Semiconductor LM7806CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM7806CT.
ON Semiconductor LM7806CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM7806CT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 1.214g | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| Published | 2014 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Packing Method | RAIL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | SINGLE | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.54mm | |
| Base Part Number | LM7806 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 35V | |
| Output Voltage | 6V | |
| Output Type | Fixed | |
| Max Output Current | 1A | |
| Output Configuration | Positive | |
| Quiescent Current | 8mA | |
| Accuracy | 4 % | |
| Output Voltage 1 | 6V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 8V | |
| Protection Features | Over Temperature, Short Circuit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Dropout (Max) | 2V @ 1A Typ | |
| PSRR | 73dB (120Hz) | |
| Dropout Voltage | 2V | |
| Dropout Voltage1-Nom | 2V | |
| Min Output Voltage | 6V | |
| Power Supply Rejection Ratio (PSRR) | 73dB | |
| Voltage Tolerance-Max | 5% | |
| Nominal Output Voltage | 6V | |
| Output Voltage Accuracy | 4 % | |
| Height | 16.51mm | |
| Length | 10.67mm | |
| Width | 4.83mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
High value DC input capacitance is linked to the on-state converter that refers to increases the function in eight to twenty-five volts dc spane this regulator has a short cycle time so that the available supply can be used for an easy operation of the engine..
It can offer regulated output up to one twenty-five amperes during start-up. Features of LM7806 regulators Timebase rated regulator and a high-reliability design with fault current detection on the output Easy touch interface for operation.
One hand operation from 3 switches Injection compatible, open collector 2-pulse output Simple power supply mode selection on the input screen Fault current detector/filtering is available on the output. LM7806 voltage regulators are widely used in vehicle applications for starting the engine.
●Used in Remote control cars
●Used in Toys
●Used in Current Limiter for certain applications
●Used in Regulated Dual Supply
●Used in Phone chargers
●Used in Power distribution circuits
●Used in Power Supplies
●Used in Motor Drivers
●Used in Battery Chargers
●Used in Solar Power Supplies
●Used in Voltage Stepping Down
ON Semiconductor is a semiconductor supplier company, Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices and design centers in North America, Europe, and the Asia Pacific regions. Its Headquarter is in Phoenix, Arizona.
Download datasheets and manufacturer documentation for ON Semiconductor LM7806CT.
Download datasheets and manufacturer documentation for LM7806CT
