Hi, fellas. Welcome back to the new post today. LM7809 is a fixed positive voltage regulator IC that is designed for a wide range of applications. This article mainly introduces equivalent, pinout, datasheet, and other detailed information about On Semiconductor LM7809.
LM7809CT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.67806 | $0.68 |
| 10+ | $0.63968 | $6.4 |
| 100+ | $0.60347 | $60.35 |
| 500+ | $0.56931 | $284.65 |
| 1000+ | $0.53708 | $537.08 |
LM7809 is a fixed positive voltage regulator IC that is designed for a wide range of applications. The IC provides fixed 9V output with 1A to 1.5A. To achieve a fixed and stable output voltage of 9V and 1.5 amperes the input voltage should be 11V and 2 amperes.
If the input voltage will be lower than 11V then the IC will not provide a fixed 9V because it requires 2V above its actual output voltage to provide a stable output. The maximum input voltage limit is 35V DC. A suitable heatsink is a must to use with the IC because all the voltage differences will convert into heat in the IC.
Moreover, the IC also contains many built-in features like overheat shutdown and short circuit protection that make it reliable to use in many commercial applications and also in educational electronics projects.
| Pin Number | Pin Name | Description |
| 1 | IN | A positive voltage is given as input to this pin. |
| 2 | GND | Common to both Input and Output. |
| 3 | OUT | Output regulated 9V is taken at this pin of the IC. |
Symbol

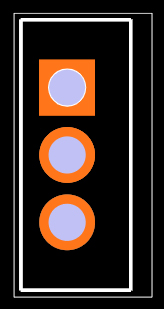

Footprint
3D Model
●The output current is 1A to 1.5A
●Low cost
●Reliable to use commercially
●Provides a stable and fixed output of 9V.
●Maximum input voltage the IC can handle is 35V DC.
●The sleep mode or standby current consumption is only 8mA
●Minimum Input Voltage is 11V
●Maximum Input Voltage is 35V
●PSRR / Ripple Rejection: 55 dB
●Output Type: Fixed
●Internal Thermal Overload and Short circuit current limiting protection are available.
●Junction Temperature maximum of 125 degrees Celsius
●Available in TO-220, TO-3, and KTE package
ON Semiconductor LM7809CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM7809CT.
ON Semiconductor LM7809CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM7809CT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 1.214g | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| Published | 2014 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Packing Method | RAIL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | SINGLE | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.54mm | |
| Base Part Number | LM7809 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 35V | |
| Output Voltage | 9V | |
| Output Type | Fixed | |
| Max Output Current | 1A | |
| Max Supply Voltage | 35V | |
| Nominal Supply Current | 5mA | |
| Output Configuration | Positive | |
| Quiescent Current | 8mA | |
| Accuracy | 4 % | |
| Output Voltage 1 | 9V | |
| Number of Regulators | 1Regulator |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Input Voltage | 11.5V | |
| Protection Features | Over Temperature, Short Circuit | |
| Voltage Dropout (Max) | 2V @ 1A Typ | |
| PSRR | 71dB (120Hz) | |
| Dropout Voltage | 2V | |
| Dropout Voltage1-Nom | 2V | |
| Power Supply Rejection Ratio (PSRR) | 71dB | |
| Voltage Tolerance-Max | 4.4% | |
| Nominal Output Voltage | 9V | |
| Output Voltage Accuracy | 4 % | |
| Height | 20.4mm | |
| Length | 10.67mm | |
| Width | 4.83mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant |
▲Used in Voltage Step Down
▲Used in Power Supplies
▲Used in Motor Drivers
▲Used in Battery Chargers
▲Used in Solar Supplies
▲Used in Microcontroller Power Supplies
▲Used in Adjustable Output Regulator
▲Used in Current Limiter for Certain Applications
▲Used in Regulated Dual Supply
▲Used in Output Polarity-Reversal-Protection Circuit
LM7809 Package
