LM7824 is a fixed-voltage integrated-circuit voltage regulator. This post will unlock its datasheet, equivalent, circuit and more details about LM7824. Welcome your RFQ!
LM7824CT
The LM7824 is a fixed-voltage integrated-circuit voltage regulator that can be used in a variety of situations. The LM7824 voltage regulator provides a simple power source for most TTL components by providing a 24V positive voltage output. Although it is intended to be used as a fixed voltage regulator, it can also be utilized with external components to provide variable voltage.
In electronic circuits, voltage regulators are fairly prevalent. For a variable input voltage, they offer a constant output voltage. The designation 7824 has two meanings: "78" indicates that it is a positive voltage regulator, and "24" indicates that it outputs 24V. As a result, our 7824 will produce a voltage of +24V.
This IC has a maximum output current of 1.5A. However, because the IC loses a lot of heat, a Heat Sink is advised for projects that use a lot of currents. For example, if the input voltage is 35V and you're using 1A, you'll need 30W (35-5) * 1. These 30 watts will be converted to heat and dispersed.
LM7824 Pinout
|
Pin Number |
Pin Name |
Description |
|
1 |
Input (V+) |
Unregulated Input Voltage |
|
2 |
Ground |
Connected to Ground |
|
3 |
Output (Vo) |
Outputs Regulated +24V |
LM7824 Symbol
LM7824 Footprint
LM7824 3D Model
24V Positive Voltage Regulator
The minimum Input Voltage is 33V
The maximum Input Voltage is 40V
Output Current: 1.5 A
Internal Thermal Overload and Short circuit current limiting protections are available.
Junction Temperature maximum of 125 degrees Celsius
Available in TO-220, TO-3 and KTE package
Use in constant +24V output regulator to power microcontrollers and sensors in most of the projects
Use in adjustable Output Regulator
Use in current Limiter for certain applications
Use in regulated Dual Supply
Use in output Polarity-Reversal-Protection Circuit
The equivalent for LM7824:
LM7806
LM7809
LM7815
LM7812
LM317
LM7905
LM7912
LM7824 Circuit
This is an example of a 7824 IC application circuit. To make this IC work, we only need two capacitors with values of 0.33uF and 0.1uF. The input capacitor is a 0.33uF ceramic capacitor that solves the input inductance problem, and the output capacitor is a 0.1uF ceramic capacitor that improves the circuit's stability. To work properly, these capacitors should be placed close to the terminals. They should also be ceramic capacitors, as ceramic capacitors are faster than electrolytic capacitors.
ON Semiconductor LM7824CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM7824CT.
ON Semiconductor LM7824CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor LM7824CT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 1.214g | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| Published | 2014 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Packing Method | RAIL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | SINGLE | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.54mm | |
| Base Part Number | LM7824 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 40V | |
| Output Voltage | 24V | |
| Output Type | Fixed | |
| Max Output Current | 1A | |
| Output Configuration | Positive | |
| Quiescent Current | 8mA | |
| Accuracy | 4 % | |
| Output Voltage 1 | 24V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 27V | |
| Protection Features | Over Temperature, Short Circuit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Dropout (Max) | 2V @ 1A Typ | |
| PSRR | 67dB (120Hz) | |
| Dropout Voltage | 2V | |
| Dropout Voltage1-Nom | 2V | |
| Power Supply Rejection Ratio (PSRR) | 67dB | |
| Voltage Tolerance-Max | 5.2% | |
| Nominal Output Voltage | 24V | |
| Output Voltage Accuracy | 4 % | |
| Height | 16.51mm | |
| Length | 10.67mm | |
| Width | 4.83mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant |

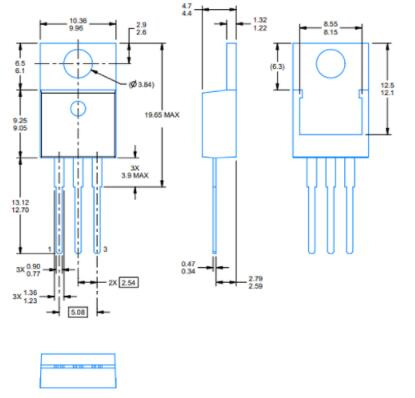

LM7824 Package
